12VDC CCTV POWER SUPPLIES WITH SURGE PROTECTION

12VDC CCTV POWER SUPPLIES WITH SURGE PROTECTION

Additional Images

33774960, 33774965, 33774990, 33775000, 33775005, 3377501533774960, 33774965, 33774990, 33775000, 33775005, 3377501533774960, 33774965, 33774990, 33775000, 33775005, 3377501533774960, 33774965, 33774990, 33775000, 33775005, 3377501533774960, 33774965, 33774990, 33775000, 33775005, 3377501533774960, 33774965, 33774990, 33775000, 33775005, 33775015

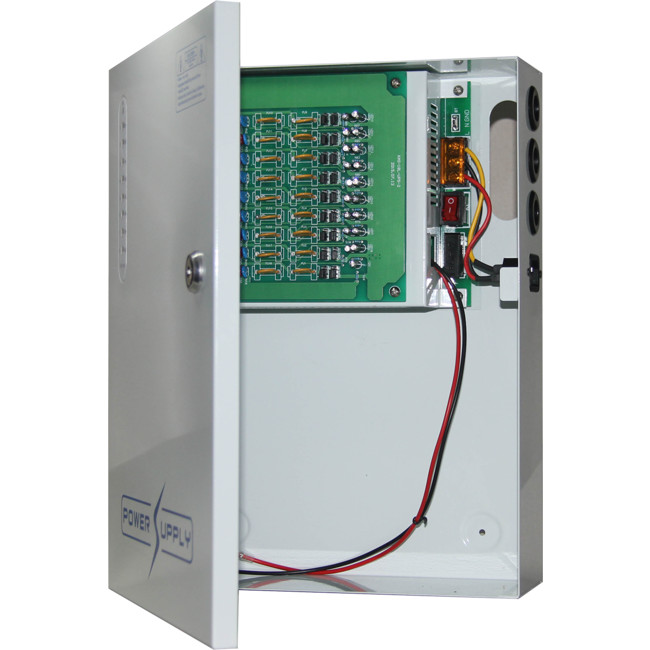

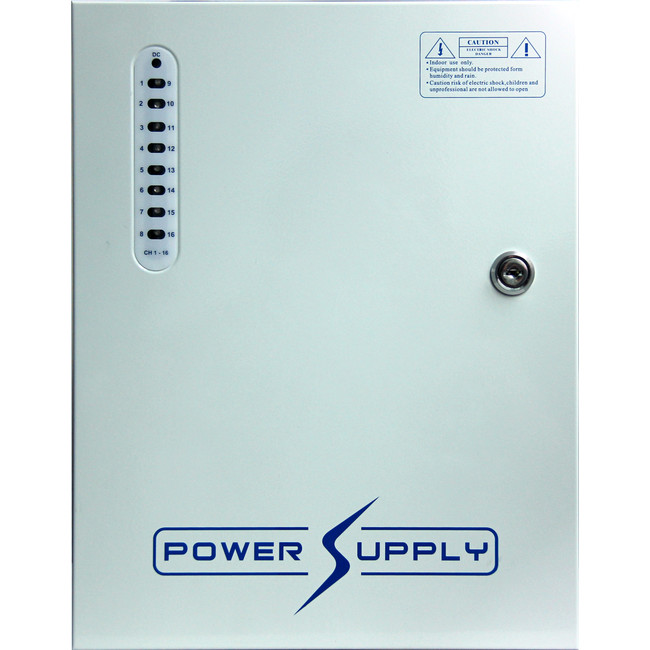

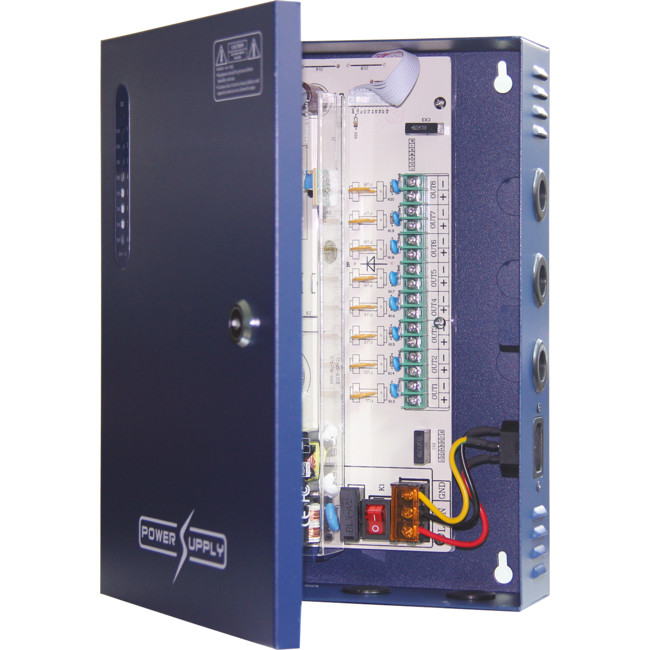

The Doss range of power supply boxes also known as power distribution boxes offer a great power solution for CCTV systems as well as other systems powered by 12VDC. It enables surveillance system installers to easily manage the power to multiple CCTV cameras at a central point and allows your camera installation to be neater. They are very simple to install, simply screw each camera’s power cable in to the terminals in the power supply box.

Features

  • Universal AC input range: 96~264VAC, 47~63Hz
  • Each channel is seperately protected. Tube fuse and PTC for each channel are selectable.
  • Short circuit, over current and overload protection
  • Models with power larger than 60W are configured with PFC function.
  • Meet the European energy efficiency standard
  • 5kA surge protection
  • High quality cooling fin to reduce power consumption
  • External LED indicators for each channel output
  • Internal AC input (screw terminal) and AC jack on the side of box (lead is not included)
  • Buit-in EMI wave filter with 100% full load burn-in test
  • Using 105°C long life electrolytic capacitors
  • Wall type blue finished shell
  • Operating temperature: -30°C~70°C (40°C 100% full load burn-in test, 70°C 70% full load burn-in test)

Complete Range

Model Code Outputs Output Voltage Output Current UPS function*
 PW0412B05 33774960 4 12V DC 5A
 PW0812B10 33774965 8 12V DC 10A
 PW1612B16 33774990 16 12V DC 16A
 PWU0412W05 33775000 4 12V DC 5A Yes
 PWU0812W10 33775005 8 12V DC 10A Yes
 PWU1612W16 33775015 16 12V DC 16A Yes

*Battery not included
