SMS38F 3-IN 8-OUT MULTISWITCH 5-2150MHZ F-TYPE SATELLITE FTA

SMS38F 3-IN 8-OUT MULTISWITCH 5-2150MHZ F-TYPE SATELLITE FTA

Additional Images

00761460

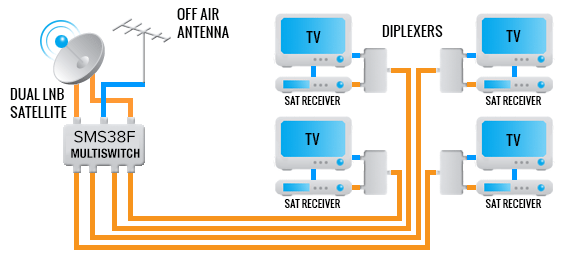

Doss SMS38F multiswitch can be used with a dual LNB to distribute satellite TV signals to multiple receivers from a single dish and LNB. It features 3 input which means it allows you to combine a dual LNB plus an input from a terrestrial antenna.

This product saves the hassle of installing several satellite antennas for your multiple television subscribers needs.

It distributes your satellite system up to 8 output receivers.

Features

  • 3 In ports (Dual LNB and Terrestrial antenna)
  • 8 Out ports

Specification

  • Frequency Range:
    • SAT : 950-2050 MHz
    • Terrestrial : 5-862 MHz
  • Gain:
    • SAT: 4dB
    • Terrestrial: -16±1 dB
  • Current consumption on each output: 60mA
  • Max current to LNB: 400mA
