ANALOGUE/AHD/IP HYBRID NETWORK DVR

ANALOGUE/AHD/IP HYBRID NETWORK DVR

Additional Images

43171110, 4317112043171110, 4317112043171110, 4317112043171110, 43171120

Discontinued

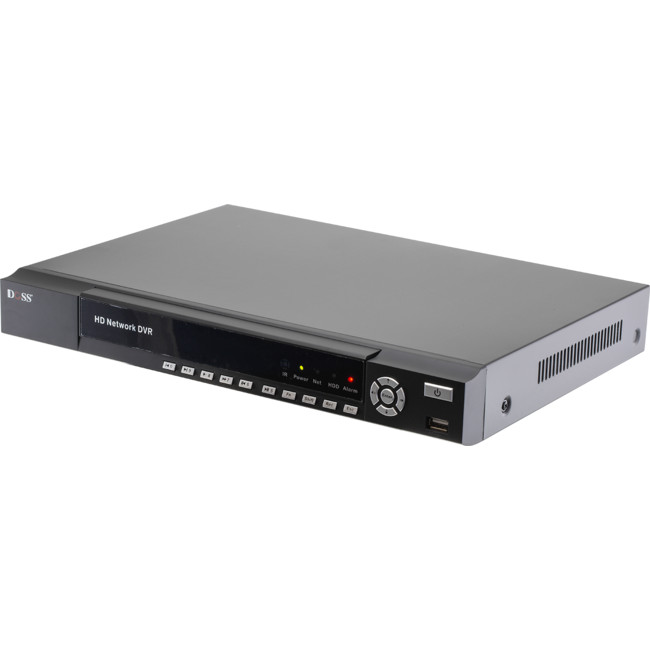

The new Doss AHD (Analogue High Defenition) series Hybrid DVR is a new HD solution for analogue CCTV systems. It works with analogue/CVBS, Analogue HD and even IP cameras. It enables you to play back video, record what your cameras see, and remotely control the system simultaneously!

AHD has its roots in standard definition analogue CCTV—using the same cables and connectors—reducing the complexity of the deploying systems and costs related to materials and maintenance. This makes it extremely easy to upgrade old systems without upgrading every piece in your system—thanks to the hybrid nature, you can use your existing analogue cameras, upgrade or add extra AHD cameras, or even networked IP cameras!

Features

  • Supports Analogue and AHD Cameras
  • Compatible with IP cameras
  • H.264 dual-stream, embedded Linux operation system
  • Simultaneous video recording, playback, remote monitoring, backup
  • BNC/VGA/HDMI sync output, supports 1080P HD preview
  • 15 times electronic zoom preview and playback video image
  • EXT alarm, bi-directional talk
  • DDNS, EMAIL, UPNP, NTP and P2P
  • WEB, Mobile viewer, Client and CMS



Specifications

Model HBD4DVR
43171110
HBD8DVR2P
43171120
Video
Video input (options) 4x 1080P (13fps)
4x 720P / 4x 960H (25fps) + 4Play
4x 720P / 4x 960H (25fps) + 4x 1080P IPC +1Play
8x 1080P/720P AHD (13fps) /
960H (25fps) + 4x 1080P/720P (IPC) (25fps) + 1Play
8x 1080P/720P AHD (13fps) / 960H (25fps) + 4Play
Video compression H.264
Video output BNC/VGA/HDMI simulaneous output
1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600
Video resolution 1920×1080, 1280×960, 1280×720, 960×576
Stream Type 4 x [1920*1080] + 4Play
4 x [1280*720] + 4Play
4 x [960*576] + 4Play
4 x [1920*1080] / IP4 [1920*1080] + 4Sub_Play/ 1 Main_Play
4 x [1280*720] / IP4 [1920*1080] + 4Sub_Play / 1Main_Play
4 x [960*576] / IP4[1920*1080] + 4Sub_Play / 1Main_Play
8x [1920*1080] + 4Play / 8x [1920*1080]
IP
4x [1920*1080] + 4 Sub Play / 1 Main Play
Video bit rate 64 – 8000Kbps
Image display 1 / 4 / 6 / 8 / 9
Snapshot Yes (BMP)
Motion detection 396 (22*18) surveyed area can be set in every screen and multi sensitivity adjustable
Audio
Audio compression G.711A
Audio input 4CH, RCA port
Audio output 1CH, RCA port
Video recording and play back
Video frame rate AHD: 13fps (PAL) / 15fps (NTSC)
Analogue/IPC: 25fps (PAL) / 30fps (NTSC)
Record mode Manual / Alarm / Motion Detection / Schedule
Local playback  1CH/4CH simultaneous playback
Search method Time, calendar, event, channel
Video playback Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback
Storage and Backup
HDD capacity 1x SATA (max 4TB)
Record saving Local HDD, network
Backup method Network backup, USB storage device, USB recorder
Function
Network protocol TCP/ IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF
Interface protocol Onvif, RTSP, I8, I9
Mobile surveillance Supports Apple, Android
Web browser support Support IE, Chrome, Firefox, Safiri
Intelligent detection Motion detection, video loss, privacy mask

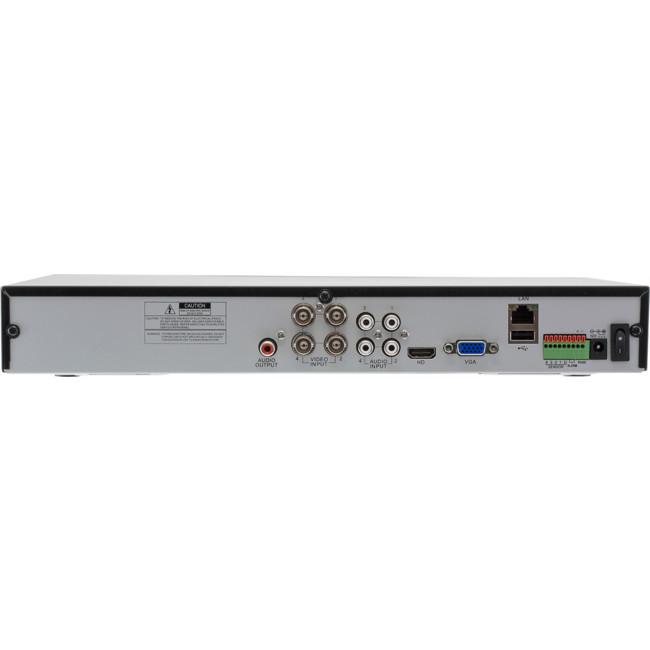

External Interface
Video input 4CH BNC port (1.0Vp-p, 75Ω)
Network interface RJ45 10M/100M adaptive ethernet port
Alarm input 4CH
Alarm output 1CH
RS-485 1x RS485 port
USB port 2x USB2.0
General
Power supply DC12V / 3A (Included)
Power consumption <10W (Without HDD)
Operation temperature –10°C ~ 55°C
Dimension(mm) 300 (L) * 209 (W)* 48.5(H)
Weight 1 kg




Short URL: https://bit.ly/2ENogns



What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
