BP4CH12V5A 4CH BALUN HUB KIT W/ BUILT IN 12VDC / 5A POWER SUPPLY

BP4CH12V5A 4CH BALUN HUB KIT W/ BUILT IN 12VDC / 5A POWER SUPPLY

Downloads


DOSS 2012 CCTV Balun Range (.pdf)

BP4CH12V5A 4CH BALUN HUB W/ BUILT IN 12VDC/5A POWER SUPPLY AND 4X VPB45 BALUNS

With the same features and abilities as the DOSS Video+Power baluns, and the convenience of a single box with built-in power supply, the BP4CH12V5A is able to supply 4x CCTV cameras with 12VDC, up to 1A each. Video received from the transmitting baluns is output via 4x Female BNC connections straight into your DVR or other recording device.

Features 4x 8P8C (RJ45) connections for UTP cable, enabling quick and simple installation. Working with the DOSS Passive Video+Power Baluns (included), the BP4CH12V5A eliminates costly and bulky coaxial cable, allowing live CCTV colour video signal transmission up to 400m (1300ft).

The superior interference rejection and low emissions of the BP4CH12V5A allow signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable infrastructure. The BP4CH12V5A has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

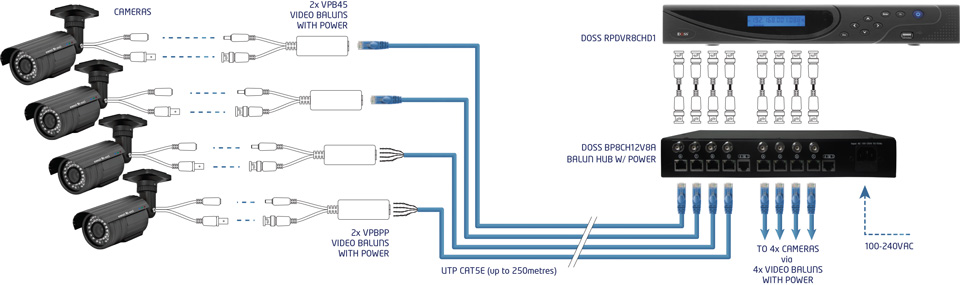

Example scenarios

4-8 cameras connected to DVR via powered hub

Many cameras to DVR via powered hub w/ long runs.

The DOSS Range of UTP Video+Power Baluns allow you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable.

The passive (non-amplified) baluns allow transmission of realtime CCTV video signals and power over cost-effective Unshielded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Sending camera power over the same twisted pair as video means less cabling, and no power supply required to be installed near to the camera. Baseband (composite) signals of any type are supported.

Applications

  • Security Monitoring System
  • Multimedia Network Teaching System
  • Medical Monitoring Display System
  • Industrial Automation Control System
  • Banking, securities, financial information display system
  • Remote Network Server Monitoring
  • Department Store Security
  • Casino Security
  • Hospitals, Airports and banks
  • School Campuses

Features

  • 4-Channel Video & Power Server (required to use with VPB45 or VPBPP Tx)
  • Receive colour video signals from up to 400m (1200ft) and
    full motion monochrome (B&W) video signals from up to 600m (1800ft)
    via Unshielded Twisted Paired (UTP) wires
  • Don’t need extra power supply for camera;
    • 12VDC/5A supply built-in
  • Input Power:
    • 176~264VAC 50Hz
    • 90~130VAC 60Hz
  • Transmit 12VDC Power up to 250m (750ft)
  • BNC male and RJ45 Jack;
  • 4-in-1 Video output via RJ45 (single UTP cable)
    • for use with DOSS VB8CH 8CH Passive Video Balun (see example above)
  • NTSC, PAL & SECAM video format compatible
  • Real-time transmission;
  • Exceptional interference rejection;
  • Built-in TVS (Transient Voltage Suppressors) for surge protection;
  • Lightning protection design Grade: III
  • Wave Filter Design, Anti-Static Design,
    • Confirm to IEC 61000-4-2:1995 Standard
  • Metal housing: Black
  • Rack Mount With Wall Mount Capability



Kit Includes

  • 1x BP4CH12V5A 4CH Balun Hub with Power
  • 4x VPB45 Passive Video+Power Balun (Transmitter only)
  • 4x BNC Plug to BNC Plug patch leads (60cm)
  • 2x Mounting brackets
    • incl 8x screws
  • 4x Self-adhesive rubber feet
  • 1x AU IEC power cord
  • Instruction manual



Specifications

Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG)
Colour: 400m (1300ft)
B&W: 600m (1950ft)
Common-mode /
Differential-mode rejection
15kHz to 5MHz 60dB typical
Impedance Coax, Male BNC 75Ω unbalanced
UTP, two coax pigtail 100Ω balanced
Attenuation 1.5dB Max typical
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 ±20 ohms
DC Loop Resistance 18Ω per 100m (52Ω per 1,000ft)
Differential Capacitance 62 pF/m max (19 pF/ft max)
Power No external power required to operate
Power input/output

Input: 176~264VAC 50Hz / 90~130VAC 60Hz
Output: Regulated 12VDC/5A

Connector Video input/output 4x Female BNC connector
Video input/output 1x 8P8C (RJ45) Video (4-in-1)
Balun input 4x 8P8C (RJ45) Video+Power
Protection Surge Protection Built-in Transient Voltage Suppressor (TVS)
Antistatic Yes
Mechanical Housing Metal
Body Colour Black
Dimensions (L*W*H) mm
Net Weight
Environmental Operating Temperature -20°~ 70°C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40°~ 150°C





Reference

Balun LEDs



Power indicator—power is being transmitted/received
Over-current—maximum current (1.5A) has been exceeded

Video and Power Balun wiring

DOSS Video &
Power Baluns
T568A T568B
Pin 1 Video White/Green White/Orange
Pin 2 Video Green Orange
Pin 3 Power – White/Orange White/Green
Pin 4 Power – Blue Blue
Pin 5 Power – White/Blue White/Blue
Pin 6 Power + Orange Green
Pin 7 Power + White/Brown White/Brown
Pin 8 Power + Brown Brown

Power over Twisted Pair: Voltage Drop Reference

Transmission
Distance
Transmission Voltage (Voltage Drop)
12VDC/0.5A
camera requirement
12VDC/1A
camera requirement
12VDC/1.5A
camera requirement
50m / 160ft 13.5V (1.5V) 15.5V (3.5V) 17.0V (5.0V)
100m / 320ft 15.5V (3.5V) 18.5V (6.5V)

22.0V (10.0V)

150m / 500ft 17.0V (5.0V) 22.0V (10.0V) 27.0V (15.0V)
200m / 650ft 18.5V (6.5V) 25.5V (13.5V) 32.0V (20.0V)
300m / 1000ft 22.0V (10.0V) 32.0V (20.0V) 42.0V (30.0V)
eg: to supply a camera that requires 12VDC/0.5A, over a run of 150m cable, you require an initial transmission voltage supply of 17.0VDC (to account for 5V voltage drop over cable)
Note: based on typical CAT5e cable (will vary on make and quality of cable)
