C6RBLU 305M CAT6 SOLID CABLE BLUE (ROLL CODE)

This is the roll code.
If buying by metre please click here

Cat-6 cable for the installation of premises wiring. Four 23AWG twisted solid copper pairs suitable for IDC terminations on patch panels and wall jacks.

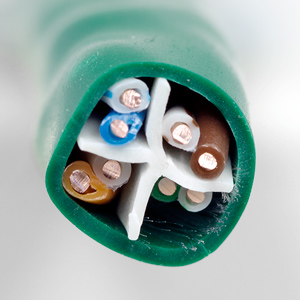

Pairs are separated by a PVC spline which maintains cable geometry and separation between pairs.

Features

  • Conductor Material: Bare Copper
  • Size 23AWG
  • Construction 1/0.58 +/- 0.02mm
  • PVC spline separates pairs and maintains cable geometry
  • Colour: Blue
  • Available as a durable 305m 5-ply pull-boxes with count-down metre-marking; simply add 305(qty) to your cart

Test Results

Specifications

  • Insulation Material HDPE
    • Thickness
      • Minimum at any point: 0.2mm
      • Maximum Average: 0.248
      • Diameter 1.08 +/- 0.2mm
    • Colours
      • Blue + White-Blue
      • Orange + White-Orange
      • Green + White-Green
      • Brown + White-Brown
  • Elongation Minimum 300%
  • Tensile Strength Minimum 1.682 Kg/mm sq
  • Sheath Material PVC
    • Colour: Blue
    • Thickness:
      • Minimum at any point: 0.46mm
      • Maximum Average: 0.58mm
      • Diameter 6.4 +/- 0.3mm
  • Elongation: Minimum 100%
  • Tensile Strength: Minimum 1.407 Kg/mm sq
  • Aging @ 100 deg C for 168 Hours:
    • Minimum elongation retention: 50%
    • Minimum tensile strength retention: 75%
  • Marking N692
  • Flame Test Meets AS/ACIF S008:2001
  • Pair Separator Separate “+” Moulding
