DM30AHDW5M DOME 4-IN-1 2.8-12MM LENS 5MP 20M IR ANALOG HD CAMERA – WHITE
Features
Please note this new 5MP feature is only compatible with HBD16DVRV3. Due to the limitation of the hardware, it is not compatible with HBD4DVRV3 and HBD8DVRV3 at this stage. Refer to FAQ how to set it up.
- AHD, TVI-HD, CVI-HD, CVBS 4 in 1 camera
- Adopt low illumination1/2.7" 5MP CMOS image sensor
- 2.8-12 mm lens
- Video coaxial transmission distance up to 500 m
- OSD can select AHD CVI-HD TVI-HD or CVBS standard definition analog signal output mode
- Support D-WDR, 2D NR
Specifications
Specifications
| Sensor | 1/2.7" 5 Mega pixels CMOS |
| Effective pixels | 2592(H) × 1944(V) |
| Video output | 2560*1440@25/30fps;2592*1944@20fps/12.5fps |
| Resolution | 1280H(CVBS output) |
| Min. Illumination | 0 Lux (IR ON) |
| Sync System | Internal |
| Lens | 2.8-12mm F14 Lens , standard ICR module |
| Electronic Shutter | Auto/ Manual (X30~1/50000),FLK |
| S/N Rate | =38db(AGC OFF) |
| Video output | 1.0Vp-p complex video output, 75O |
| Output model | PAL/NTSC adjustable |
| OSD menu | |
| White balance | ATW(default) |
| NR | 2DNR, OFF |
| Image adjustable | Brightness, sharpness, AGC |
| DWDR | AUTO/ON/ OFF |
| BLC | / |
| AGC | 1~15 |
| Day&night switch | Auto, EXT, B/W, Color |
| Mirror | Horizontal/ vertical/ rotation |
| Lens shading compensation | OFF/ON |
| DPC | Auto/ Manual/B/W |
| OSD menu | 13 languages: ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JPN |
| Four in one output | CVBS 1280H/AHD 4M/AHD 5M/CHD 4M/THD 4M/THD 5M |
| GENERAL | |
| Transmission distance | 75-3/300m,75-5/500m |
| IR distance | 20-30m (16xF5 leds) |
| Protection grade | IP65 |
| Power supply | DC12V± 10% |
| Power consumption | <5W(IR led+board: 0.96w) |
| Operating temperature | -20°C ~ 55°C/ 0%-90% |
| Dimensions(mm) | F120*97.5 |
| Weight/PCS(g) | About 675g |
FAQ
How
to set up 5MP feature in DVR?
Go to System Setting, then Device Setting, change the Display Mode to one of the 8 Analog (2592×1944) options.
Short URL: https://bit.ly/3jwEdhb
AHD Troubleshooting
Follow the steps below, if you are having issues connecting your Doss AHD cameras to our Hybrid DVRs
- Is the power on and are the cameras connected into the DVR correctly?
- Make sure the power supply to the cameras is working too.
- Are the cameras in AHD mode or CVBS (576L) mode?

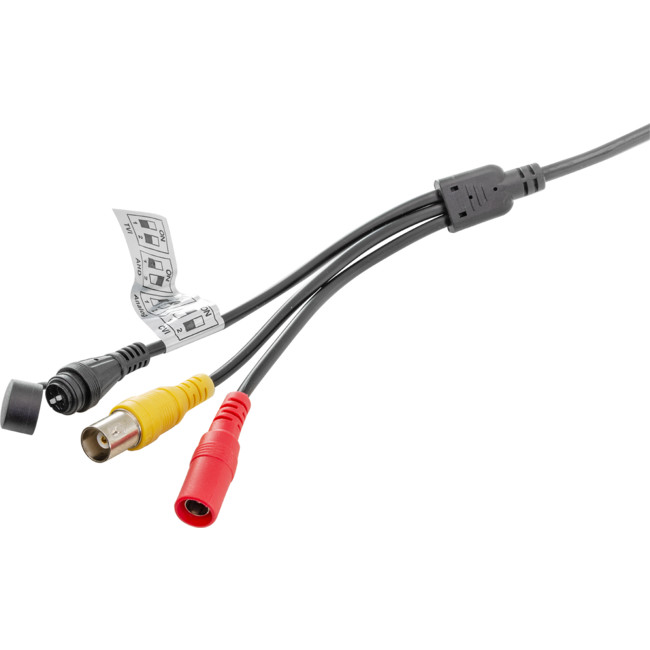

- Doss AHD cameras come out of the box configured to output CVBS by default (for maximum compatibility with various test monitors used during installation). Easily switch to AHD output by holding the OSD key to the right on the camera for about 3-4 seconds to switch. Please note: Some cameras will have an inline controller, some will have buttons on the back. See the camera description page for more info.
- Some Hybrid DVRs do NOT accept 720p or lower resolutions from analogue cameras. Make sure your DVR is able to do this.
- Are you wiring directly with RG59 + power cabling, or using CAT5/6 baluns?
- If the latter, make sure you are using a HD capable balun such as the VPB45HD.
- Does your TV/Monitor have the required inputs?
- The new range of Doss Hybrid DVRs only come with VGA and HDMI video outputs. Make sure your TV/monitor has at least one. HDMI is the recommended connection between the DVR and TV.
