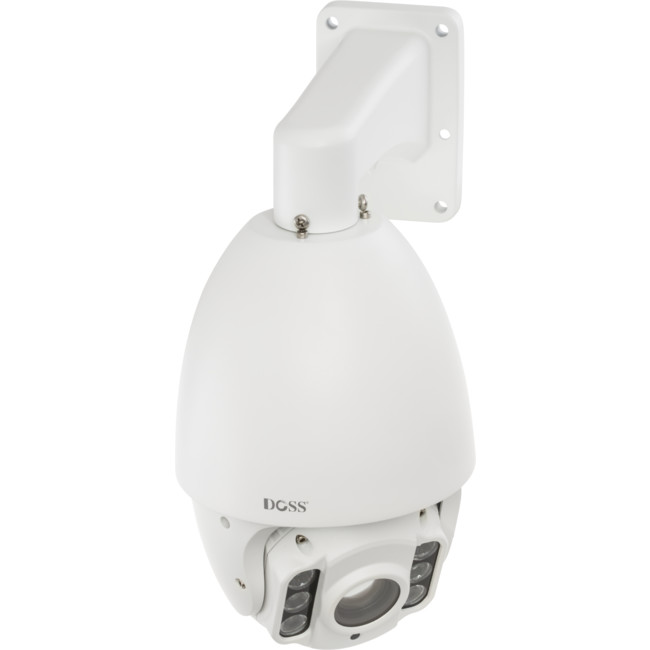

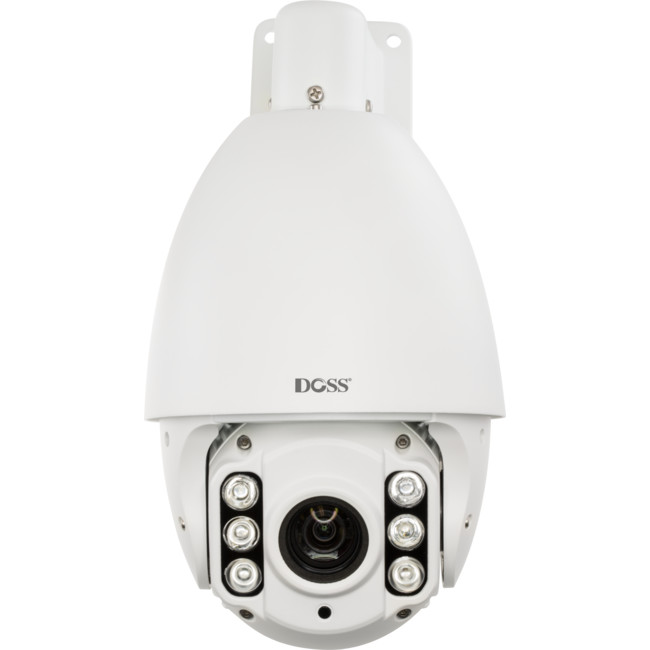

DMZ50IPW 4″ DOME 2MP 10X ZOOM 50-80M IR POE IP PTZ CAMERA – WHITE
Features
DOSS DMZ50IPW camera enables you to keep an eye on your territory 24/7!!! It has 2MP camera for clear image taking or recording as well as tilt and zoom in functions. Area scan function provides routine scanning of the areas of your choice, non-stop unless you told it to. Easy set up and easy control, powered by POE means no more hassle for wiring power cable!
- 2MP HD IR network intelligent high speed dome
- 1/2.8″ CMOS sensor
- Ambarella zoom module
- Encoding system : H.264/MJPEG, dual stream output
- F= 4.7mm ~ 47mm provides with 47° to 4.7° view
- 10x optical zoom
- Full HD 1080P
- Horizontal 360° continuous rotation, 90° vertically auto rotation
- 50-80m IR distance / 6xIR Leds t
- MicroSD card slot
- Accepts up to 64GB
- Support ONVIF/ HTTP/ TCP/ DDNS/ NTP/ SMTP/ RTSP
- 255 preset, 4 pattern, 4 cruise
- Lightning-proof, IP66
- DC24V or POE
Specifications
| ZOOM MODULE | |
| Image sensor | 1/2.8", 2.0MP CMOS sensor(Ambarella A5S66+IMX222) |
| Effective pixels | 2MP |
| Min. illumination | Colour: 0.06Lux@F1.6; B/W: 0.01Lux@F1.6, 0Lux(IR ON) |
| IR distance | 50-80m |
| White balance | Auto/White low lamp/4000K/5000K/Sunshine/dark clouds/flash light/fluorescent lamp/high fluorescent lamp/water bottom/customized |
| Gain control | Auto, manual |
| 3DNR | Supported |
| S/N Ratio | 50dB |
| BLC | Supported |
| WDR | DWDR |
| Electronic shutter | Max:1/15, Min: 1/5000 |
| Day & Night | B&W, colour, auto |
| Optical zoom | 10X optical zoom |
| Focus mode | Auto/Manual |
| Focal length | f=4.7~47mm |
| Iris | F1.6(W)-F3.0/(T) |
| FUNCTION | |
| Horizontal | 360° endless |
| Vertical | 0°~90° auto roration |
| Rotation speed | Manual: 0.1- 200°/sec, Preset: 240°/sec |
| Preset accuracy | 0.1° |
| Proportion zoom | Supported |
| Preset | 255 |
| Cruise | 4 |
| Pattern | 4 |
| Area scan | Supported |
| PTZ Watch | Preset/zone/cruise/pattern/OFF |
| Smart alarm | Network disconnect, IP address conflict, Storage plena, Storage error, Access violation |
| Smart image enhance | Not Supported |
| NETWORK | |
| Max image dimensions | 1920*1080 |
| Dual stream | Supported |
| Video compression | H.264 |
| Audio compression | Not Supported |
| Network protocols | IPv4, HTTP, FTP, SMTP, UPnP, DDNS, NTP, RTSP, TCP, UDP, DHCP |
| Password protection | Supported |
| Character display | Supported (channel, date) |
| Mobile surveillance | Supported |
| SYSTEM INTEGRATION | |
| Alarm in | 1CH |
| Alarm out | 1CH, support alarm linkage |
| Alarm Linkage | Email, FTP |
| Audio in | Not Supported |
| Audio out | Not Supported |
| Network interface | Built in RJ45 network port,support 10M/100M network data |
| Analog video output | Supported |
| RS485 port | Not Supported |
| Browser | Support IE8, IE9, IE10 and based on the IE core browsers |
| GENERAL | |
| Operating temperature/ humidity | -20°C ~ 55°C/0%-90% (Can enable cold start and self-heating below -20°C, and running normal after 30 minutes) |
| IP rating | IP66 |
| Power supply | DC24V 1.5A or POE(IEEE 802.3 AF STANDARD) |
| Power consumption (max) | 25W |
| Dimensions(HxD) | 219x149mm |
| Weight/PCS(g) | 2.7kg |
