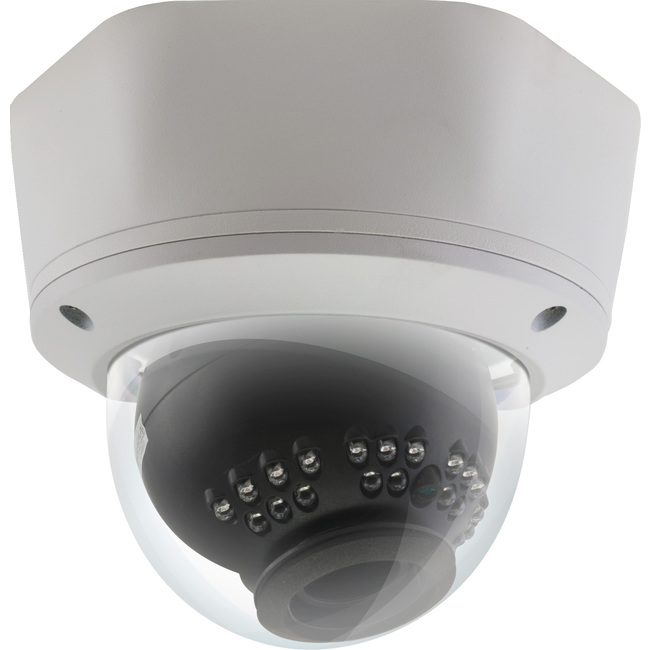

DOME15PRO 700TVL DOME CAMERA 10-15M IR

DOME15PRO 700TVL DOME CAMERA 10-15M IR

Additional Images

4315007043150070

Downloads


DOSS CCTV and Dome Range Sell sheet

The DOME15PRO is the latest in our dome camera range, featuring a massive 700TVL thanks to its Sony Super HAD II CCD sensor and the Sony Effio-V Image processor!

Features

  • 1/3″ Sony Super HAD II CCD
  • Sony EFFIO-V DSP Chipset
  • 700TVL Resolution
  • 2.8mm – 11mm Varifocal Korean lens
  • 10m – 15m IR Range
  • Magnetic base allows more flexible mount and view options—allows non-horizontal mounting without the odd angles produced by regular pan/tilt bases
    • Not only can you adjust the horizontal and vertical angles of view (such as regular pan/tilt bases), but you can also rotate the camera to correct for non-horizontal mounting surfaces



Gallery

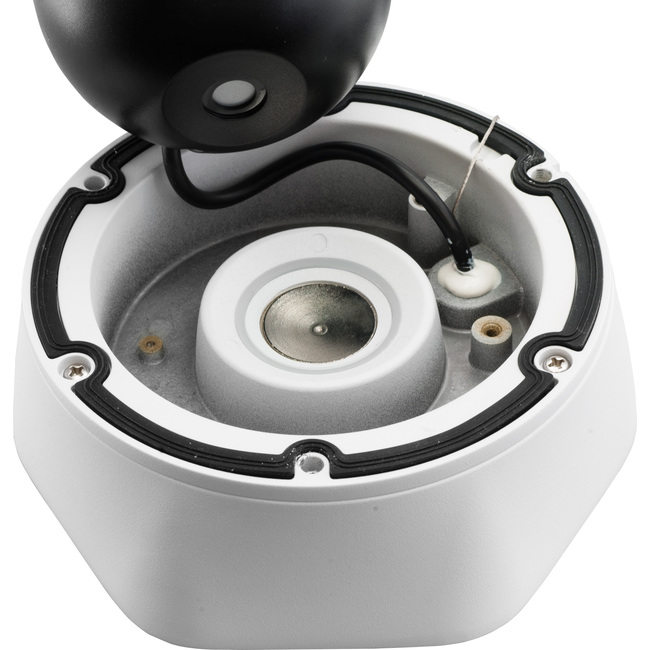

Magnetic base allows the camera to be set to any desired position

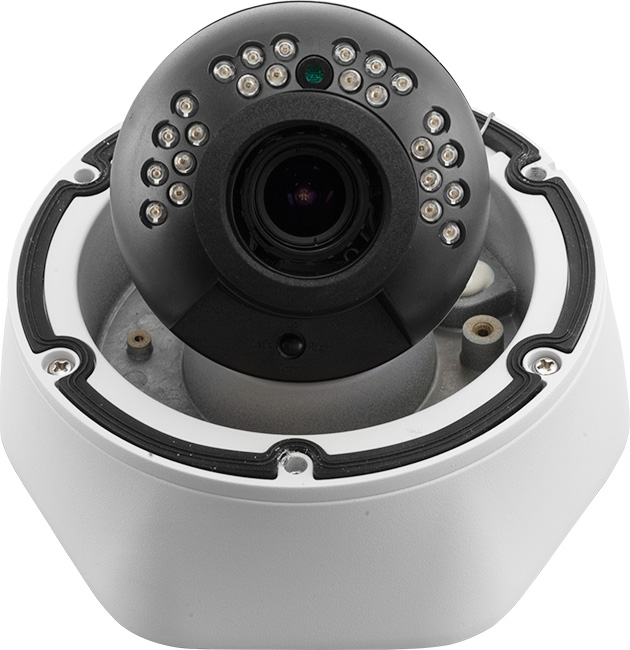

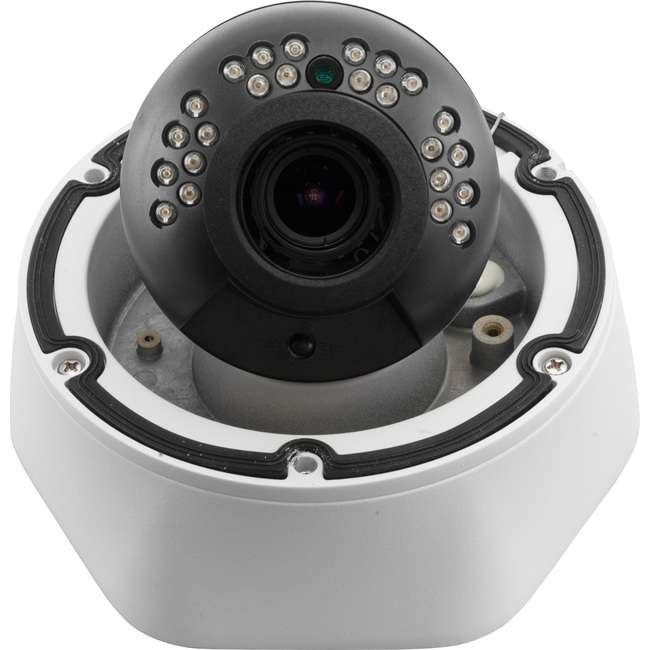

24x Ø5mm IR LEDs for ample illumination





Specifications

Model DOME15PRO
Sensor 1/3″ Sony Super HAD II CCD
DSP Sony Effio-V
Resolution 700TVL
Effective Pixels NTSC: 976 x 494
PAL: 976 x 582
Lens 2.8mm – 11mm
Lens Type Manual
Lens Origin Korea
Approx View Angle (H) 124.3° – 30.2°
IP Rating IP65
IR LEDs 24x Ø5mm
IR Range 10m – 15m
Adjustable IR Brightness yes (manual)
WDR
(Wide Dynamic Range)
Super WDR
Sens-up yes
OSD yes
Inline Controller no
Noise Reduction 3D-NR
Backlight Compensation HLC/BLC/OFF
Image Colour Adjustment?
(ie brightness/contrast/ tone/saturation/sharpness)
yes
Mirror function
(Horiz / Vert / Rotate)
H / V / R
Privacy Zones 15
Motion Detection Zones 4
RS-485 no
Power
(with IR on where applicable)
12VDC / 400mA





About Sony Chipsets

Sony’s Super HAD CCD II offers improved characteristics over the Super HAD CCD Sensor and other CCD Sensors.

  • Less space between On-chip microlenses and light sensors
  • Improved and longer life colour filters
    • Up to 100 times the life of previous colour filter
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • Increased sensitivity to near IR range
    • Lower noise
Microlens
Structure
Other CCD Sensors Sony Super HAD II CCD
New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-V DSP Chipset supports the following features*:

  • WDR high-end model
  • ATR-EX (Adaptive Tone Reproduction)
  • 2D & 3D noise reduction
  • Digital image stabilizer
  • Slow shutter (Sens-up)
  • Digital Zoom / E-zoom
  • Motion detection
  • Privacy mask
  • HLC (High Light Compensation)
  • Preset OSD
  • Exposure control for IR light
  • Low power consumption
ATR-EX
(Actual camera image)
Sens-up
(Actual camera image)
WDR
(Actual camera image)
Off On
*Features mentioned are supported by Effio chipset but may not be implemented/enabled – please check the camera specifications.








DOSS Security Training 2013

Watch the training series on our new CCTV Cameras for 2013 here!



What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
