DOME30PRO 700TVL DOME CAMERA 20-30M IR (GREY)

DOME30PRO 700TVL DOME CAMERA 20-30M IR (GREY)

Downloads


DOSS CCTV and Dome Range Sell sheet

Discontinued

The DOME30PRO has been upgraded! It now features the Sony Super HAD II CCD sensor along with the high-end Sony Effio-V image processor; boosting its resolution and picture quality!

The in-line OSD controller means the camera can be fixed into the desired position, and the picture adjusted without having to reach behind the camera, or moving it everytime a change is made.

Features

  • 1/3″ Sony Super HAD II CCD
  • Sony Effio-V DSP Chipset
  • 700TVL Resolution
  • 4mm – 9mm Varifocal Korean lens
  • 20m – 30m IR Range
  • In-line OSD controller
  • Colour: Grey



Images

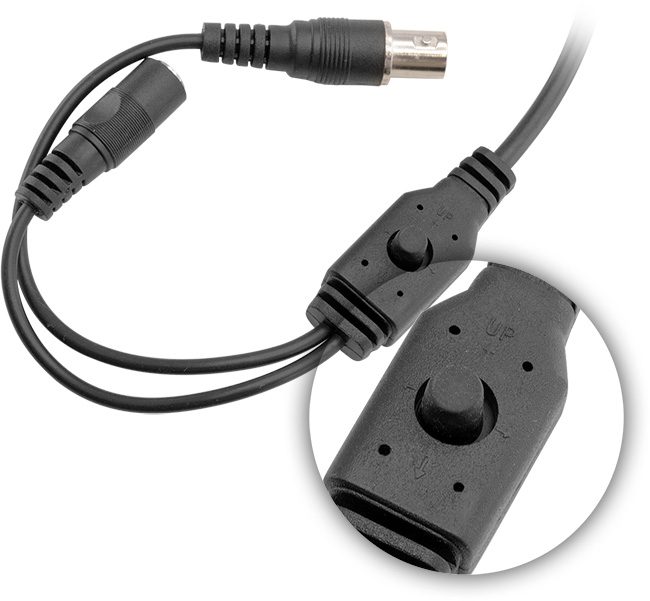

In-line controller to control OSD





Specifications

Model DOME30PRO

Sensor

 1/3" Sony Super HAD II CCD
DSP Sony EFFIO-V
Resolution 700TVL
Effective Pixels NTSC: 976 x 494
PAL: 976 x 582
Lens 4mm – 9mm
Lens Type Manual
Lens Origin Korea
Approx View Angle (H) 98° – 38°
IP Rating IP65
IR LEDs 36x Ø5mm
IR Range 20m – 30m
Adjustable IR Brightness yes (manual)
WDR
(Wide Dynamic Range)		 Super WDR
Sens-up yes
OSD yes
Inline Controller yes
Noise Reduction 3D-NR
Backlight Compensation HLC/BLC/OFF
Image Colour Adjustment?
(ie brightness/contrast/ tone/saturation/sharpness)		 yes
Mirror function
(Horiz / Vert / Rotate)		 H / V / R
Privacy Zones 15
Motion Detection Zones 4
RS-485 no
Power
(with IR on where applicable)		 12VDC / 450mA





About Sony Chipsets

Sony’s Super HAD CCD II offers improved characteristics over the Super HAD CCD Sensor and other CCD Sensors.

  • Less space between On-chip microlenses and light sensors
  • Improved and longer life colour filters
    • Up to 100 times the life of previous colour filter
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • Increased sensitivity to near IR range
    • Lower noise

Microlens
Structure
Other CCD Sensors   Sony Super HAD II CCD


New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-V DSP Chipset supports the following features*:

  • WDR high-end model
  • ATR-EX (Adaptive Tone Reproduction)
  • 2D & 3D noise reduction
  • Digital image stabilizer
  • Slow shutter (Sens-up)
  • Digital Zoom / E-zoom
  • Motion detection
  • Privacy mask
  • HLC (High Light Compensation)
  • Preset OSD
  • Exposure control for IR light
  • Low power consumption

ATR-EX
(Actual camera image)

Sens-up
(Actual camera image)

WDR
(Actual camera image)
Off   On

*Features mentioned are supported by Effio chipset but may not be implemented/enabled – please check the camera specifications.






Short URL: https://bit.ly/2SgqI9k



DOSS Security Training 2013

Watch the training series on our new CCTV Cameras for 2013 here!

Short URL:



What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
