DVR4CH 4CH NETWORK H.264 DVR WITH VGA

DVR4CH 4CH NETWORK H.264 DVR WITH VGA

Downloads


Manual


Sell Sheets

DISCONTINUED

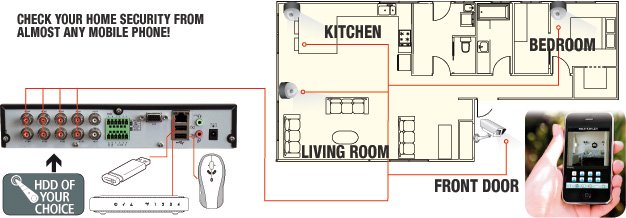

Simple connection diagram

SETUP REMOTE ACCESS TO YOUR DVRHaving issues accessing your DVR remotely or from your mobile phone? Print out our easy to follow guide to help you set up your DVR and your router.

Features

  • H.264 (main profile)/ MJPEG video compression
  • Support 1/4ch playback simultaneously
  • Support multiplex, PPPoE, DHCP, SATA HDD.
  • Support USB2.0 backup, dual stream bit
  • Integrated web server for access via Internet Explorer
  • Email Alert: Sends log, picture, IP information to the appointed mailbox when alarm is activated
  • Built-in buzzer alarm
    Configure to sound a warning when motion is detected or video signal is lost
  • Auto-recovery capability after powering on
  • 16-bit colour menu with user friendly OSD
  • Support schedule recording, 120 preset schedule tasks
  • Search recording by time and day



Package includes

  • DVR unit
  • USB mouse
  • Remote control
  • SATA cable for HDD connection
  • RJ45 cable for network connection
  • Power supply
  • Alarm connection terminals
  • Software CD
  • Warranty Card and QC passed certificate
  • User manual



Specifications

MODEL
DVR4CH
Main processor Embedded High Performance processor
Operation system Embedded RTOS
VIDEO
Format PAL/NTSC
Compression H.264(main Profile)/MJPEG
Input 4 CH, BNC(1.0Vp-P,75Ω)
Output 1CH BNC(1.0Vp-P,75Ω), 1CH VGA(800×600,1024×768,1280×1204 model optional)
AUDIO
Compression ADPCM
Input 4CH BNC(linear voltage,10.0KΩ)
Ouput 1CH BNC(linear voltage,1KΩ)
Intercom Support intercom
DISPLAY
Resolution D1: 704×576(PAL) 704×480 (NTSC)
Frame rate 25(PAL)/30(NTSC)FPS
Division 1/4CH
RECORD
Resolution CIF: 352×288(PAL) NTSC: 352×240(NTSC)
Frame rate 25(PAL)/30(NTSC)FPS all realtime flexible
Quality 5 Levels (Basic,Medium,Good,High,Best)
Mode Manual, Motion detection(support 396 grid blocks),Timing, Alarm trigger, Auto start, Pre-recording
Video output stream 64k-2M bps adjustable
Playback 4CH playback simultaneously
HDD
Basic storage 1 SATA interface,Max.2T/HDD
ALARM
Input 4CH
output 1CH
OTHER
Mobile Support iPhone (AppStore link), Symbian, Windows Mobile
System resource Multi-CH recording, playback, network operation and monitoring simultaneously
Network RJ45, auto adapt 10/100M Ethernet, support PPPoE & DHCP
Backup 1 USB2.0, support flash memory,Remote HDD
Mouse 1 USB1.1 interface, support USB mouse operation
Communication port 1 RS485 port
Power supply DC 12V/3A
Power(without HDD) 10W
Weight 2.3KG
Dimension(W×H×D) 250 x 260 x 50 mm
Package Dimension(W×H×D) 350 x 305 x 105 mm
Operating environment Humidity: 10~95% RH, Temperature: -10°C ~ 55°C
