HBD8DVRV3 8CH 1080P ANALOG AHD CVI TVI IP HYBRID 5IN1 NETWORK DVR

HBD8DVRV3 8CH 1080P ANALOG AHD CVI TVI IP HYBRID 5IN1 NETWORK DVR

Additional Images

43171123

Features



CCTV Calculator Calculate everything!

Features

  • 8 CH hybrid HD 5 in 1 DVR, 2HDD position 1U case
  • Embedded Linux operation system, H.264 dual-stream decoding
  • 8CH Coaxial HD+8CH IP Camera sync access
  • Auto recognition HDCVI/HDTV/AHD/CVBS five mixed signal access
  • Support max 1/4/8CH sync playback and sync run backward
  • Support main stream and sub stream sync video
  • Support synchronic video, playback, remote monitoring, backup
  • VGA/HDMI sync output, support 1080P HD preview
  • Support DDNS, EMAIL, UPNP, NTP, P2P
  • Support WEB, mobile viewer, Client, CMS

Read our new, dedicated NVR Frequently Asked Questions page! If you’re having troubles with your NVR, perhaps you can find a solution here!



Specifications

Specifications

    Model 8CH HYBRID 5 IN 1 NETWORK DVR
    VIDEO
    Video Input 8CH*3MP(BNC);4CH*4MP(BNC1,2,5,6,9,10,13,14);
    8CH*3MP(BNC)+8CH*3MP(IPC);
    4CH*4MP(BNC1,2,5,6,9,10,13,14)
    Video compression H.264
    Video Output Resolution 4MP/3MP/1080p/960p/720p/D1/2CIF/DCIF/2CIF/CIF/QCIF
    Video Output VGA/HDMI sync output, 1920*1080, 1440*900,
    1280*1024, 1366*768, 1024*768, 800*600
    Bit Rate 16 – 8000Kbps
    Image Display 1/4/6/8/9/16/20/25/36
    Snapshoot Support (JPEG)
    Motion Detection 396 (22*18) surveyed area can be set in every screen
    and multi sensitivity adjustable
    AUDIO
    Audio Encoding G.711A
    Audio Input 4CH
    Audio Output 1 CH
    Talkback
    VIDEO RECORDING AND PLAYBACK
    Video Frame Rate 8CH mode: 4MP@15fps;3MP@10fps;1080P@25fps(PAL)/30fps(NTSC) real-time; 720P@25fps(PAL)/30fps(NTSC) real-time; Analog/IPC@25fps(PAL)/30fps(NTSC) real-time.

    16CH mode: 3MP@15fps;1080P@15fps;720P@25fps(PAL)/30fps(NTSC) real-time; Analog/IPC@25fps(PAL)/30fps(NTSC) real-time.

    Record Mode Manual/Timing MD/Regular/Alarm exception/MD or alarm/MD and alarm
    Playback Synchronic Analog 4CH/Mixed 1CH main stream sync playback 4CH/8CH sub stream sync playback
    Search Method Time, Calendar, Event, Channel
    Video Playback Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen,
    Roller amplification time ball precise playback
    VIDEO BACKUP
    Interface 2 SATA
    HDD Capacity Single largest 6T
    Backup location Local HDD, Network
    Backup Method Network, USB storage device, USB recorder
    Network Protocol TCP/IP, HTTP, DDNS, SMTP, DHCP, PPPOE, UPNP, NTP, P2P, ONVIF
    EXT INTERFACE
    Network Interface RJ45 10M/100M/1000M adaptive Ethernet port
    Alarm Input 8 CH
    Alarm Output 3 CH
    RS-485 1 RS485
    USB Port 2 USB2.0
    GENERAL
    Operation Temp And Humidity -10°C ~ 55°C/10?-90?
    Power supply DC12V/5A
    Power Consumption 35W(Without HDD)
    Unit Dimension(mm) 360(L) x 242(W) x 48(H)mm
    Weight 1.5 Kg

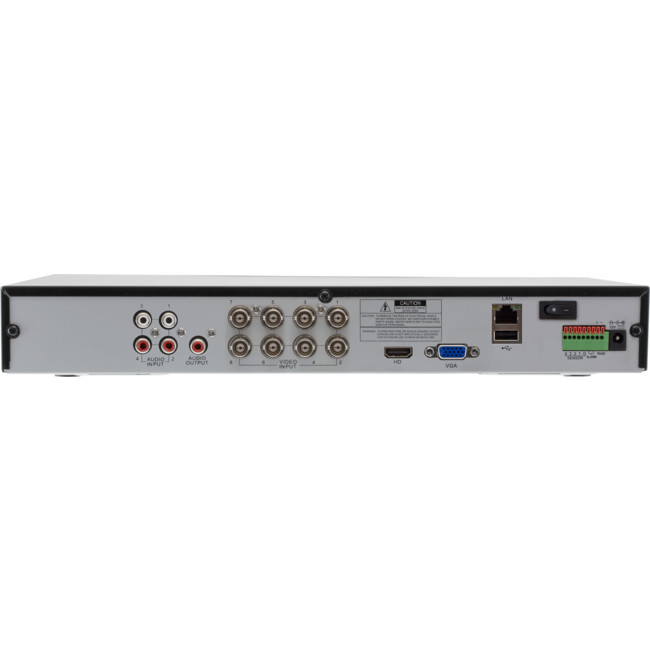

Interface

  1. BNC Video Output
  2. Audio Input
  3. Audio Output
  4. HDMI Video output
  5. VGA Video output
  6. RJ45 port
  7. USB 2.0
  8. DC12V Power Supply
  9. Alarm Input
  10. Alarm Output
  11. RS485
  12. Power Switch



In the box

  • DVR
  • 48V 3A DC Power supply with detachable IEC lead
  • USB Mouse
  • HDD Connection Kit
    • 2x SATA cable
    • Molex power cable
    • 8 screws
  • Software CD
  •





What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
