HDMIDIY DIY HDMI CRIMPING KIT

HDMIDIY DIY HDMI CRIMPING KIT

Additional Images

5264508652645086526450865264508652645086526450865264508652645086

Downloads


HDMIDIY Crimping Instructions (2.01MB)


HDMIDIY 2012 Sellsheet


HD901-36 HDMI Portable Tester User Manual (1.2MB)

Discontinued

The HDMIDIY Kit allows installers to create their own HDMI cables from scratch. Perfect for situations where large holes cannot be cut for HDMI Plugs, or for running HDMI cable through narrow conduit. This kit allows you to crimp solder-less HDMI plugs onto any length of HDMI cable you like, allowing the greatest flexibility for installations.

Furthermore, our solder-less crimp connection has better impedance performance than other crimped connectors or typical solder pin connections, resulting in a close to perfect 100Ω impedance match and better performance!

Kit Contents

  • 20x HDMI Solder-less connectors (PK2300)
    Each connector includes:

    • 2x Wire guides
    • 1x Gold Plated HDMI Connector
    • 1x Top Die-cast Metal Shell
    • 1x Bottom Die-cast Metal Shell (incl metal belt+screws for cable strain relief)
    • 2x Screws
  • 1x Crimping Tool (HD901-31)
  • 1x Crimping Guide Jig
  • 1x HDMI Portable Cable Tester (HD901-36)
  • 1x Carry case



Images

Easy to assemble, DIY crimp connector

Stylish modular design

Patented crimping tool not only crimps but trims wires in one motion

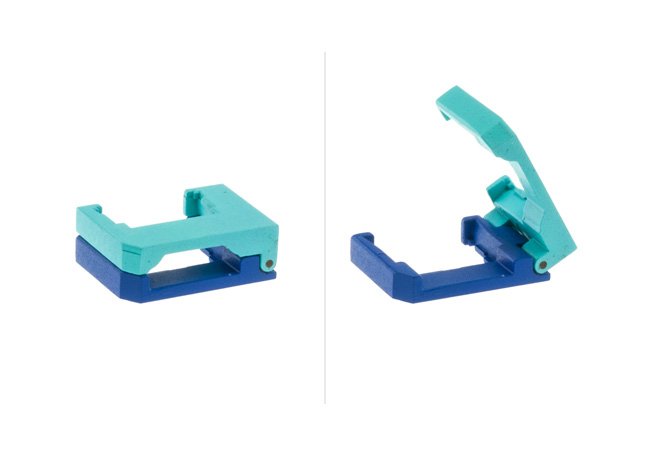

Guide Jig ensures hassle-free, accurate crimping

Wire guides for each connector ensure perfect wire alignment

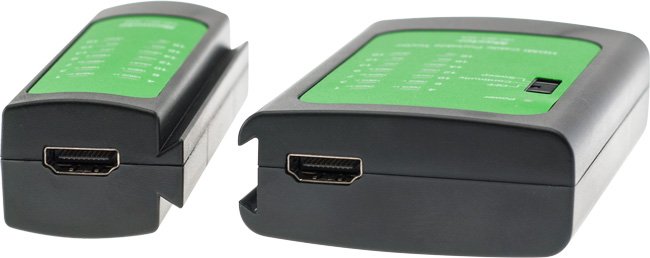

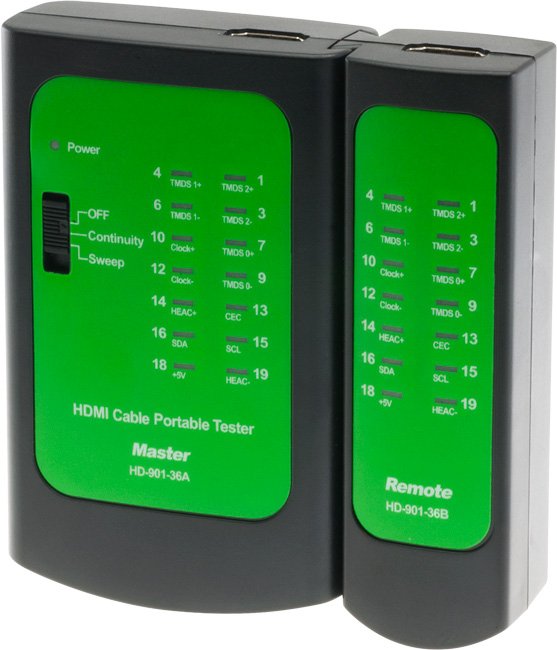

Kit includes a sophisticated HDMI cable tester

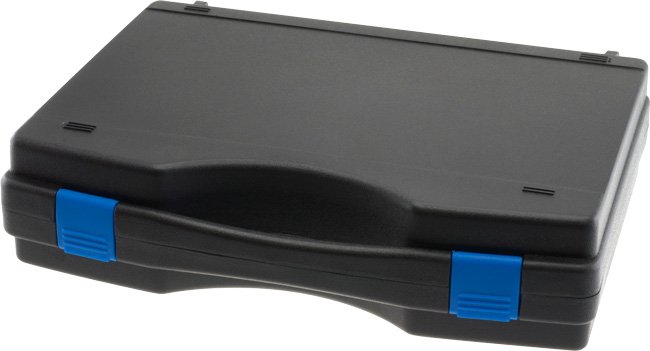

Carry case contains all tools and parts for easy transport
