IN30IP8ME BULLET 2.8MM LENS 8MP 4K 30M IR IP CAMERA – WHITE

IN30IP8ME BULLET 2.8MM LENS 8MP 4K 30M IR IP CAMERA – WHITE

Additional Images

43161230

Features

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.

Features

  • Max resolution 8MP (3840×2160@15fps)
  • Support low bit rate, low delay and ROI enhance encoding
  • H.265 high effective compression, save bandwidth and storage space
  • High effective IR led, long service life,IR distance can reach 20-30m
  • Support Smart IR, prevent IR overexposure at night
  • ICR infrared filter plate automatic switch, achieve real D/N monitoring
  • Support corridor mode, increase the monitoring area in longitudinal strip environment
  • Support Micro SD card (256G) local storage
  • Support 3D digital N/R,WDR
  • Support auto electronic shutter function, adapt different monitoring environment
  • Support various intelligent alarm
  • Support bidirectional talk
  • Support 2CH alarm input / 1CH alarm output
  • Support HTTPS encryption transmission
  • Original equipment boot to modify password, ensure password security



Specifications

CAMERA
Image sensor 1/2.5" 8MP Progressive Scan CMOS
Min.illumination 0Lux/F1.4(IR ON)Color: 0.1Lux/F1.4, B/W 0.05Lux/F1.4
IR distance 20-30M(15*IR leds)
Electronic shutter Auto/ Manual(1/25~1/10000),FLK
Day/ Night ICR switch, auto, color, B/W, ext
Lens 2.8mm fixed lens
Lens interface M12
Output PAL/ NTSC adjustable
WDR WDR (Off/ Low/ Middle/ High)
Light board control Auto/ Manual/ Off
3D N/R Off/ Low/ Middle/ High/ Higher
Defog Off/ Low/ Middle/ High
Mirror Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation, 270º rotation)
Slow Shutter Off/On
Exposure control Auto/ Manual
Image setting Brightness, Contrast, Saturation, Sharpness, Hue
AUDIO/VIDEO ENCODING
Video compression H.265/H.264/MJPEG
H.265 Encoding Main Profile
H.264 Encoding BaseLine / Main Profile / High Profile
Encoding features NTSC: main stream: 3840*2160@15fps, sub-stream: D1@30fps
PAL: main stream: 3840*2160@15fps, sub-stream: D1@25fps
Max. Resolution 3840*2160
Video bit rate Constant bit rate, variable bit rate (32Kbps~16Mbps)
Video type Complex stream/ Video stream
Audio compression G.711u
Audio bit rate 64Kbps
Audio control Support input/output volume gain control
ROI Support 4 zones, multi-stage level
NETWORK
Network protocol TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,F TP
Access protocol ONVIF,GB28181 (optional)
Browser Support IE, Chrome, Firefox, Safari
Video preview meanwhile 4
User permission User add/modify/delete, permission management
Safe mode Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
Motion detection Set detection zone, Multi-level sensitivity can be set
Tampering alarm 1 zone
Privacy Mask 4 zones
Intelligent analysis Target Counting, Area Detection, Object Left/Lost, Line Crossing
Event linkage Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage
Multicast function Support
ANR Support,match with NVR
Mobile surveillance Support Apple, Android
Device exception Support network disconnected, IP conflict, illegal access alarm
OSD Title, time and date overlay, multi-line OSD, OSD color optional
DST Support
Snapshot Support snapshot, snapshot resolution is encoding resolution
System Upgrade Support remote upgrade

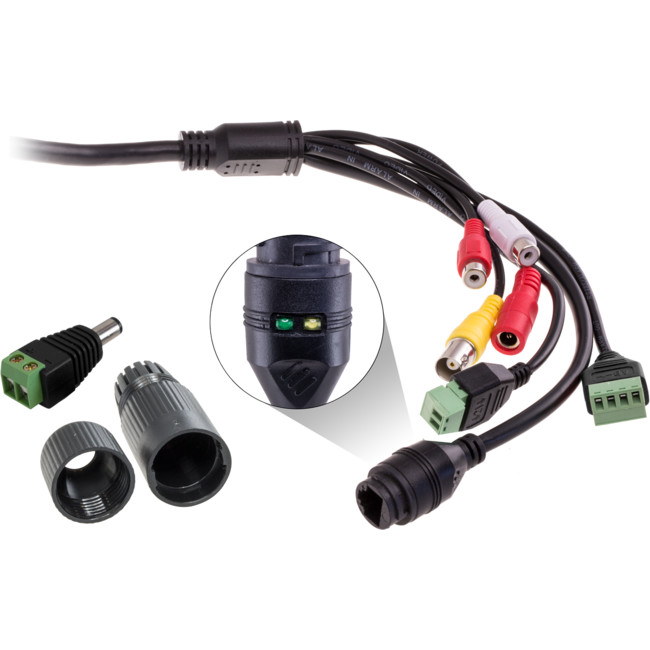

INTERFACE
Network Interface RJ45 10M/100M network adaptive
Analog video output 1CH 1.0Vp-p Composite Video Output
Audio Line Input/Output
Alarm input 2CH
Alarm output 1CH
Reset Support
TF card Support Max 256G, Micro SD(SDHC /SDXC) card local-storage
GENERAL
Operating temperature -20°C ~ 55°C
Operating humidity 0%-90%
Protection grade IP66/IK10
Power supply DC12V /AC24V/PoE
PoE Support
Power consumption (max) <9W
Dimensions(mm) 87.5(W) x 80.5(H) x 185.7(L)mm
