IN30IPB2 BULLET 2.8-12MM LENS IP66 1080P 30M IR POE IP CAMERA V2 – BLACK

IN30IPB2 BULLET 2.8-12MM LENS IP66 1080P 30M IR POE IP CAMERA V2 – BLACK

Additional Images

431601184316011843160118

Discontinued

Features

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.

Features

  • 1/2.8" Sony WDR CMOS Sensor
  • Hi3516C DSP+IMX323
  • h.264/ MJPEG encoding
  • Resolution: 1920×1080
  • Built-in intelligence
  • 1080P (Full HD) recording and viewing
  • Conforms to ONVIF (Open Network Video Interface Forum) protocols Profile S
  • 2.8-12mm Lens provides a view of 92° to 28°
  • 20-30m IR distance, 2x IR Array Leds
  • 1/2.8" Sony WDR CMOS Sensor
  • IP66 weatherproof case
  • DC12V with PoE
  • NSR=50db
  • Black Colour



Specifications

Model IN30IPW2
Camera Sensor 1/2.8" Sony CMOS
Pixel Count 2.43MP
DSP Hi3516C
Resolution 1920×1080
Lens 2.8-12mm (2MP)
Lens type
(fixed/varifocal:auto/manual)
Varifocal – Manual
Day/Night ICR
(Infrared Cutfilter Removal)
Auto/B&W/Colour/EXT ICR switching
Approx view angle (Horiz) approx 83°
Minimum illumination 0 Lux/F1.4 (IR On)
Electronic shutter Auto/Manual
(1/25~1/10000)
Encoding Stream 1 resolution Up to
PAL: 1080P/25fps
NTSC: 1080P/30fps
Stream 1 Encoding h.264/MJPEG
Stream 1 Bitrate 16~8000kbps
CBR/VBR
Stream 2 resolution Up to VGA (640*480)
Stream 2 Encoding h.264/MJPEG
Stream 2 Bitrate 16~8000kbps
CBR/VBR
Audio compression G.711A
64kbps

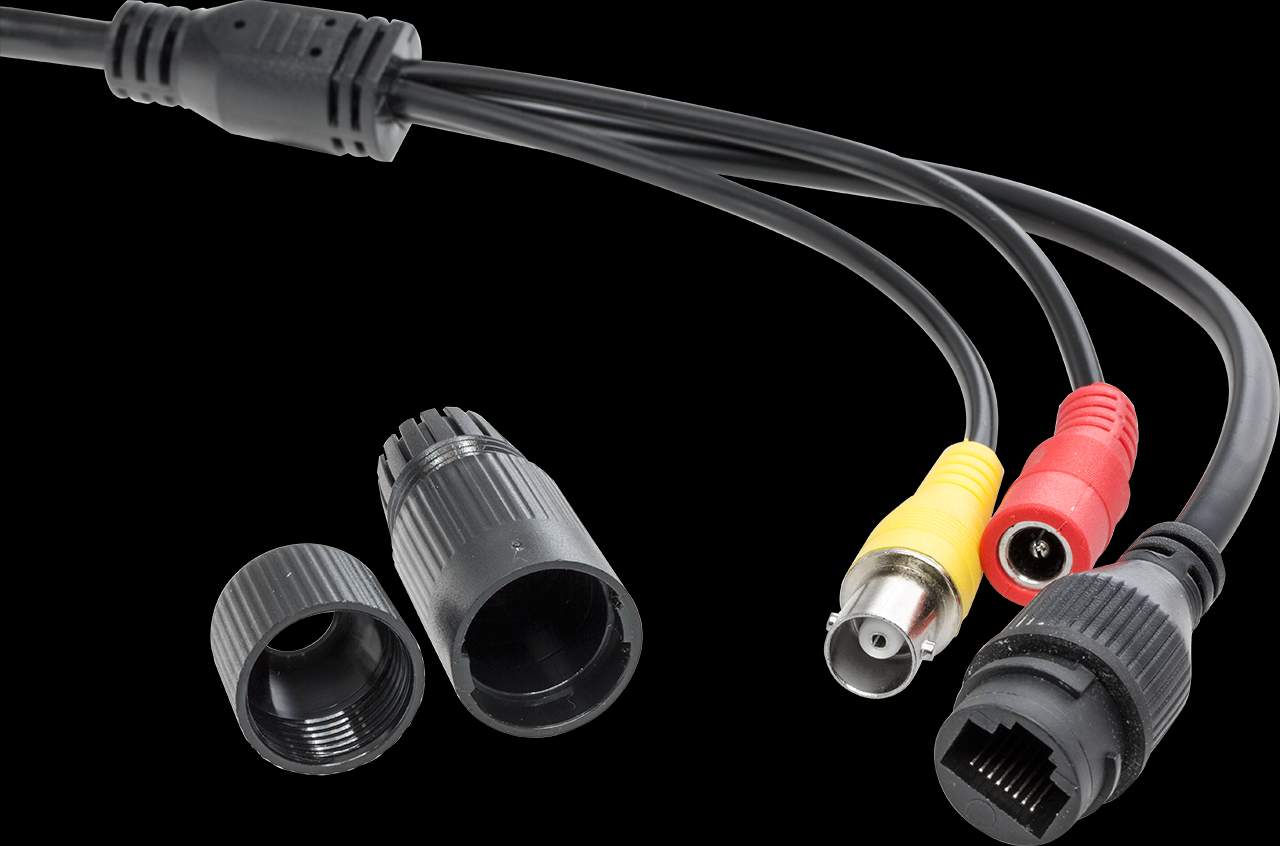

Features Analogue output Yes (BNC, CVBS)
IP Rating IP66
IR LEDs 2x IR Array Leds
IR Range 20-30m
Adjustable IR Brightness NO
WDR
ATR/D-WDR
DWDR
Noise Reduction
(none/2D-NR/3D-NR)
3D-NR
Image adjustment
(Brightness/Colour/Sharpness)
Brightness/Sharpness
Image flip(H/V/H+V) H/V/H+V
Privacy zones 4
Motion detection zones 1
Password protection Yes
OSD (Channel/Timestamp) Yes (Channel/Timestamp)
Alarm Video loss/Network loss/Tamper
Power over Ethernet Yes(IEEE 802.3 STANDARD)
Networking ONVIF Compliance Profile S (v2.2)
Protocols supported TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPnP, SMTP
Network interface RJ45 10M/100M
Remote viewing Web-browser/Apple/Android
General Operating Conditions −10°C ~ 55°C/ 0%~90%RH
Power Supply DC12V/PoE(IEEE 802.3 AF standard)
Power Consumption <6W

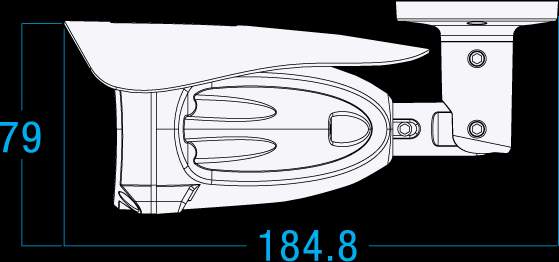

Dimensions (ØxH/ W x H x L) Ømm
Weight 800g
