IP8INK WHITE BULLET 1080P IP CAMERA WITH 2TB HDD 8CH NVR KIT

IP8INK WHITE BULLET 1080P IP CAMERA WITH 2TB HDD 8CH NVR KIT

Additional Images

431712024317120243171202

Discontinued

Features

Overview

Have you been shopping around for a CCTV system but could not make a decision amongst all the available, confusing options?

This Doss Digital IP 8 channel DVR bundle kit includes everything you need for your home CCTV system.

No more frustration about too many products and options. This bundle kit takes your headache away and make your CCTV shopping experience more pleasant.

The kit comes with:

  • 1x 8 channel NVR
  • 8x IP bullet cameras
  • 2TB Seagate SkyHawk hard drive [preinstalled]
  • 8x 30m Cat5e cable
  • 1x HDMI cable
  • 1x CAT5E cable
  • Power Supply
  • Wired mouse
  • Software/Manual CD

Features

  • 8 IP cameras recording in 1080p
  • 30m IR range for all cameras
    Night recording-NO PROBLEMS!
  • NVR and cameras are designed to work using a single CAT5e cable (included) to provide power and data
  • 2TB Seagate SkyHawk hard drive included
    The Seagate SkyHawk hard drives are specifically designed for surveillance purposes
  • Supports remote viewing on mobile devices as well as web browsers

FAQ

Need help troubleshooting? Click Here to access our help centre and view our FAQ solutions.

Please note: The NVR and IP cameras that come with the IP8INK kit have been specifically designed to work exclusively with each other. The NVR will not provide POE functionality to third party cameras, nor will the included IP cameras be powered by third party NVRs. For those setups you have to make sure you provide power to the cameras separately.

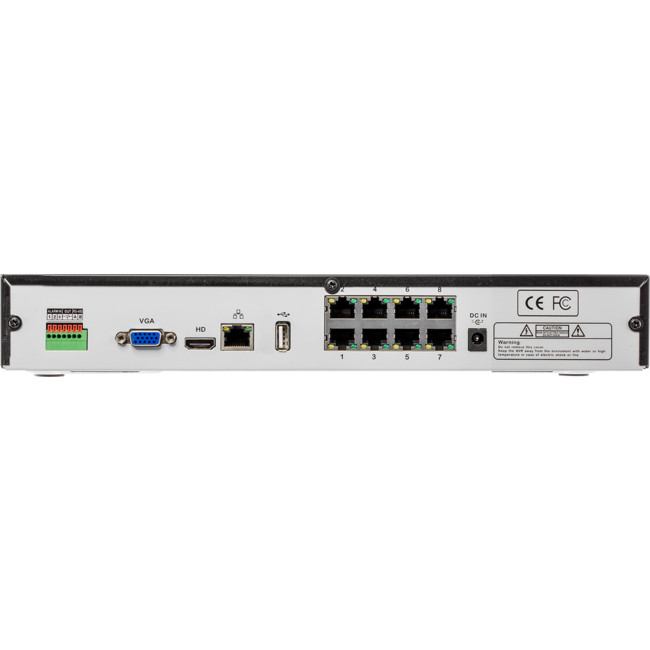

NVR Specifications

VIDEO
Video input 8 CH 1080P
Video compression H.264
VGA/HDMI sync output
Video output 1920*1080, 1440*900, 1280*1024, 1366*768, 1024*768, 800*600
Bit rate 16-8000Kbps
Image display 1/4/6/8/9
Snapshot Support (BMP)
Motion detection 396 (22*18) surveyed area can be set in every screen and multi sensitivity adjustable

AUDIO
Audio encoding G.711A
Audio input IPC complex audio input

VIDEO RECORDING AND PLAYBACK
Video frame rate 1-30fps
Record mode Manual/ alarm/ MD/ regular
Playback synchronic 1 CH 1080P sync playback
Search method Time, calendar, event, channel
Video playback Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification
time ball precise playback

VIDEO BACKUP
Interface 1 SATA
HDD capacity Max. single 6T
Backup location Local HDD, network storage
Backup method Network, USB storage device, USB recorder
NETWORK MANAGEMENT
Protocol TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF
Port protocol Onvif, RTSP, GB28181 (optional)
Mobile surveillance

FSEYE for
Browser version
  • Internet Explorer with or without ActiveX controls
  • Chrome, Firefox, Safari and more
Intelligent detection Motion detection, video loss, video mask, tampering alarm, etc.

EXT INTERFACE
Network interface RJ45 10M/100M adaptive Ethernet port
RJ45 port 8 CH
Alarm input 2 CH
Alarm output 1 CH
RS-485 1 RS485 port, support FS-KT301 keyboard control
USB port 2, USB 2.0, support

GENERAL
Power supply DC15V/ 5A
Power consumption <10W (Without HDD)
Operation temperature -10°C ~ 55°C/ 10%-90%
Unit dimension (mm) 300*209*48.5
Weight 2 Kg

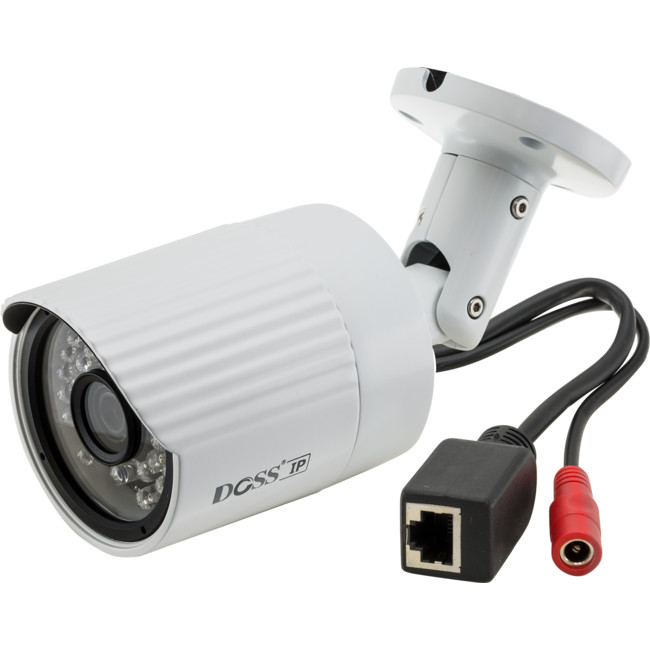

Camera Specifications

CAMERA
Image sensor 1/2.9" SONY 2.07MP Progressive scan CMOS
Min.illumination 0 Lux/F1.4 (IR ON)
IR distance 15-20M (30xΦ5 IR leds)
Electronic shutter Auto/Manual(1/25~1/10000), FLK
Day/Night ICR switch, Auto, colour, B&W, EXT
Scan system Progressive scan
Lens 3.6mm M12 lens
Lens interface M12
R/N ratio ≥50db (AGC OFF)
Output PAL/NTSC adjustable
WDR DWDR
Video Parameter Mirror, 3D noise reduction, sharpness/ Brightness adjustable

AUDIO/VIDEO COMPRESSION


Video compression H.264/MJPEG
Encoding features Dual-stream, NTSC main stream: 1080P@30fps, sub-stream: D1@30fps
PAL main stream: 1080P@25fps, sub-stream: D1@25fps
Max. image resolution 1920X1080
Video bit rate Constant bit rate, variable bit rate (16kbps~8000kbps)
Stream type Complex stream/ video stream

NETWORK


Motion detection Can be set to a single detection zone, Multi-level sensitivity can be set
Privacy zones 4 zones
Snapshot Support JPEG capture, snapshot resolution based on encoding resolution
Password protection Support
Character display Support (Channel, Date)
Alarm function Network anomaly, mask alarm, motion detection etc intelligent alarm
Mobile surveillance Apple, android
Protocol TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP,ONVIF
Port protocol ONVIF, GB28181(optional)

INTERFACE


Network Interface RJ45 10M/100M network adaptive
Analog video output 1CH 1.0Vp-p complex video output

GENERAL


Operating temperature/humidity -20°C ~ 55°C/0%-90%
Protection grade IP66
Power supply 12V DC / POE (12V DC) optional
Power consumption (max) <6W
Dimensions(mm) 66(W) x 66(H) x 166.7(L)mm
Weight/PCS(g) 366g



FAQ

I’ve just hooked up my NVR8CH and I can’t
access it—I’ve tried the default password
“123456” but it won’t let me continue.
The NVR8CH comes with no password out of
the box. You can simply press enter when asked
for a password. Remember to set one up from
the menu later!
The video from my camera is corrupted.

By default, the NVR main stream is set to 720P, while your camera stream may be set to 1080P. Setting the NVR’s stream to 1080P solves the problem.

To change the NVR’s main stream format:

  1. Open the NVR’s settings menu
  2. Navigate to Device > Device Info
  3. Change “Video Format” to either of the [1920×1080] options
  4. Reboot the NVR and the problem should be resolved.
My Doss NVR4CH can’t find my ACTi IP Camera.

Firstly, your ACTi IP Camera may not be running the latest firmware. If not, update it first. Finally, both the NVR and ACTi IP camera need to be set to use ONVIF only.

These aren’t the answers you’re looking for?

Read our new, dedicated NVR Frequently Asked Questions page here!
