LCDCM1B 30KG SMALL LCD CEILING MOUNT

LCDCM1B 30KG SMALL LCD CEILING MOUNT

Downloads


Sell Sheet (1.6mb)

Discontinued

Doss Bracket Range PDF

A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
PDF file View the entire range of Doss Brackets

Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.

Class: Small
Mount: Ceiling
Max Weight:

30 kg

Recommended TV Size: 15" ~ 24"
Compliance: Vesa
Vesa sizes (mm): 50 x 50
75 x 75
100 x 100
Tilt: 20°
Turn: 90°
Distance from Ceiling: 500 ~ 800 mm
Back Plate Dimension:
Material: Iron and plastic
Bracket Weight: 2.75 kg
Colour:

Black

Warranty: 12 months

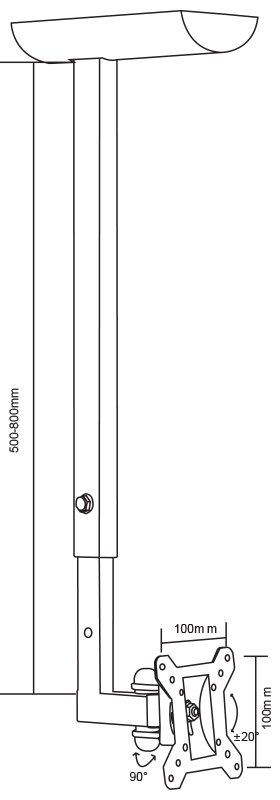

Line Drawing

Line drawing
Click on image to view larger version
