NF904 VISUAL FAULT LOCATOR FOR FIBRE BREAKAGE LIGHT SOURCE

NF904 VISUAL FAULT LOCATOR FOR FIBRE BREAKAGE LIGHT SOURCE

Additional Images

4436504044365040

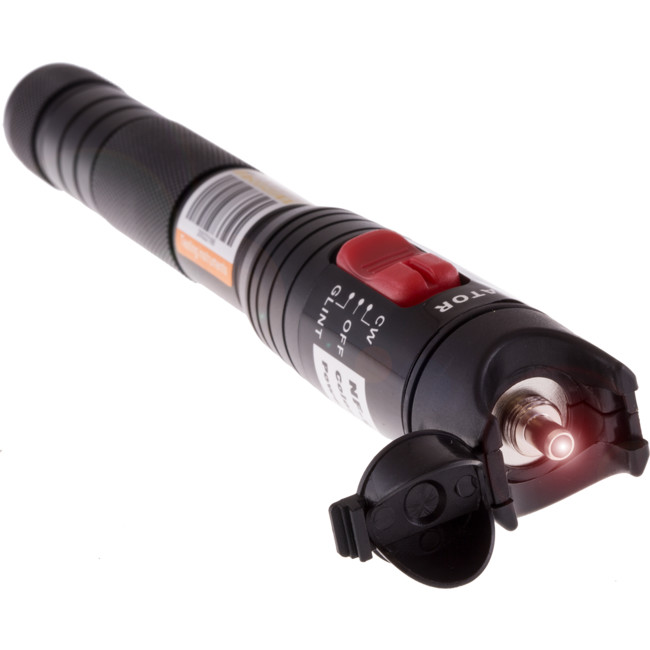

The NF-904 VFL is a compact but powerful Visual Fault Locator, used to find sharp bends & breaks in jacked or bare fiber. It could also be used to identify the connectors in patch panels and fibres during splicing operations.

Features

  • Breakage and winding testing
  • End-to-end fiber recognition
  • Pulsed and CW operation
  • 2.5mm universal connector
  • Rugged and weatherproof design
  • 5mW Output Power



Specifications

Model NF-904B-05 (Black/White)
Wavelenth (nm)  650±10nm
Operation Mode Pulsed (2Hz) and CW
Fiber Type SM/MM
Connector 2.5mm Universal
Output power  1mW 5mW 10mW 20mW
Dynamic Distance  0-2km 0-5km 8~10 km 15~18 km
Working temp  -20 ~ +60° (no dew)
Storage Temp  -40 ~ +85°
Power Supply 1.5V battery
FC interface 1pc (Bundled)
SC/ST/LC interface optional

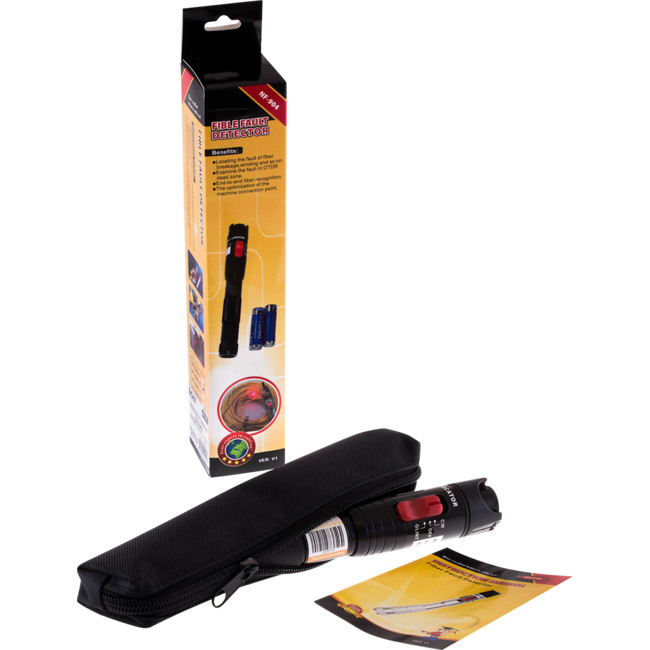

In the box

  • 1x NF904 Visual Fault Locator
  • 1x Case
  • 1x User Manual
