NVR16IQ4K 16CH 8 POE IQ ANALYSIS 4K NVR H.265 2X HDD

NVR16IQ4K 16CH 8 POE IQ ANALYSIS 4K NVR H.265 2X HDD

Additional Images

4317208043172080

Discontinued

Features

16 channel/8 PoE Network Video Recorder

P2P Technology—no more configuring port forwarding! Easy remote access.

ONVIF is an industry standard protocol ensuring compatibility for IP-based security products regardless of brand! Read more here…



  • Supports up to 4K camera resolution
  • H.265 dual-stream decoding
  • HDMI output, support 2160P HD preview
  • Add and record upto 16 cameras simultaneously
  • Provides PoE (Power Over Ethernet) to 8 cameras
  • 4ch alarm input/1ch out
  • RS485 for PTZ control
  • RCA input and output for audio (Mic and speaker)
  • Standalone, Linux-embedded desktop NVR — no PC required
  • VGA & HDMI dual video output
  • Remote access via smartphone, tablet, web browser or PC client
  • ONVIF protocol support (for vast majority of third-party IP cameras)
  • Advanced alarm trigger and alert setup with scheduling, motion detection and IQ analysis features
  • Latest P2P technology allows viewing from anywhere in the world without configuring complicated Port Forwarding or expensive Dynamic DNS services! Simple QR code allows instant access from mobile phones using the free FSEYE app available for iOS and Android.
  • 2 internal hard drive space (upto 6TB each)
  • External backup via USB

New and Improved Features

The Doss IP NVRs are now smarter with baked in Intelligence features. On top of all that, they also now support higher resolution cameras!

Here’s what’s new with the IQ NVR range:

  • New Graphical User Interface

    The layout and usability on the new NVRs have been greatly improved over their predecessor, making navigating and finding what you want a much easier experience.







  • New IQ Features

    Smarter, more intelligent features mean the NVR does all the hard work and gives you the alerts you really need!



IQ Analysis

With more and more people now turning to CCTV surveillance for their security needs, its no surprise that new technologies are being developed and implemented to help reduce the need for manual monitoring and the costs associated. One such strategy is the use of Intelligent Video Analytics (IVA).

The Magic of Intelligent Detection

IVA focuses on automating the video analysis of large amounts of data footage and security alerts, rather than having people monitor each camera manually. The software utilises a range of rules and algorithms to ignore any changes in lighting conditions or non-critical activity, and focus on specific triggers to identify suspicious behaviour and objects.

A good example of Analytics would be its ability to alert authorities of suspicious objects left in public places, like airports, and use facial recognition to help track down fugitives. It could also be used in Highway CCTV situations to capture and report a vehicle travelling in the wrong direction or performing an illegal turn. Even for the domestic home, Analytics could alert and monitor a trespasser crossing a property line.

With every aspect of our lives being digitised, video footage will be increasingly tagged to these events. Imagine a person scanning a train ticket at a turn style. The scanning of the ticket and the footage from the CCTV camera will get put together and be readily accessible in real time or a month later.



Specs

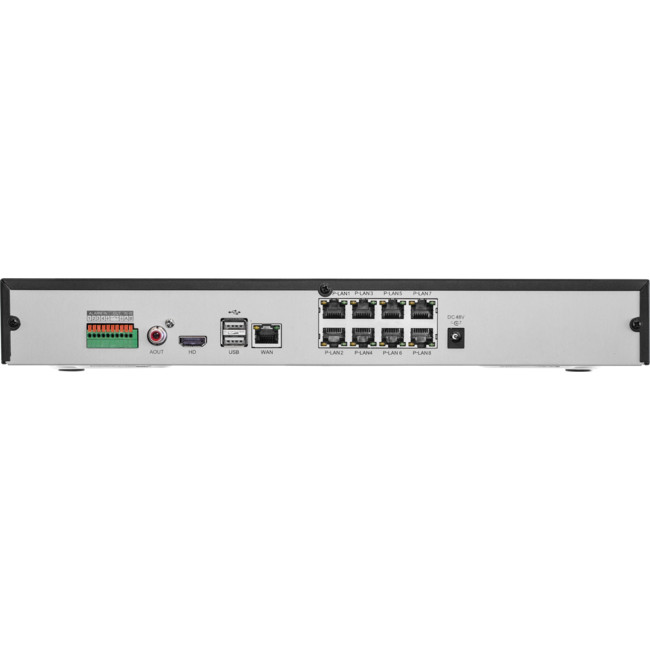

Rear Interface

  • RJ45 LAN Port
  • 8x POE RJ45 POE ports for cameras
  • VGA output
  • HDMI Output
  • Terminal block for alarm input/output
  • Terminal block for RS485
  • RCA audio/mic input
  • RCA audio/speaker output
  • 2x USB2.0 ports for mouse and external drives
  • DC Power Input

Specifications

VIDEO
Network Video input 16CH
Network video input bandwidth 80Mbps
Video compression H.265/H.264/MJPEG
Video output VGA/HDMI synced output
3840×2160@30Hz,1920×1080@60HZ,1280×1024@60HZ
Video bit rate 16-16000Kbps
Video resolution 4K/5MP/3MP/1080p/960p/720p/D1/VGA/4CIF/DCIF/2CIF/CIF/QC IF
Image display 1/4/6/8/9/16
Snapshot JPEG snapshots can be set for automatic or manual capture
Motion detection 396 (22*18 grid) surveyed area can be set in every screen with adjustable sensitivity levels (requires IP camera support)
AUDIO
Audio compression



G.711U

Audio input 1CH [RCA port] (IPC complex audio input)
Audio output 1CH [RCA port]
Audio intercom input Bidirectional talk [RCA port]
VIDEO RECORDING AND PLAYBACK
Video frame rate 1-30 FPS
Record method Manual/external alarm/MD/timing/intelligent analysis alarm
Playback ability Support 1CH 5MP/3MP, 4CH 1080P, 9/16CH sub stream video playback
Playback mode Regular/Instant replay/Event/External file
Video search Time, calendar, event, channel
Video playback Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast, play, slow play, single frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time ball precise playback
STORAGE AND BACKUP
Interface 2 SATA
HDD capacity 6TB max. per HDD
Backup location Local, network, IPSAN
Backup method USB mobile hard disk, U disk, network backup
FUNCTION
Network protocol TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF
Interface protocol ONVIF, RTSP, GB28181
Mobile surveillance iOS and Android via FSEYE app
Web Browser Supports IE (with or without ActiveX), Chrome, Firefox, Safari
Intelligent Analysis Front (IP Camera) and local detection for: Target counting, object detection, object left/lost, line cross detection, scene change, motion detection, video loss, privacy mask, video tampering
Other Dual password authentication, zero channel
Alert Options Email alert, Audible alarm, Visual alert on monitor, Upload to center (get alerts on the VMS PC client), Trigger alarm output
EXT INTERFACE
Network interface 1x RJ45 100M/1000M adaptive Ethernet port
PoE interface 8CH (IEEE 802.3af)
Alarm input 4CH
Alarm output 1CH
RS-485 Supported
USB ports 2x USB2.0 ports
GENERAL
Power supply DC 48V/3A
Power consumption <10W (Without HDD)
Operation temperature/humidity -10°C ~ 55°C/10% 90%
Dimension (mm) 360(W) x 242.4(D) x 48(H)mm
Weight 2 kg



FAQ


CCTV Calculator Calculate everything!

Visit our NVR IQ Range knowledge base for tips, tricks, how-tos and videos!

Q: I have already installed the plugin on my computer, so why does it still say the IE ActiveX is not registered when I try to access the NVR/IPC via Internet Explorer?
A: You may have to check your security setting on your Internet Explorer, refer to the images attached.



In the box?

  • NVR
  • 48V 3A DC Power supply with detachable IEC lead
  • USB Mouse
  • HDD Connection Kit
    • 2x SATA cable
    • Molex power cable
    • 8 screws
  • Software CD



Videos

Watch our NVR IQ Series Videos over at our YouTube channel.




Short URL: https://bit.ly/3jkbiN8



What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
