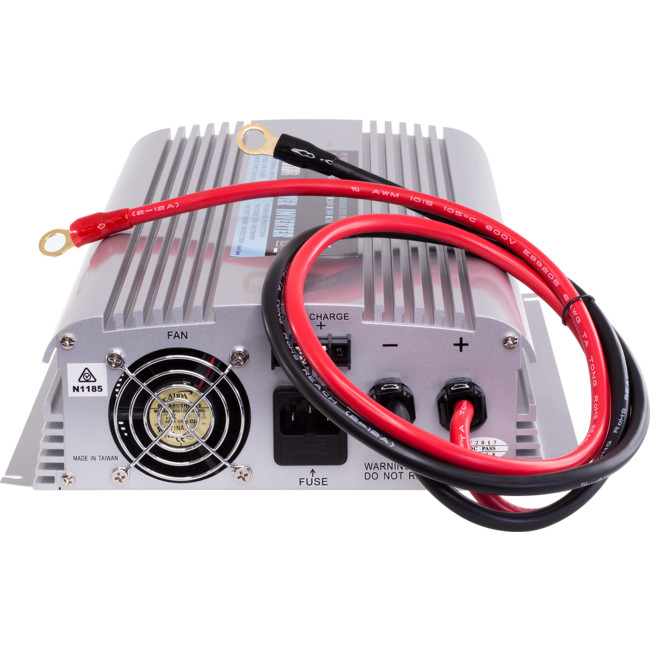

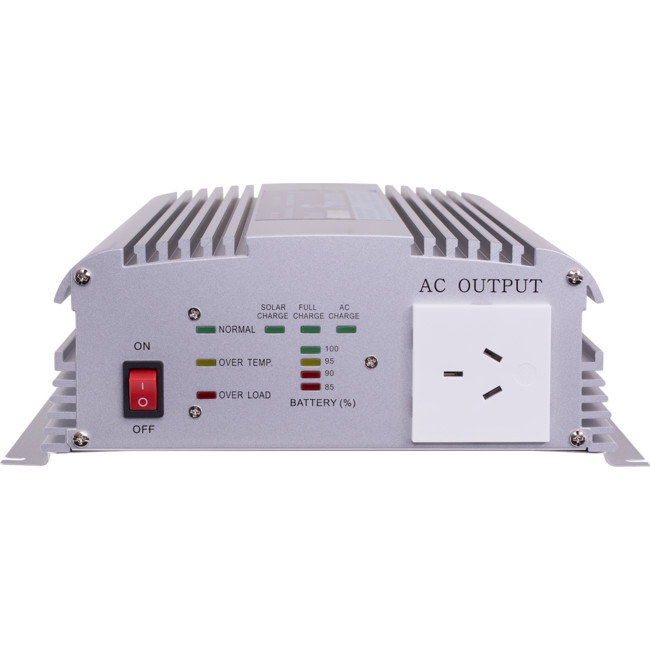

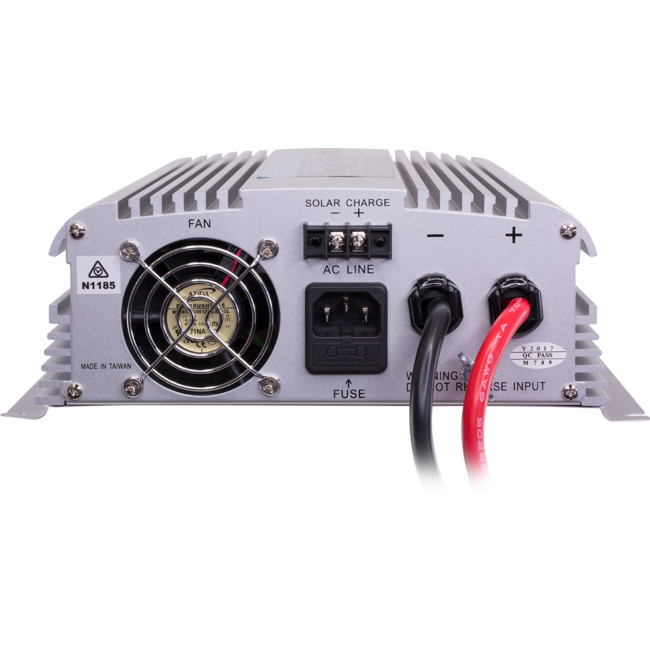

PIN1000C 1000W 12VDC-240AC INVERTER WITH BATTERY/SOLAR INPUTS

PIN1000C 1000W 12VDC-240AC INVERTER WITH BATTERY/SOLAR INPUTS

Additional Images

337791193377911933779119

From a 12V DC power source (such as your vehicle Battery) thisĀ inverter will efficiently and reliably power a wide variety of 240V AC household appliances such as TV’s, computers, game consoles, power tools plus much more. You can also use it as U.P.S when you connect to a battery.

The 1000W Pure Sine Wave Power Inverter is designed to provide years of trouble-free operation and includes automatic safety monitoring circuitry to protect your inverter, and your battery, from inadvertent overload conditions.



SPECIFICATION

  • Input voltage range: 10-15V DC
  • Input full load current: 110A
  • Standby input current: < 0.4A
  • Output voltage (ac): 230V
  • Output waveform: modify sinewave
  • Output frequency: 50HZ
  • Continue output power: 1000W
  • Peak output power: 2400W
  • Efficiency: 85~90%
  • Battery low shutdown: 10+/-0.5V DC
  • Battery low alarm: 10.5+/-0.5V DC
  • Thermal protect: 60+/-5deg C
  • Overload protect: shutdown (micro control)
  • High dc input voltage protect: 15.5+/-0.5v DC
  • Ac output short protect: shutdown (micro control)
  • Battery polarity protect: yes (by fuse)
  • Fuse: 30a x 5 pcs
  • Transfer time: 10m sec
  • Ac charge current (max.): 3 AMP
  • Solar input voltage (max.): 20V
  • Solar charge current(max.): 10A
  • Dimention (LxWxH): 380x210x85mm
  • Weight: 4.3kg
