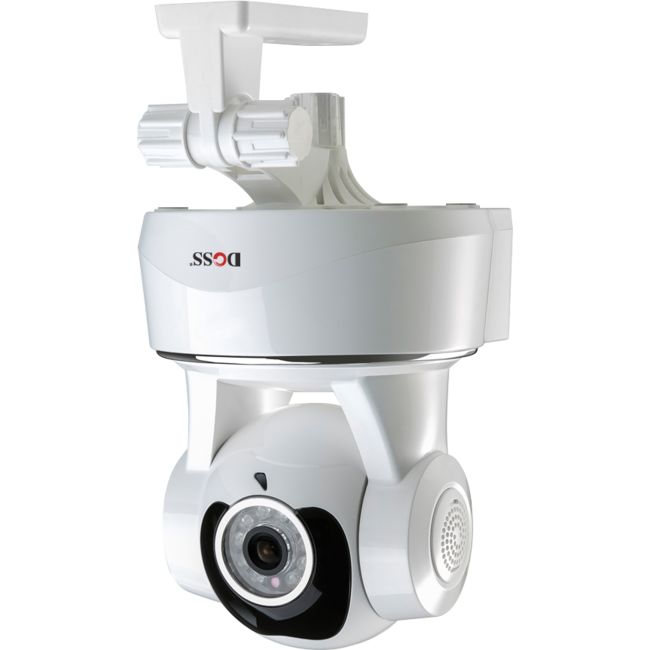

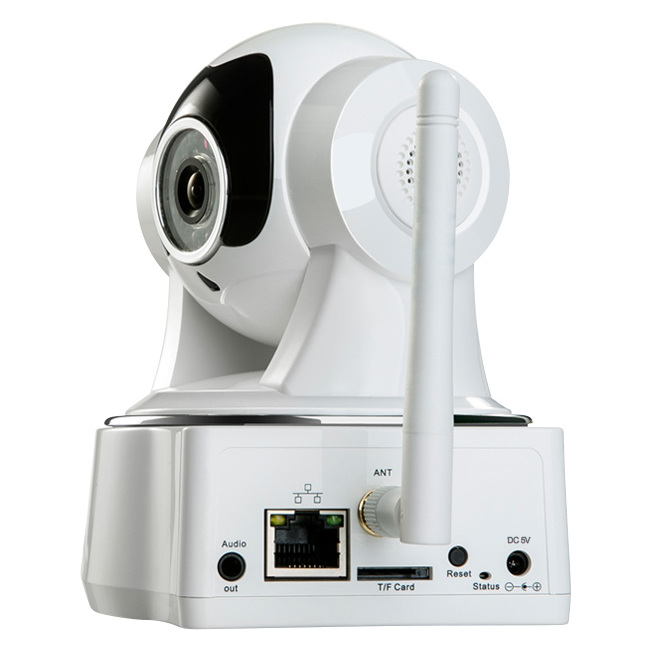

PT10QRW H.264 720P WIRELESS PAN/TILT IP CAMERA
Discontinued
The new PT10QRW removes all the difficulties of viewing your IP Cameras over the internet—connect to your camera anywhere in the world via your smartphone or PC without the confusing configuration of Dynamic DNS Servers or Port forwarding! Simply scan the provided QR code and you will be instantly connected to your camera. As if the ease of viewing was not enough, the ability to remotely Pan and Tilt the camera view provides a level of coverage
a static camera never could!
If your network goes down, or your internet is not always connected, recording of Motion Triggered events can still take place, recording directly to any installed Micro SD Card (up to 32GB; not supplied). You can later browse the recorded videos or images for review via your home network without the need to remove the card!
Night-time surveillance can often be a big problem with other IP cameras. Some may attempt to solve this problem with the addition of IR Illumination however this can result in falsely coloured day-time images. The PT10QRW not only features Automatic IR Illumination (activating at low light levels) with a range up to 5m, but also automatically adjusts the sensor’s colour filter, resulting in the best image quality in both day- and night-time! Along with the HD Video capture, and H.264 video encoding, your captured images and video will always be the highest quality!
Features
- 720p HD Video recording
- H.264 and MJPEG encoding
- Dual-stream recording for viewing and archival purposes
- Automatic Day/Night modes
- Auto IR Illumination
- Auto IR Colour filter
- Remote pan and tilt
- Pan: 270°
- Tilt: 90°
- Motion detection with Alert and Record modes
- Record directly to installed Micro SD card (up to 32GB; not included)
- Send an alert to your phone via Email and captured images are uploaded via FTP
- Dual networking: both Ethernet and Wi-Fi connections possible
- Two-way audio
- Built-in microphone captures your baby’s cry or dog barking
- Audio output jack allows connection of external speaker for talk-back
- Access your camera anywhere in the world with zero network configuration!
- View on your mobile smartphone by scanning the provided QR code
- View on your PC using a simple, unique address.
- Wall and ceiling mounting hardware included!
Specifications
| Image Capture | Sensor | Mega pixels CMOS sensor |
|---|---|---|
| Minimum illumination | IR lights on, 0 Lux | |
| Lens | f=3.6mm, Fixed Iris | |
| IR-Cutter | Supports automatic IR and colour filter change | |
| Pan/Tilt | Pan | 270° |
| Tilt | 90° | |
| Assistant | Lighting Control | Auto/manual control |
| Lighting | 10x Infrared LEDs (850nm), 5m distance | |
| Video and Audio | First Stream Resolution | 720P (1280×720) 640×360 320×180 |
| Second Stream Resolution | 640×360 / 320×180 | |
| Compression | H.264/MJPEG | |
| Frame rate | 30fps | |
| First Stream Bit rate | 1.024Mbps ~ 4.096Mbps | |
| Second Stream Bit rate | 90kbps ~ 512kbps | |
| Image Rotation | Flip / Mirror | |
| OSD | Yes | |
| Audio Compression | G.711/G.726 | |
| Network | Basic Protocol | TCP/IP, HTTP, SMTP, RTSP, FTP, DHCP, DDNS, UPNP, NTP |
| Other Protocol | 802.11b/g/n | |
| Other Features | Mobile Phone View | Yes |
| Video control | Yes | |
| Dual way audio | Yes | |
| Memory | Snap or video into Mini SD card | |
| Browser SD card | View or download from network | |
| Motion Detection | Yes | |
| On-Trigger Actions | Email/FTP/SD storage/send message to alarm server | |
| User Setting | Three levels | |
| Date/ Time Setting | Yes | |
| Upgrade | Upgrade from network | |
| DDNS | A free DDNS provided by manufacturer | |
| Hardware Interface | Ethernet | 10Base-T/100base-TX |
| Memory | Micro SD | |
| Alarm In | N/A | |
| Alarm Out | N/A | |
| Audio In | Internal mic | |
| Audio Out | Audio output interface x1 (3.5mm jack) | |
| Physical Index | Weight | 420g |
| Main body | 115mm(L)×110mm(W)×125mm(H) | |
| Power | DC 5V | |
| Power consumption | <6W | |
| Operating temperature | -20°C ~ 50°C | |
| Humidity | 10% ~ 80% non-condensing | |
| PC Software | OS Support | Microsoft Windows 98 / 2000 / XP / Vista Mac OSX |
| Browser | Internet Explorer 7.0 or above / Safari / Firefox / Chrome etc. | |
| Application Software | LiveIPC |
What you need to know for new CCTV installations
Cameras
- What does each camera need to see? i.e. how far, how wide, how much detail?
- What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
- How will it be mounted, and are there any style considerations?
DVRs
- How many cameras does it need to monitor, allowing for any expansion?
- Do you need full D1 (576 line) recording on all channels?
- How many days of recording at what quality needs to be stored?
Cabling
- Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?
Power
- Will you supply power locally to each camera, or have one central supply?
- What size of UPS do they need?
- Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?
Networking & Remote Access
- Does your customer want to view their cameras remotely?
