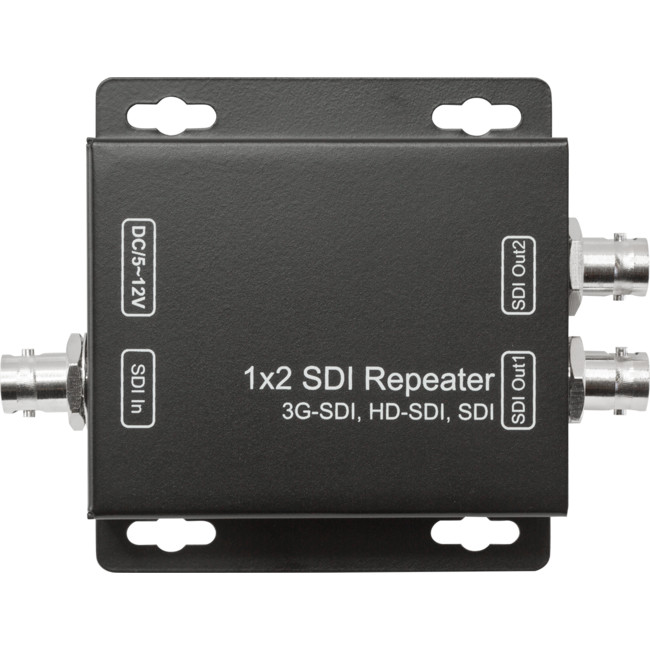

SDI2SP 1-IN 2-OUT SDI AMPLIFIER

SDI2SP 1-IN 2-OUT SDI AMPLIFIER

Additional Images

431511664315116643151166

Discontinued

Features

  • Distributes 1 SDI input signal to 2 SDI outputs simultaneously
  • Work as repeater to transmit up to 120m
  • Re-clocking function capability— unlimited repeater connection
  • Support SDI Standard: SD-SDI, HD-SDI, 3D-SDI
  • Data Rates: 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
  • DC 5V~12V (Power consumption less than 2W)

Specifications

Re-clocking Function Yes
SDI Standards SD-SDI, HD-SDI, 3G-SDI
HD/SD-SDI Detection Auto
Supported Protocols SMPTE 259M
SMPTE 292M
SMPTE 424M
Data Rates 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
Video Support 480i @ 60Hz, 720p @ 50/ 59.94/ 60Hz,
1080i @ 50/ 59.94/ 60Hz,
1080p @ 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60Hz
SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance 75 ohms
Cable Equalization HD-SDI up to 120m
SD-SDI up to 200m
Unlimited repeater connection
Audio Sampling rate 48Khz
Impedance 75 ohms

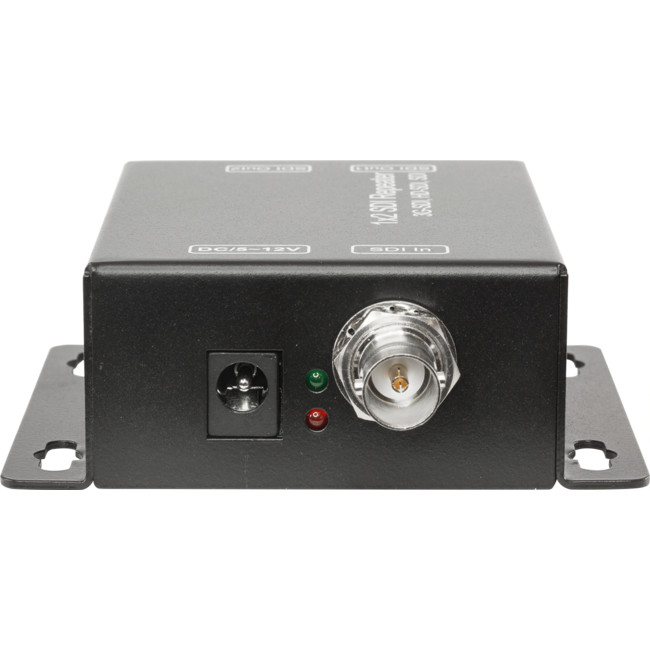

Input 1x BNC [SDI]

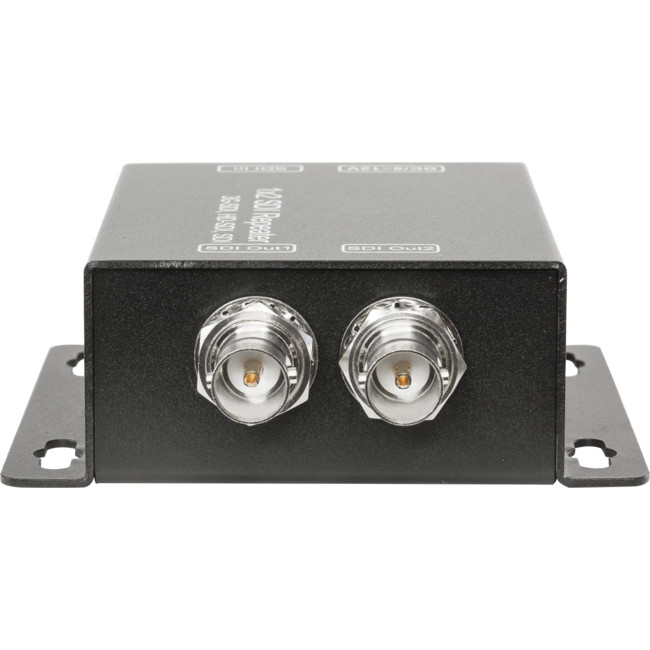

Output 2x BNC [SDI]
Power Adapter 5V~12V DC
Power Consumption(Max) 2W
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C~ 60°C
Relative Humidity 20~90% RH (no condensation)
Housing Material Metal case
