T700A 7″ CCTV TESTER ANALOG, HD CAMERAS, IP CAMERA
Discontinued

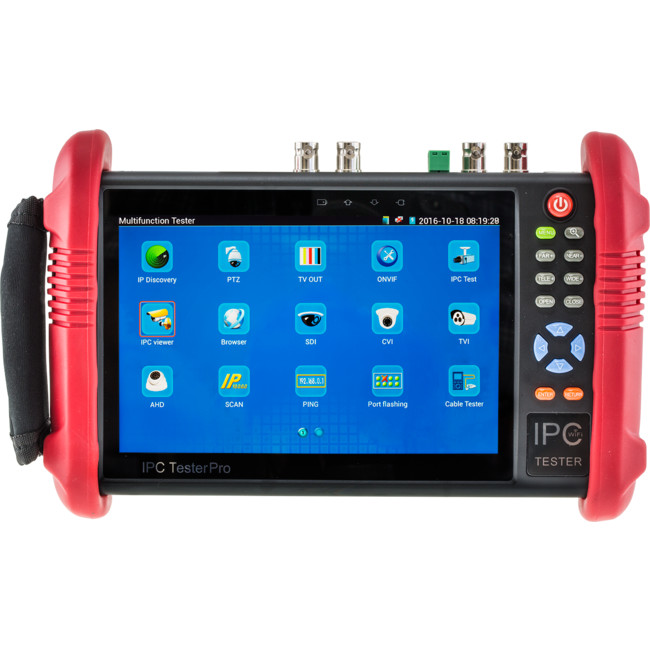

The new DOSS T700A 7 Inch IP camera tester is developed for on-site installation and maintenance of video monitoring system. It can be used to test analog, HD-SDI, AHD, HD-CVI, HD-TVI and IP cameras.
It also equipped with IP address searching, Ping testing and other network testing functions. This CCTV tester is an ideal tool to efficiently reduce on-site installation time and makes testing work way much easier.
Features
- Compatible with over 30 protocols, such as PELCO-D/P, Samsung, Panasonic etc
- Analog camera display, PTZ control, video record and playback. Adjustable LCD brightness/ contrast/ colour saturation
- Ping test
- Ethernet port working status testing
- Suitable for analog, HD-SDI, AHD, HD-CVI, HD-TVI and IP cameras installation
Specifications
| Display | 7 inch capacitive touch screen, 1280*800 resolution |
| Network port | 10/100M auto adjust, RJ45 port |
| WIFI | Built in WIFI function for wireless cameras installation |
| Zoom image | Yes |
| HDMI output | 1 channel HDMI output, supports 1920*1080P |
| HD-SDI signal | 1 SDI in |
| HD-TVI signal | 1 HD-TVI in |
| HD-CVI signal | 1 HD-CVI in |
| AHD signal | 1 AHD in |
| Analog video signal | 1 BNC video in & 1 BNC video out, supports Pal/NTSC |
| Audio input | 1 |
| PTZ protocol | Yes |
| Colour bar generator | Supported. For monitor or video cable testing |
| Network colour bar generator | Supported. For network status testing |
| UTP cable tester | Supported. For identifying connected cables. |
| Data monitor | Capture and display command data of RS485 from controlling device |
| Snapshot, video record and playback | Supported. |
| Network testing | IP address scanning, Link monitoring, Ping testing |
| POE tester | Display power supply voltage and cable connection status |
| Power out-1 | DC 12V output, Max.2A |
| Power out-2 | DC 5V output, Max 2A |
| Power adapter | DC 12V 2A |
| Battery | Built-in 7.4V polymer li-ion battery, 5800mAh |
| Battery recharge time | 5-6 hour charging will give approx 10 hours working time |
| Language | English/ Chinese |
| Auto off | 1-30 mins |
| Working temperature | −10°C-50°C |
| Working humidity | 30%-90% |
| Dimension | 240*154*46mm |
| Weight | 0.65Kg |
