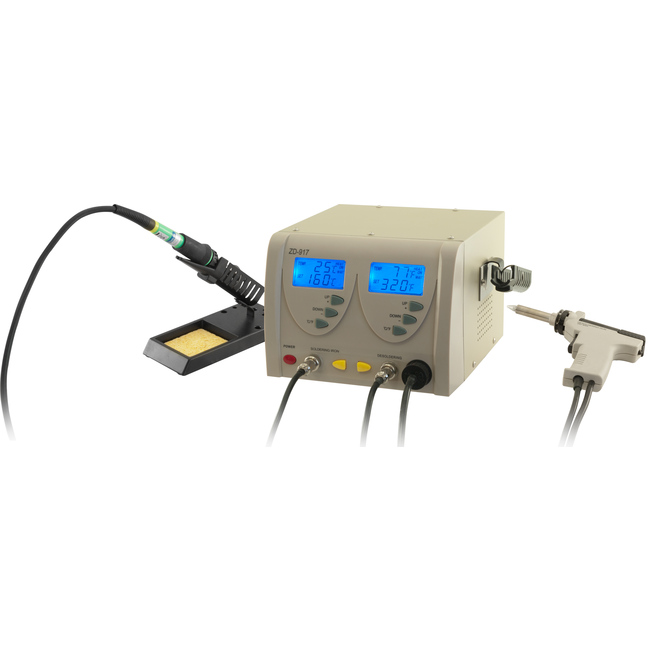

ZD917-RFB 2-IN-1 LCD DISPLAY SOLDERING/DESOLDERING STATION

Features

REFURBISHED STOCK

Please note, this item is refubished and has a minor scratch on the surface. It is in full working order.

The ZD-917 soldering station is a high-performance, multi-functional station for electronic product research, production and rework. The soldering iron and the desoldering gun tool of the soldering station are automatically controlled by two micro-processors. The digital control electronics, high-quality sensor, and heat exchange system guarantee precise temperature control at the soldering tip.

The highest degree of temperature precision and optimal dynamic thermal behavior under load conditions is obtained by the quick and accurate recording of the measured values in a closed control circuit. This design is specifically for the lead-free production techniques.

The high power and slim design of the iron makes it a great choice for fine soldering work. The sensor on the soldering tip can control the soldering temperature quickly and accurately and the heating element is made of PTC. This iron gun is applicable for fine desoldering work due to its high power and gun type design. The heating element is made of PTC and the sensor on the desoldering tip is able to quickly and accurately control the desoldering temperature.



Specifications

Soldering Station
Voltage Supply: 220-240V AC
Power Consumption: 60W+80W
Main Fuse: 3.15A
Function Display: LCD

Soldering Iron
Voltage: 24V AC
Power: 60W heat up rating 130W
Temperature: 160°C-480°C
Heating Element: Ceramic heater

Desoldering Gun
Voltage: 24V AC
Vacuum Pressure: 600mm HG
Power: 80W
Temperature: 160°C-480°C



Package Contents

  • 1x ZD917 main unit
  • 1x ZD415 soldering iron with N4-1 tip
  • 1x soldering iron stand
  • 1x ZD552 desoldering gun
  • 1x Tip N5-1 Ø1.0mm
  • 1x Tip N5-3 Ø1.3mm
  • 1x Filter 5519 Ø20.8mm
  • 3x Filter 5518 Ø16.8mm
  • 3x Soldering Iron Clearer Pin Ø0.7/0.9/1.2mm
