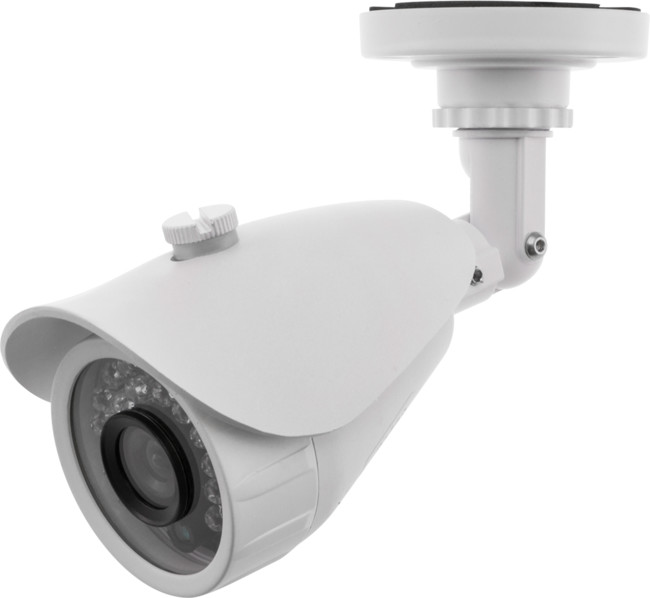

The IN15ECO has been recently upgraded from a 1/​4" CCD to 1/​3" Sony Super HAD II CCD!

Features

  • 1/​3" Sony Super HAD II CCD
  • NEXTCHIP 2030 DSP Chipset
  • 480 TVL Resolution
  • 10m – 15m IR Range


var c = ‘DOSS Security Camera Training 2013‘; function OpenWindowWithContent( con ) { var w = window.open( ”,’DossSecurityCameraTraining2013’, ‘width=900, height=520,location=0, menubar=0, toolbar=0’ ); var d = w.document.open(); d.write( con ); d.close(); }

Click here to watch the DOSS Security Camera Training 2013 series

Download the latest DOSS CCTV Cameras Sellsheet

Specifications

.rpg_table { border-collapse: collapse; width: auto; } .rpg_table th, .rpg_table td { padding: 5px; min-width: 150px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }
Model IN15ECO

Sensor

 1/​3" Sony Super HAD II CCD
DSP NEXTCHIP 2030
Resolution 480 TVL
Effective Pixels NTSC: 510 x 492
PAL: 500 x 582
Lens 3.6mm
Lens Type Fixed
Lens Origin China
Approx View Angle (H) 90°
IP Rating IP66
IR LEDs 24x Ø5mm
IR Range 10m – 15m
Adjustable IR Brightness no
WDR (Wide Dynamic Range) none
Sens-up no
OSD no
Inline Controller no
Noise Reduction no
Backlight Compensation no
Image Colour Adjustment?
(ie brightness/​contrast / tone/​saturation/​sharpness) 		no
Mirror function
(Horiz / Vert / Rotate) 		no
Privacy Zones no
Motion Detection Zones no
RS-485 no
Power
(with IR on where applicable) 		12VDC / 400 mA

.sony-camera { margin:0; border-collapse:collapse; padding:0; width:450px !important; } .sony-camera td { padding:5px; margin:0; width:10%; border:0 none !important; } .sony-camera .pad-left, .sony-camera .pad-right { width:0; } .sony-camera td[align=center]{ text-align:center } .sony-camera td[valign=middle]{ vertical-align:middle }

Sony’s Super HAD CCD II offers improved characteristics over the Super HAD CCD Sensor and other CCD Sensors.

  • Less space between On-chip microlenses and lightsensors
  • Improved and longer life colour filters
    • Up to 100 times the life of previous colour filter
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • Increased sensitivity to near IR range
    • Lower noise
Microlens
Structure
Other CCD Sensors Sony Super HAD II CCD
