Discontinued

Features

CCTV Calculator Calculate everything!
  • 1/​3" Pixelplus NTSC/​PAL CMOS sensor
  • Pixelplus PC1089 chipset
  • 600TVL Resolution
  • Approx 90° angle of view!
  • 10-15m IR Range
var c = ‘DOSS Security Camera Training 2013‘; function OpenWindowWithContent( con ) { var w = window.open( ”,’DossSecurityCameraTraining2013′,’width=900, height=520, location=0, menubar=0, toolbar=0’ ); var d = w.document.open(); d.write( con ); d.close(); }

Click here to watch the DOSS Security Camera Training 2013 series

Download the latest DOSS CCTV Cameras Sellsheet

Specifications

.rpg_table { border-collapse: collapse; width: auto; } .rpg_table th, .rpg_table td { padding: 5px; min-width: 150px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

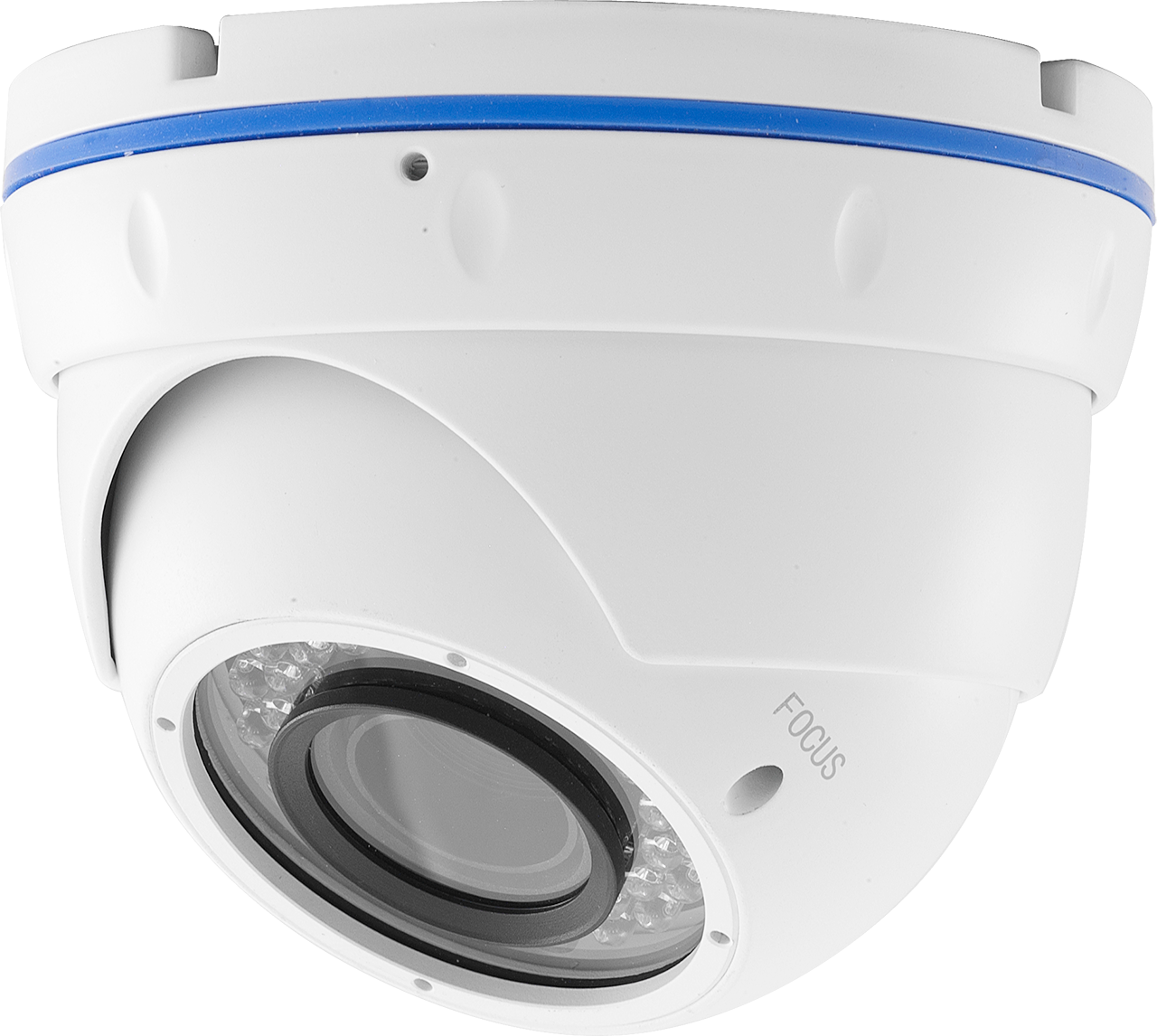

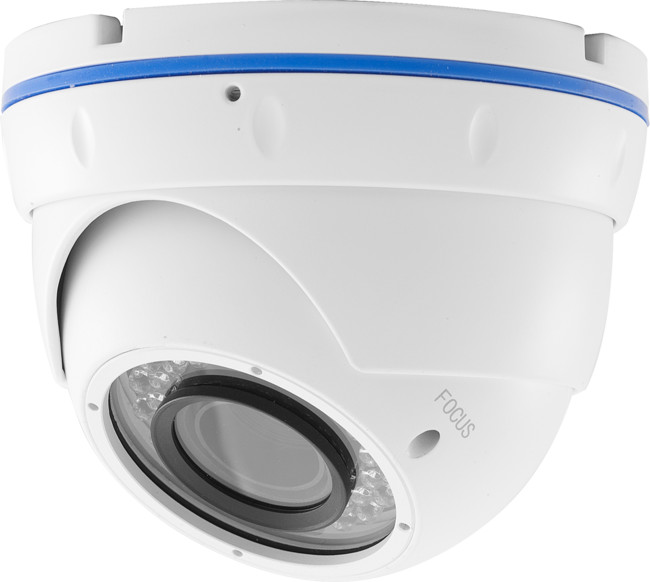

Model DOME15ECO

Sensor

 1/​3" Pixelplus NTSC/​PAL CMOS sensor
DSP Pixelplus PC1089 chipset
Resolution 600TVL
Effective Pixels NTSC: 768 x 494
PAL: 752 x 582
Lens 3.6mm
Lens Type Fixed
Lens Origin China
Approx View Angle (H) 90°
IP Rating IP??
IR LEDs 24x Ø5mm
IR Range 10m – 15m
Adjustable IR Brightness no
WDR (Wide Dynamic Range) no
Sens-up no
OSD no
Inline Controller no
Noise Reduction no
Backlight Compensation no
Image Colour Adjustment?
(ie brightness/​contrast / tone/​saturation/​sharpness) 		no
Mirror function
(Horiz / Vert / Rotate) 		no
Privacy Zones no
Motion Detection Zones no
RS-485 no
Power
(with IR on where applicable) 		12VDC / 400mA
Dimensions 108Øx89H
