LCDP21B 30KG MEDIUM LCD BRACKET

LCDP21B 30KG MEDIUM LCD BRACKET

Downloads


Sell Sheet (1.6mb)


User Manual

Discontinued

Doss Bracket Range PDF

A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
PDF file View the entire range of Doss Brackets

Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.

The LCDP21B is designed for newer, lightweight LED, LCD, Plasma and 3D TVs. Its extremely low profile design perfectly compliments thin panel televisions that are increasing popular in the market.

  • Kick stand feature to allow for easy cable management
Class: Medium
Mount: Wall/ Wire mount
Max Weight:

30 kg

Recommended TV Size: up to 65"
Compliance: Vesa
Vesa sizes (mm): 200 x 200
300 x 300
400 x 400
600 x 400
Tilt: FIXED
Turn: FIXED
Distance from Wall: 10 mm
Back Plate Dimension:
Material: Steel wire and plastic
Bracket Weight: 0.4 kg
Colour:

Black

Warranty: 12 months

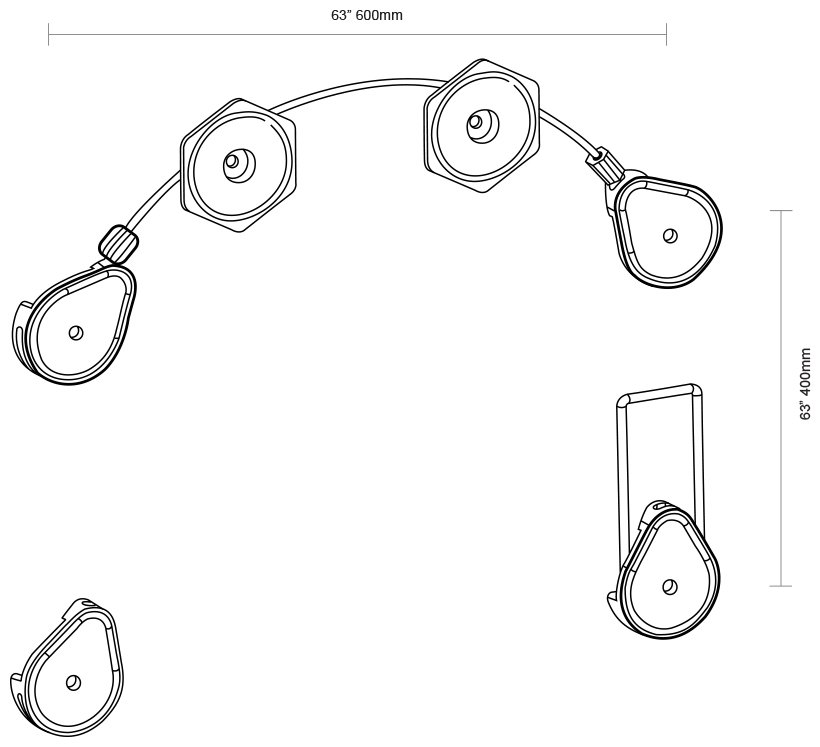

Line Drawing

Line drawing
Click on image to view larger version

Download Installation Instructions [PDF]
