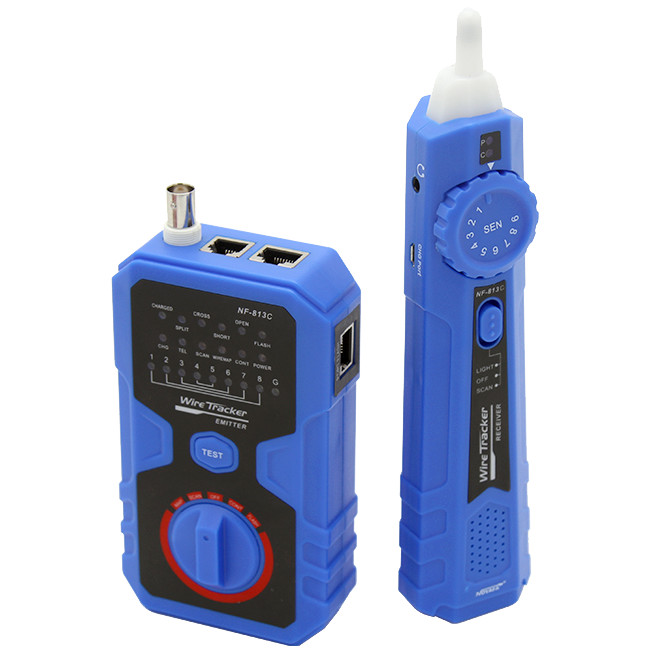

NF813C – CABLE TRACER WITH AC FILTER

NF813C – CABLE TRACER WITH AC FILTER

Additional Images

443651454436514544365145

Features:

  • Quickly finding the required line pairs among numerous ones.
  • Trace cable with continuous and clear tone, AC Current rejection.
  •  It tests physical connection status of network cable, such as open, short, miswire and split connection
  • Port flash function directly find target cables connected with switch.
  •  Telephone Line Test: judging TIP or PING line and judging whether the telephone line is idle, ringing or off-hook.

Specification:

Transmitter specifications NF-813C
The mas distance of cable mapping 305m
Cable test types 130kHz
Crosstalk test Yes
Tone mode 2 tones adjustable
Max signal voltage 8Vp-p
Max distance of transmission 600m for RJ45 & RJ11 cable
100m for BNC cable
Battery type 3.7V lithium battry, 1400 mah
Size (mm) 135x78x35mm
Receiver specifications NF-813C
Port RJ45-8P
Anti-jamming yes
Battery type 3.7V lithium battry, 1400 mah
Size (mm) 203x45x33mm
