DESCRIPTION

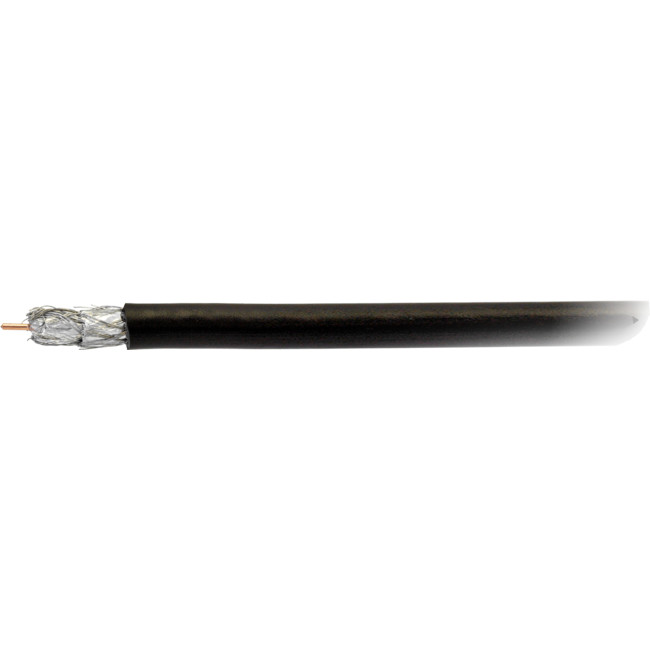

Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2 × screening of aluminium tape covered with woven aluminium braid outer conductor.

• 1.02mm copper clad steel centre conductor (Conductivity 20%)
• 2 × Aluminium 45% braid & 2 × Sealed APA tape
• Dielectric: 4.57mm Foam Polyethylene
• First Shield: Bonded AL Foil
• Second Shield: 45% AL Braiding
• Thrid Shield: AL/PET
• Fourth Shield: 45% AL Braiding
• Suitable for UHF, Pay, Satellite – Ø7.40mm Jacket
• Nominal Impedance: 75Ω ±3
• Nominal Velocity of Propagation: 85%
• Nominal Capacitance: 50pF/M
• Speaker Test: 4000V AC
• Attenuation (dB/100m):
  • 4.538 @ 55MHz
  • 8.522 @ 211MHz
  • 12.828 @ 450MHz
  • 18.254 @ 870MHz
  • 19.642 @ 1000MHz
  • 23.899 @ 1440MHz
  • 29.673 @ 2150MHz
  • 35.386 @ 3000MHz

Available In

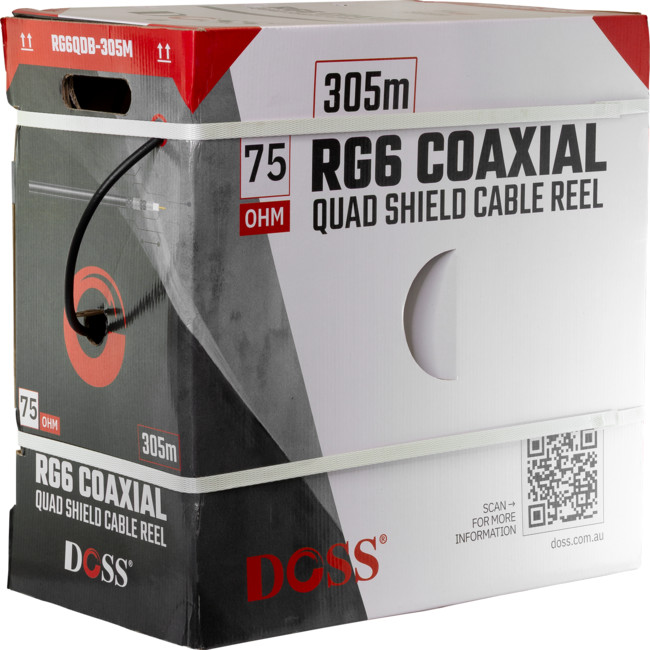

• 305m Dispensing Box with Reversed Metre Marking (RG6QDB-305M)
• 100m Roll (RG6QDR-100M)
• 30m Roll (RG6QDR-30M)
• By the metre (RG6QDB-1M)

Downloads

pdf; 652kB Doss RG6QUAD attenuation report (100m)

pdf; 530kB Doss RG6QUAD attenuation report (30m)
