IT NETWORK & DATA, ADSL AND NETWORKING

24 PORTS 420W POE SWITCH

09051454

|

POE24420

Support IEEE802.3 x full-duplex flow control

Support End-Span method, complies with IEEE802.3 af/at standards

Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at standards

  • Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe
Discontinued
    24 PORTS 420W POE SWITCH
  • Description
  • RESOURCES

    • Description

    View Similar

    product1
    USB EXTENSION OVER CAT5 [100M]
    product1
    USB EXTENSION OVER CAT5 [50M]

    DESCRIPTION

    24-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch

    Features

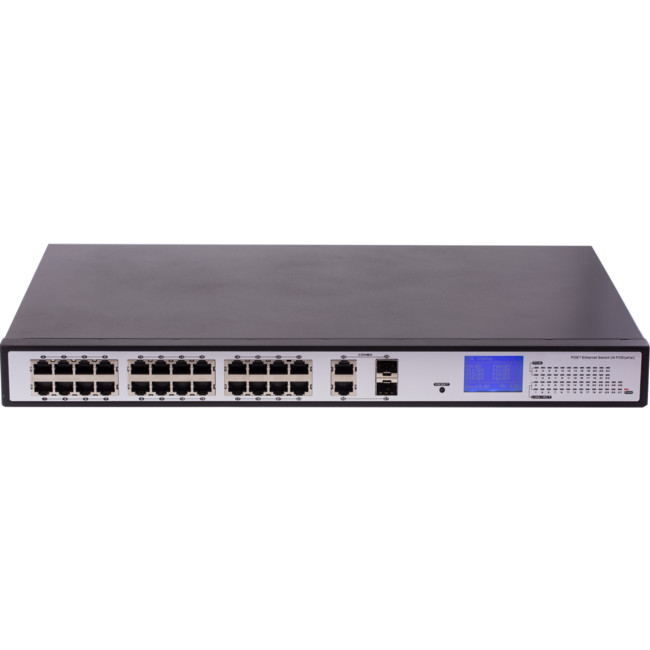

    • Provide 24 x 100Mbps Ethernet ports, 2 x 1000Mbps combo up-link port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port)
    • Various LED display functions can real-timely display the device’s current working conditions, and help prompt facility and remove trouble easily.Support End-Span method, complies with IEEE802.3 af/at standards, can supply max 30W power which is possible to power high-power infrared cameras.
    • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at standards.
    • Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX.
    • Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe.
    • Restart function helps master IC reset wholly. Easy for users to solve network failure without swapping ?/li>
    • power supply; Easy to maintain system; Help monitoring pictures recover quickly.
    • Excellent lightning protection, lightning capacity up to 4KV
    • Easy to install and operate on walls or on the desktops

    Overviews


    POE24420 is specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 24 x 100Mbps Ethernet ports and 2 x 1000Mbps combo uplink port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port), can effectively prevent whole system from broadcast storm so that make the data transfer more safe.
    This general network switch and PoE network switch.can meet customers’ general demands. PoE network switch with PoE function, designed for high-definition network cameras’ internet access. It provides 24 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.

    Applications

    • Security Monitoring System
    • Multimedia Network Teaching System
    • Medical Monitoring Display System
    • Industrial Automation Control System
    • Banking, securities, financial information display system
    • Remote Network Server Monitoring
    • Department Store Security
    • Casino Security
    • Hospitals, Airports and banks
    • School Campuses

    Technical Specifications



    Model

    POE24420

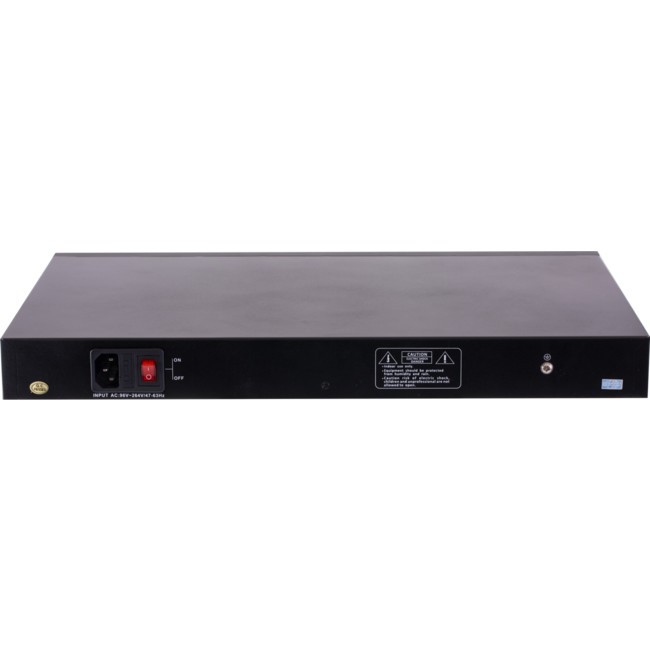

    Power Supply

    Power Supply Mode

    AC power supply

    Voltage Range

    AC96~264V

    Power Consumption

    The device<15W,PoE power supply= 420W

    Network Port Parameter

    Network Ports

    1~24 port:10/100Mbps
    Uplink Port COMBO:2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port

    Transmission Distance

    1~24 port:100m??Uplink Port:100m
    The transmission distance of optical fiber port depends on the different SFP modules

    Transmission Media

    1~24Port:Cat5e/6 standard UTP cable,
    Uplink Port COMBO:Cat5e/6standard UTP cable and optical fiber

    PoE Agreement

    IEEE802.3 af/at Standard

    PoE Power Supply Mode

    End-span method

    PoE Power Supply Wattage

    Each port= 30W,
    whole unit=420W

    Network Switch Specification

    Network Standard

    IEEE802.3 10BASE-T?IEEE802.3u 100BASE-TX/FX?IEEE802.3az

    Switching Form

    Store-and- forward

    Data-Caching Mechanism

    4.1M

    MAC Address table

    8K









    Status
    Indicators

    Power Indicator Light

    One power light (red)

    COMBO port indicator

    4 indicator light(green):25/26 port corresponding green light keeps on when the port is well connected,Blinking when transmitting data;27/28 port corresponding green light keeps on when the optical fiber port is well connected, Blinking when transmitting data



    PoE indicator

    24 PoE indicator light(yellow)



    Network Port Indicator

    1~24 port (green light), keeps on when well connected; Blinking when transmitting data

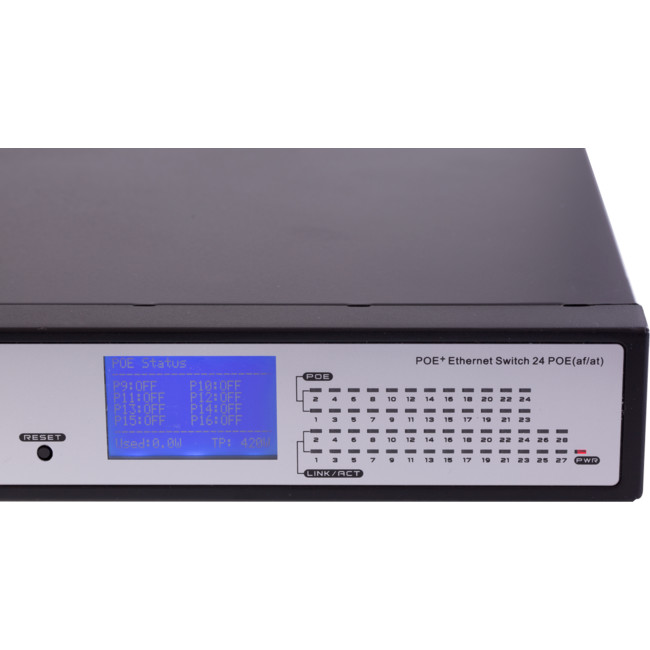

    LCD Display

    User-friendly interface,
    real-time displays the system power,
    PSE PoE power and its working conditions



    Button/ Switch

    Reset Button

    One button., Whole machine will restart while press the button.





    Protection level

    Surge Immunity

    Level 3?executive standard:IEC61000-4-5



    Whole unit Electrostatic Protection

    level 3 Executive standard:IEC61000-4-2



    Operating Environment

    Working Temperature

    0~55



    Storage Temperature

    -40~70



    Humidity(non-congeal)

    0~95%



    Mechanical Attributes

    Dimensions (L*W*H)

    440mmx297mmx44.5mm



    Colour

    black



    Weight

    About.4.25kg



    Reliability

    Mean time between failures (MTBF)

    >50000h
