DESCRIPTION

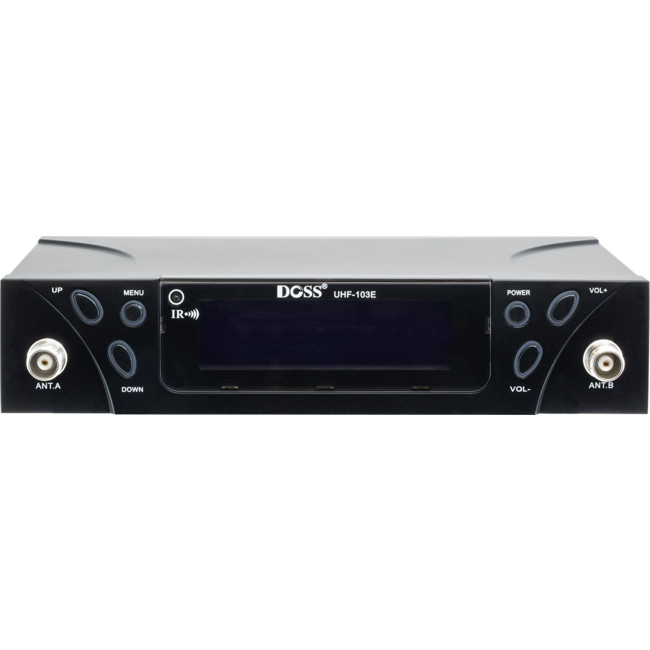

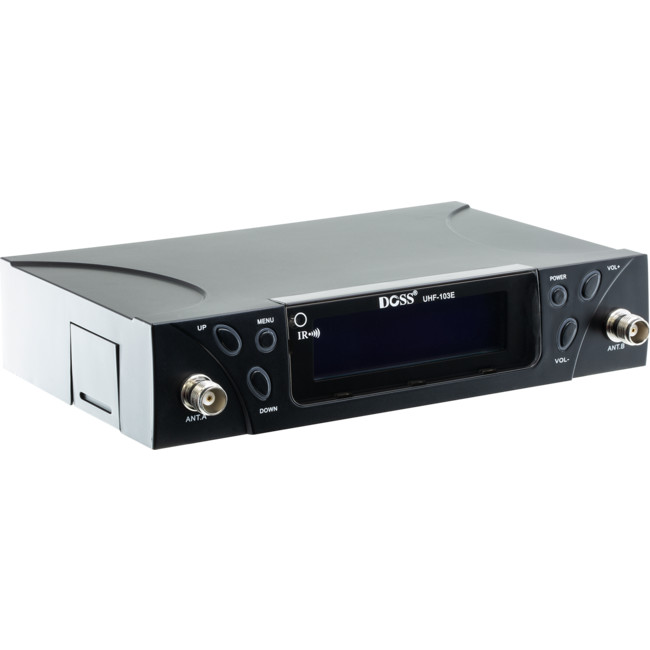

SINGLE CHANNEL UHF WIRELESS HAND HELD SYSTEM KIT

Reliable UHF technology
Reaches up to 100m range, depends on Radio Frequency signalabsorption, reflection, and interference.

Wireless microphone
The lightweight microphone with heart-shaped directional characteristic delivers superb audio quality while reducing unwanted background noise. Its small LCD shows the most important information, the selected group, the set channel,the battery indicator as well as the stored transmission frequency.

User Notice
The frequency range of 654 to 694MHz

Infrared Sync
It could not be simpler, with just a touch of a button, the transmitter and receiver can be synchronized easily.

Auto scan available channel
Manual frequency setting available to operate up to 8 sets of UHF103E simultaneously for a flexible larger installation.

Technical Specs

• Carrier Frequency Range:UHF 654-694MHz

• Operating Temperature range: -18 ºC (0º F)to +57ºC (+135ºF)

• T.H.D: 0.5% typical, ref. +/- 30 kHz deviation, 400Hz tone
• Dynamic range: >105 dB A-weighted
• Operating Range: 100m(approximately 300 feet under typical conditions)
• Audio Frequency Response: +/- 2dB, Minimum 50Hz, Maximum 20kHz
• Audio output level (ref. +/- 30kHz deviation with 400Hz tone XLR connector (into 600 Ohm load): -30dBV, 1/4 inch connector (into 3000 Ohm load): -9dBV
• Output Impedance: XLR connector: 200 Ohm, 1/4 inch connector: 1k Ohm

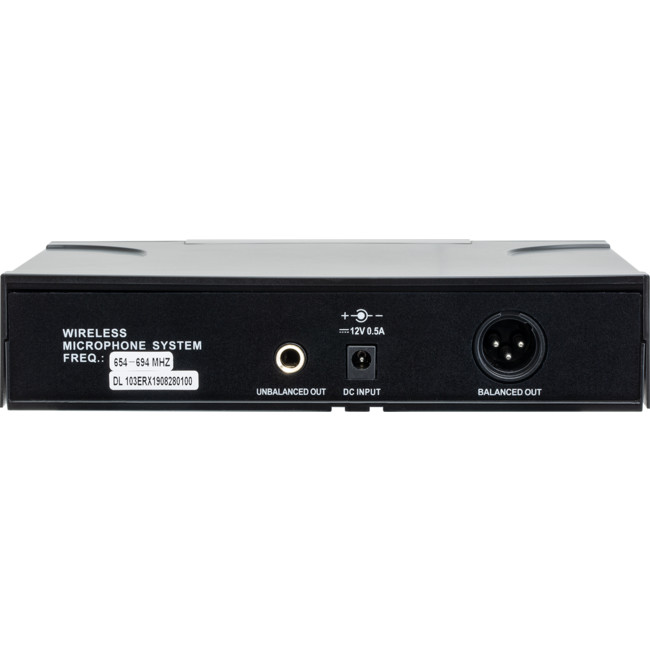

• XLR output Impedance balanced Pin 1: Ground (cable shield) Pin 2: Positive Pin 3: Negative
• Sensitivity: -105dBm for 12dB SINAD, typical
• Image rejection: >70dB, typical

• Power Requirements: 12V DC 500mA supplied by external power supply
• 205(W) x 130(D) x 45(H)mm

Wireless Hand Held Microphone(UH-103E)

• Cartridge: Dynamic (Handheld)

• Antenna: Built-in

• RF transmitter Output: 30mW Max

• Power requirements: 2x AA size alkaline or rechargeable batteries

• Battery Life: +/- 8 hours (Alkaline)

• Dimensions: 230mm length x 50mm diameter

• Weight: 250g (without batteries)

• Housing: Moulded Metal Alloy

Optional bodypack transmitter (UB104E)

• Gain adjustment range: 30dB
• Input impedance: 500K ohm
• RF transmitter output: 30mW maximum
• Dimensions: 90(H) x 68(W) x 26(D)mm
• Weight: 99.8g (without batteries)
• Housing: Moulded ABS case
• Power requirements: 2x AA size alkaline or rechargeable batteries
• Battery life: > 8 hours (alkaline)

Kit contents:

• UHF wireless receiver
• Hand held wireless microphone (UH103E)

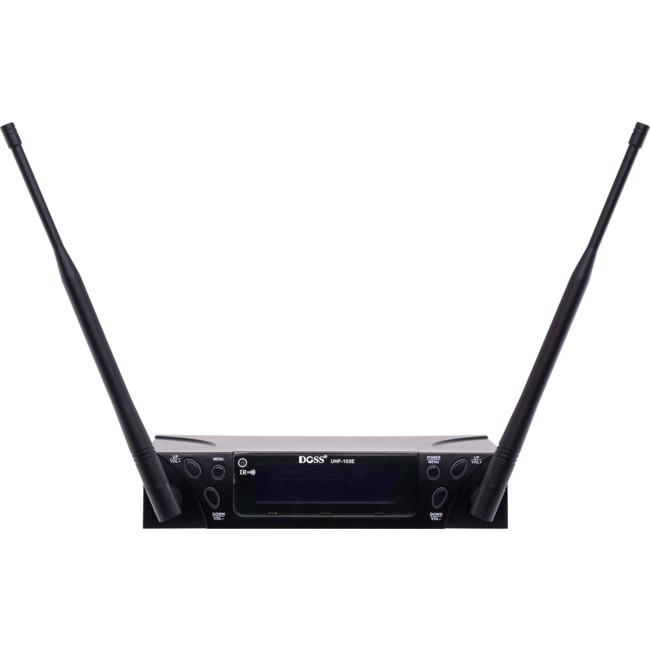

• 2x Antennas
• 1.5m length 6.5mm plug to plug mono lead
• 12V 500mA power supply
• 2x AA batteries
