DESCRIPTION

Features:

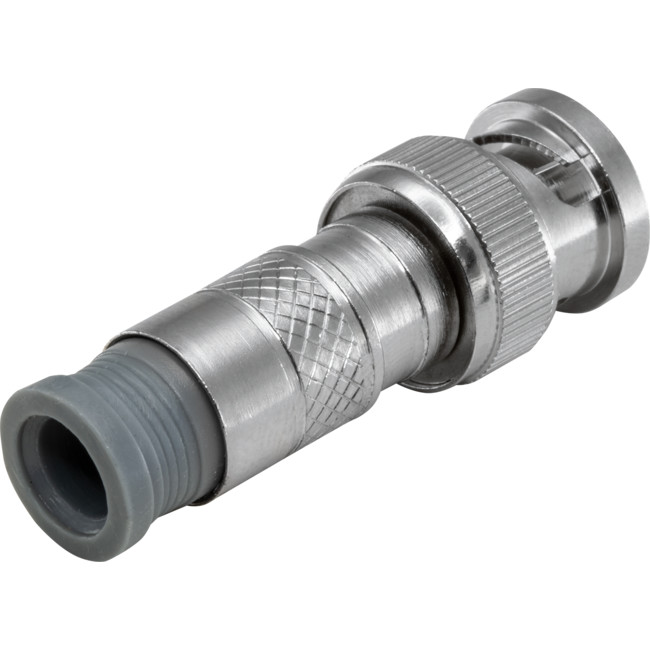

• Connector Type: BNC Compression Connector
• Frequency Range: 0.3-3000MHZ
• Cable Type: RG59
• Impedance: 75ohm
• Shielding Effectiveness: 110db@1 GHz

Structure Chart

Materials

• Hull Material: Brass
• Plating Material: Nikel
• Copper Rate min: 58%
• Plating Thickness: 1.8µ

Mechanic specifications

• Corrosion Resistance: 1000hours
• Cable Assembly Force: < 20lbs
• Tensile Strength: > 40lbs
• Breaking Torque: > 30 in-lbs
• Operating Temperature: -40°C to 60°C

Return Loss:

• 0.3 - 500 MHz: - 42.2dB
• 500 - 860 MHz : - 40.1dB
• 860 - 1000 MHz: - 37.8dB
• 1000 - 3000 MHz : >- 30dB

Insertion Loss

• 0.3 - 500 MHz: - 0.1dB
• 500 - 3000 MHz: < - 0.3 dB
