CCTV, INTERCOM & ALARM, CCTV CAMERAS

DOME 30M IR AHD BLACK CAMERA

43150231

|

DM30AHDB

Signal goes through coxial cable for up to 500m

Directly replacing exist Analog cameras

2.8-12mm lens

  • 20-30m IR distance
  • With OSD menu
  • Black colour
  • IP65
Discontinued
    DOME 30M IR AHD BLACK CAMERA
  • Description
  • RESOURCES

    • Description

    View Similar

    product1

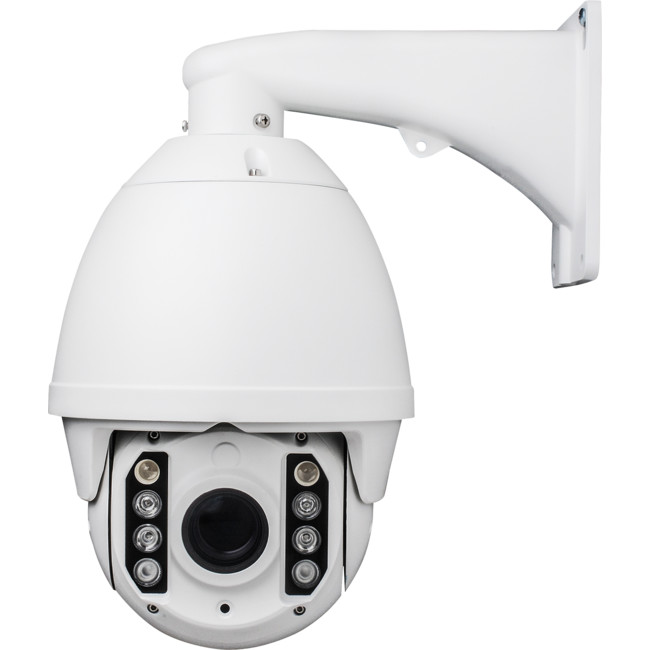

    H.265 2MP 6″ DOME PTZ CAMERA
    product1
    DOME IP CAMERA WITH MICROPHONE

    DESCRIPTION

    Features

    • AHD high definition camera at 1080P resolution
    • Low illumination 1/2.8" SONY 2.43M CMOS sensor
    • 2.8-12mm lens
    • 20-30m IR distance
    • 36 x Ø5 leds
    • HD AHD 1080P, 800TVL analog dual-output
    • AHD coaxial transmission distance up to 500m
    • AHD/ analog signal
    • D-WDR, 2D/ 3D NR, defog , CRR
    • Motion detecton, Privacy zones, BLC and HLC
    • OSD Menu
    • Black colour

    CHANGING OUTPUTS

    For models featuring an OSD controller joystick lead

    • For CVBS output, holdtheOSDkeyleft for 3seconds
    • For AHDoutput, holdtheOSDkeyrightfor 3seconds
    • To toggle between PAL & NTSC, holdtheOSDkeydown for 3seconds

    For models featuring a DIP switch lead

    • For HD CVI output, 1/Off 2/On
    • For Analog/PALoutput, 1/Off 2/Off
    • For AHD output, 1/On 2/Off
    • For HD TVI output, 1/On 2/On

    Specifications

    CAMERA



    Sensor

    1/2.8"SONY2.43MpixelsCMOS

    Effectivepixels

    1920*1080

    HDAHDoutput

    1080P

    Resolution

    800TVL(CVBSinput)

    Min.Illumination

    0Lux(IRON)colour:0.1Lux/F1.2;B/W:0.01Lux/F1.2

    SyncSystem

    Internal

    ScanSystem

    Progressivescan

    Lens

    2.8-12mmM12lens

    ElectronicShutter

    Auto/Manual(X30~1/50000)/FLK

    S/NRate

    ≥50db(AGCOFF)

    Videooutput

    1.0Vp-pcompositevideooutput,75O

    IP rating IP65

    outputmodel

    PAL/ NTSCadjustable

    OSDmenu

    Whitebalance

    ATW/ AWC-SET/ INDOOR/ OUTDOOR/ MANUAL/ AWB

    NR

    2DNR/ 3DNR,OFF

    Imageadjustable

    lightness,contrast,sharpness,AGC

    DWDR

    AUTO/ ON/OFF

    BLC

    BLC/HLC/OFF

    AGC

    ON/OFF/AUTO (1-15)

    TDN

    B/W,COLOUR,AUTO,EXT

    Privacymask

    OFF/ON(4zone)

    Motiondetection

    OFF/ON(4zone)

    Mirror

    horizontal/vertical/HVmirror

    Sens-up

    OFF/ON (X30, X25, X20, X15, X10, X8, X6, X4, X2)

    Lensshadingcompensation

    OFF/ ON

    DPC

    Auto/Manual

    Defog

    OFF/Auto(EffectiveunderB/ Wmodel)

    OSDmenu

    Chinese,Englishetc12languages

    Dual-output

    HDAHD/analogCVBSoptional

    General

    Transmissiondistance

    75 - 3/ 300m, 75 - 5/ 500m

    IRdistance

    		20-30m(36 x Ø5IRled)

    powersupply

    DC12V ±10%

    Power(max)

    280mA ± 10mA (IRON)

    OperatingTemperature

    −20°C~55°C/0%-90%

    Dimensions(mm)

    100(H) * 120 (D) mm

    Weight/ PC(g)

    800g
