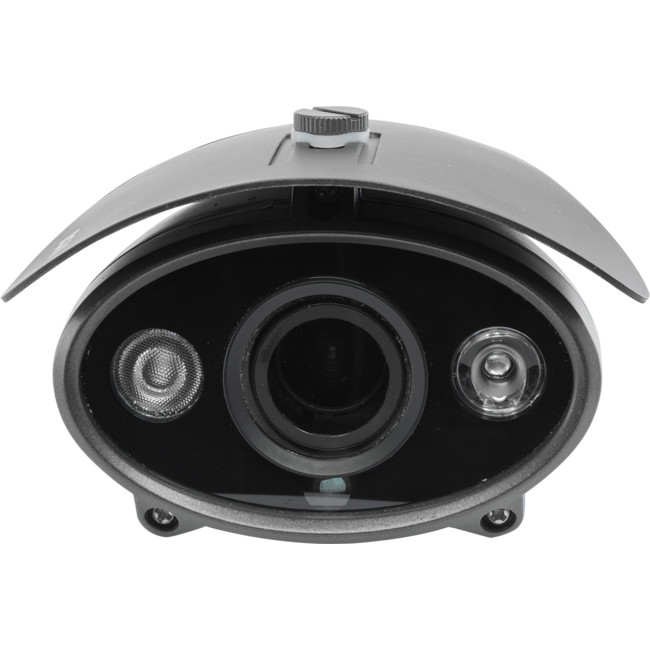

|IN30AHDB2
Adopt low illumination 1/2.9" SONY 2MP CMOS sensor
HD AHD,CHD,THD/1080p, analog 1280H, four in one output
Video coaxial transmission distance up to 500m
CAMERA | ||
Sensor | 1/2.9"SONY2.43MpixelsCMOS | |
Effectivepixels | 1920*1080 | |
HDAHDoutput | 1080P | |
Resolution | 1280H(CVBSinput) | |
Min.Illumination | 0Lux(IRON) | |
SyncSystem | Internal | |
Lens | 2.8-12mm lens | |
ElectronicShutter | Auto/Manual(X30~1/50000)/FLK | |
S/NRate | ≥50db(AGCOFF) | |
Videooutput | 1.0Vp-pcompositevideooutput,75O | |
outputmodel | PAL/ NTSCadjustable | |
OSDmenu | ||
Whitebalance | ATW/ AWC-SET/ INDOOR/ OUTDOOR/ MANUAL/ AWB | |
NR | 2DNR/ 3DNR,OFF | |
Imageadjustable | Brightness,sharpness,AGC | |
DWDR | AUTO/ ON/OFF | |
BLC | BLC/HsbLC/OFF | |
AGC | ON/OFF/AUTO (1-15) | |
Privacymask | OFF/ON(4zone) | |
Motiondetection | OFF/ON(4zone) | |
Mirror | horizontal/vertical/HVmirror | |
Sens-up | OFF/ON (X30, X25, X20, X15, X10, X8, X6, X4, X2) | |
Lensshadingcompensation | OFF/ ON | |
DPC | Auto/Manual | |
Defog | OFF/Auto(EffectiveunderB/ Wmodel) | |
OSDmenu | Chinese,Englishetc12languages | |
Dual-output | HDAHD/analogCVBSoptional | |
General | ||
Transmissiondistance | 75 - 3/ 300m, 75 - 5/ 500m | |
IRdistance | 20-30m(30 x Ø5IRled) | |
powersupply | DC12V ±10% | |
Power(max) | 280mA ± 10mA (IRON) | |
OperatingTemperature | −20°C~55°C/0%-90% | |
Dimensions(mm) | 66(W)*66(H)*166(L)mm | |
Weight/ PC(g) | 400g | |
Expecting AHD but only getting Composite?
Our AHD cameras come out of the box configured to output Composite (CVBS) to allow installers with test monitors to quickly align the camera. Once positioned correctly, you can set the camera to AHD output using the setting shortcuts below:
