43150682
|PHCAM
1/3” SONY Super HAD II CCD
600TVL Resolution
3.7mm M12 lens
This pinhole camera is a great discreet camera for security where obvious surveillance equipment is undesirable. At just over a few centimetres wide, this camera can be installed in just about any location. And withits 600TVL resolution resulting in high quality video, this camera really performs.
| Pick-up device | 1/3” SONY Super HADII CCD |
| Effective pixels | NTSC:768x494, PAL:752x582 |
| Resolution | 600TVL |
| Min. Illumination | Color: 0.02Lux, B/W: 0.002Lux/F1.2 |
| Sync system | Internal |
| Scan system | 2:1 Interlace |
| Pattern | PAL, NTSC |
| S/N ratio | more than 50dB |
| Lens | 3.7mm pinhole M12 lens |
| Electronic shutter | Auto/Anti-flicker/Manual |
| WDR | OFF/ON (0-63 level adjustable) |
| BLC | HLC/BLC/OFF |
| White balance | ATW1/ATW2/MANUAL/FIXED |
| DNR | 2D:ON/OFF |
| Day&Night | Auto/B/W/Color/EXT |
| Motion detection | Off/On (4 areas) |
| Privacy zones | Off/On (8 areas) |
| Mirror | Off/On (horizontal mirror) |
| Image adjustment | Contrast/Sharpness/Saturation |
| AGC | High/Middle/Low/Off |
| Gamma | 0.45/Custom (0.05-1.0) |
| OSD menu | Simplified Chinese/English |
| Video output | 1.0Vp-p Composite Video Output, 75 Ω |
| Power supply | DC12V |
| Power consumption(Max) | 200mA |
| Operation temp | -20°C ~ 50°C |

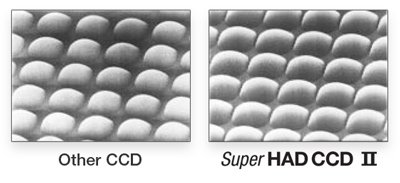

Sony's Super HAD CCD II offers improved characteristics overthe Super HAD CCD Sensor and other CCD Sensors.
