CCTV, INTERCOM & ALARM, CCTV CAMERAS

BULLET 30M IR WHITE IP CAMERA

43160116

|

IN30IPW2

1080p full HD real time recording

Conforms to ONVIF protocols Profile S

Remote access from PC and smartphone

  • Motion detection for multiple timeframe and area
  • Extra BNC and DC connectors to work with DVR
  • White colour
Discontinued
    BULLET 30M IR WHITE IP CAMERA
  • Description
  • RESOURCES

    • Description

    DESCRIPTION

    Features

    The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet makes it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.

    Features

    • 1/2.8" Sony WDR CMOS Sensor
    • Hi3516C DSP+IMX323
    • h.264/ MJPEG encoding
    • Resolution: 1920x1080
    • Built-in intelligence
    • 1080P (Full HD) recording and viewing
    • Conforms to ONVIF (Open Network Video Interface Forum) protocols Profile S
    • 2.8-12mm Lens provides a view of 92° to 28°
    • 20-30m IR distance, 2x IR Array Leds
    • 1/2.8" Sony WDR CMOS Sensor
    • IP66 weatherproof case
    • DC12V with PoE
    • NSR=50db

    Specifications

    Model IN30IPW2
    Camera Sensor 1/2.8" Sony CMOS
    Pixel Count 2.43MP
    DSP Hi3516C
    Resolution 1920x1080
    Lens 2.8-12mm (2MP)
    Lens type
    (fixed/ varifocal:auto/ manual)    		 Varifocal - Manual
    Day/Night ICR
    (Infrared Cutfilter Removal)    		 Auto/ B/ W / Colour / EXT ICR switching
    Approx view angle (Horiz) approx83°
    Minimum illumination 0 Lux/ F1.4 (IR On)
    Electronic shutter Auto/ Manual
    (1/25 ~ 1/10000)
    Encoding Stream 1 resolution Up to
    PAL: 1080P/ 25fps
    NTSC: 1080P/ 30fps
    Stream 1 Encoding h.264/ MJPEG
    Stream 1 Bitrate 16~8000kbps
    CBR/ VBR
    Stream 2 resolution Up to VGA (640*480)
    Stream 2 Encoding h.264/ MJPEG
    Stream 2 Bitrate 16 ~ 8000kbps
    CBR/VBR
    Audio compression G.711A
    64kbps
    Features
    IP Rating IP66
    IR LEDs 2x IR Array Leds
    IR Range 20 - 30m
    Adjustable IR Brightness NO
    WDR
    ATR/ D-WDR    		 DWDR
    Noise Reduction
    (none/ 2D-NR/ 3D-NR)    		 3D-NR
    Image adjustment
    (Brightness/ Colour/ Sharpness)    		 Brightness/ Sharpness
    Image flip(H/ V/ H+V) H / V / H+V
    Privacy zones 4
    Motion detection zones 1
    Password protection Yes
    OSD (Channel/Timestamp) Yes (Channel/ Timestamp)
    Alarm Video loss/ Network loss/ Tamper
    Power over Ethernet Yes
    Networking ONVIF Compliance Profile S (v2.2)
    Protocols supported TCP/ IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPnP, SMTP
    Network interface RJ45 10M/ 100M
    Remote viewing Web-browser/ Apple/ Android
    General Operating Conditions −10°C ~ 55°C/ 0%~90%RH
    Power Supply DC12V/ PoE(IEEE 802.3 AF STANDARD)
    Power Consumption <6W

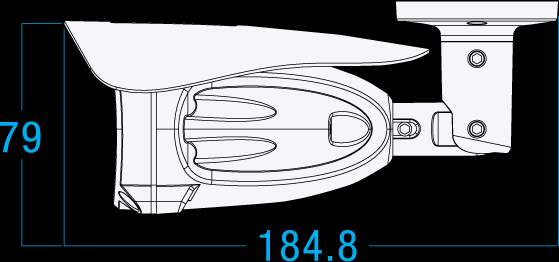

    Dimensions (ØxH/ W x H x L) Ømm
    Weight 800g
