|DM30IPW4M
H.265/H.264 built in smart feature
Motorised 2.8-12mm auto iris lens
No audio and alarm input
| CAMERA | |
| Image sensor | 1/3" 4MP Progressive Scan CMOS |
| Min.illumination | 0Lux/F1.4(IR on)color: 0.5Lux/F1.4, B/W:0.2Lux/F1.4 |
| IR distance | 25-30M(2xIR-III Leds) |
| Electronic shutter | Auto/ Manual(1/25~1/10000), FLK |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Lens | 2.8-12mm motorised lens |
| Lens interface | F14 |
| S/N ratio | =35db (AGC OFF) |
| Output | PAL/NTSC adjustable |
| WDR | DWDR(Off/ Low/ Middle/ High) |
| Light board control | Auto/ Manual/ Off |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180’Š rotation/ Corridor mode(90’Š rotation,270’Š rotation) |
| Slow Shutter | Off/ On |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO ENCODING | |
| Video compression | H.265/ H.264/ MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine/ Main Profile/ High Profile |
| Encoding features | NTSC: main stream: 2592*1520 @20fps/2560*1440@25fps, sub-stream: VGA@30fps |
| Max. Resolution | 4M(2592X1520) |
| Video bit rate | Constant bit rate, variable bit rate (16kbps~8000kbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | / |
| Audio bit rate | / |
| Audio control | Support input/ output volume gain control |
| ROI | Support 4 zones,multi-stage level |
| Watermark function | / |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP |
| Access protocol | ONVIF,GB28181 (optional) |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 4 |
| User permission | User add/modify/delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | Target Counting, Area Detection, Left/ Lost, LineCrossing |
| Event linkage | Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | / |
| Mobile surveillance | Support Apple, Android |
| Device exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encodingresolution |
| System update | Support remote update |
| Other | / |
| INTERFACE | |

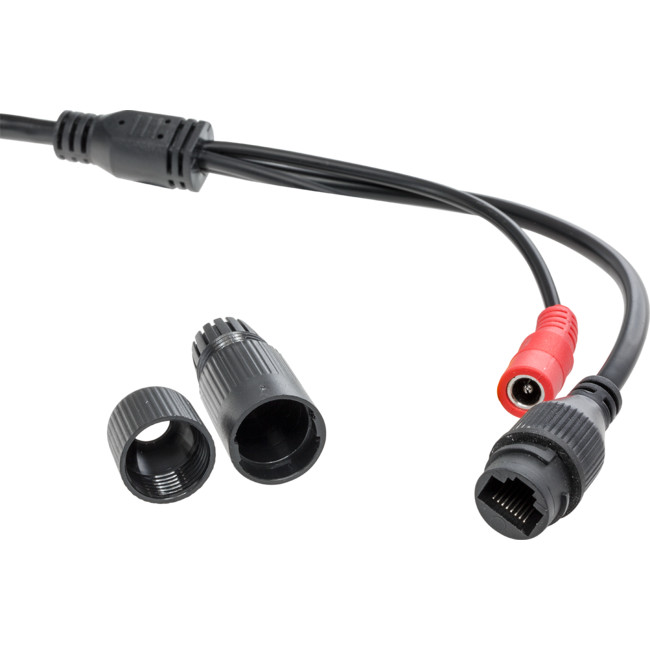

| Network Interface | RJ45 10M/100M network adaptive |
| Analog video output | 1CH 1.0Vp-p Composite video output |
| Audio | / |
| Alarm input | / |
| Alarm output | / |
| Reset | Support |
| RS485 | / |
| TF card | Support Max 128G, Micro SD(SDHC /SDXC) card local-storage |
| Other | / |
| GENERAL | |
| Operating temperature | -20°C ~ 55°C |
| Operating humidity | 0?-90? |
| Protection grade | IP66 |
| Power supply | DC12V /PoE optional |
| PoE | Optional |
| Power consumption (max) | <9W |
| Dimensions(mm) | 120*97mm |
| Weight/PCS(g) | / |
