CCTV, INTERCOM & ALARM, CCTV CAMERAS

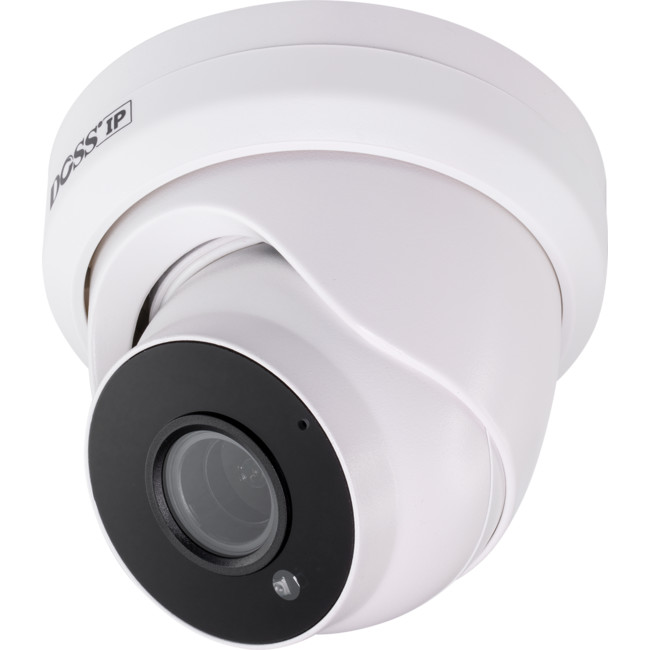

5MP IR30M IP66 DOME IP CAMERA

43160607

|

DM30IPW5M

5MP@20fps, 4MP/3MP/2MP@25fps

1/2.7" Megapixels CMOS 2.7-.13.5mm motorised lens

6x IR Array leds, IR distance up to 30-40 meters

  • Smart humanoid detection
  • H.265/H.264 POE or DC12V
  • ONVIF SLINK HIK Protocol
  • IP66 rating
Discontinued
    5MP IR30M IP66 DOME IP CAMERA
  • Description
  • RESOURCES

    • Description

    View Similar

    product1
    DOME 30M IR WHITE IP CAMERA
    product1
    5MP AHD MINI PINHOLE CAMERA

    DESCRIPTION

    Features

    • Up to 5MP@20fps and 4MP/3MP/2MP@25fps frame rate
    • HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
    • Hikvision private protocol supported, plug and play with popular Hikvision NVRs
    • The 2.7-13.5mm motorized lens makes easy to adjust the focal length and zoom level
    • H.265/H.264 supported, saves bandwidth and storage space
    • 1/2.7" Megapixels CMOS
    • Humanoid detection
    • IR-Cut (Infrared-cut) filters for producing accurate color images
    • IP66 rating
    • 6x Normal IR Array Leds, IR distance up to 30-40m
    • DC12V or POE power options
    • Detection frame 5fps, detect up to 5 people at the same time
    • Support low bit rate and low latency
    • Support Smart IR to avoid Infrared over-exposure at night
    • Support ICR auto switch, realize D&N surveillance
    • Support 3D DNR and digital WDR
    • Support auto-electronic shutter to suit different surveillance environments
    • Support HTTPS transmission with the password, default password 123456

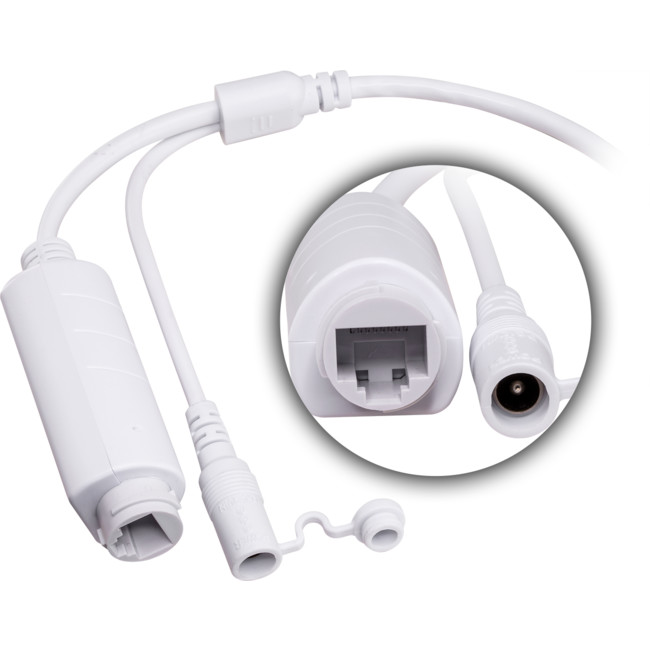

    CONNECTIONS

    • [DC] 12V DC power input
    • [RJ45] Ethernet port

    Specifications

    Camera

    Sensor 1/2.7" Megapixels CMOS
    Lens 2.7-13.5mm Motorized lens
    IR Distance 6x IR Array leds, IR distance up to 30-40 meters
    D-WDR D-WDR (off/low/middle/high)
    IR Led Control Auto/Manual/Off
    DNR Off/Low/Middle/High/Higher
    Defog Off/Low/Middle/High
    Mirror Off/ Horizontal Mirror/Vertical Mirror/180 degree flip
    Image Setting Brightness, Contrast,Sharpness,Saturation, Chroma

    Humanoid Detection
    Detection Quantity ≤5 people humanoid
    Humanoid Size Humanoid Pixel≥40X40
    Detection Ratio ≥99%(meet above requirement)
    Capture Speed ≤1s
    Max Detection Frame 5fps/s
    Fault Detection Ratio ≤2%
    Detection Part People with any posture including half body, head, hand, shoulder
    Track People Support
    Detection Mode Support static and dynamic humanoid detection
    Detection method Support visible light image detection, and near infrared image detection
    Detection Area Appointed area, default full-screen
    Upload Method Upload it under private protocol
    Trigger Method Video trigger

    Audio & Video Encoding
    Video Encode Standard H.265/H.264
    Encoding Feature Main code stream: 5MP 2560x1920@20fps, 4MP 2560x1440@25fps, 3MP 2304x1296@25fps,
    Sub-code stream:D1(720*576),VGA(640*360)
    Video Code Rate Fixed code rate,variable code rate (Main stream code:160Kbps-4000kbps)
    Video Type Composited stream/video stream

    Network Function
    Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP
    Connection Protocol ONVIF, SLINK, HIK
    Preview Video Quantity Up to 5 users web login
    Security Mode Authorized user name and password, HTTPS with password, AES connecting
    with password, RTSP verification
    Motion Detection Set detection area, can set multi-level sensitivity
    Privacy Mask Alarm
    		Support 1 area setting
    Privacy Mask Support 4 area privacy mask
    Schedule Linkage Capture, email
    Equipment Anomaly
    Inspection    		 Support network broken alarm, IP conflict alarm, illegal visiting alarm
    Character Overlay(OSD) Title,time and date overlay, multi-line OSD, OSD color is optional

    Port
    Network Port RJ45 10M/100M network self-adjustable

    General
    Power Supply DC12V /POE Option
    Protection IP66

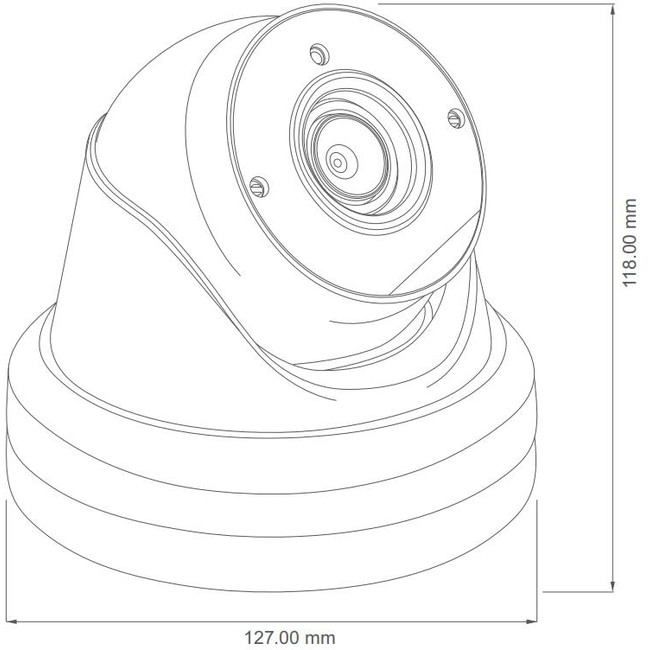

    Size 127.00(W)*118.00(H)mm
    Working Temperature -20°C ~ 50°C
    Working Humidity 0%~90%
