CCTV, INTERCOM & ALARM, CCTV CAMERAS

8MP IR30M IP66 VANDALPROOF DOME IP CAMERA

43160907

|

DM30IPW8MV3

8MP@20fps, 5MP/4MP/3MP/2MP@25fps

1/2.8" SONY 8MP Progressive Scan CMOS 2.7-13.5mm motorized lens

Smart humanoid detection

  • H.265/H.264 and DC12V/POE power
  • ONVIF SLINK HIK Protocol
  • 32x IR LEDs up to IR 30-40M
  • IP66 and Vandalproof
    8MP IR30M IP66 VANDALPROOF DOME IP CAMERA
  • Description
  • RESOURCES

    • Description

    View Similar

    product1
    COAXIAL VIDEO SURGE PROTECTOR
    product1
    2MP 4″ DOME IP PTZ CAMERA

    DESCRIPTION

    Features

    • 8MP 3840*2160@ 20fps, 5MP(2592*1904@25fps)
    • HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
    • Hikvision private protocol supported, plug and play with popular Hikvision NVRs
    • The 2.7-13.5mm motorized lens makes easy to adjust the focal length and zoom level
    • H.265/H.264 supported, saves bandwidth and storage space
    • 1/2.8" SONY Progressive Scan CMOS sensor
    • Humanoid detection
    • Support human alert voice broadcast
    • IR-Cut (Infrared-cut) filters for producing accurate color images
    • IP66 rating
    • 32x IR Leds, IR distance up to 30-40m
    • DC12V or POE power options
    • Detection frame 5fps, detect up to 5-10 people at the same time
    • Support low bit rate and low latency
    • Support Smart IR to avoid Infrared over-exposure at night
    • Support ICR auto switch, realize D&N surveillance
    • Support 3D DNR and digital WDR
    • Support auto-electronic shutter to suit different surveillance environments
    • Support HTTPS transmission with the password, default password 123456

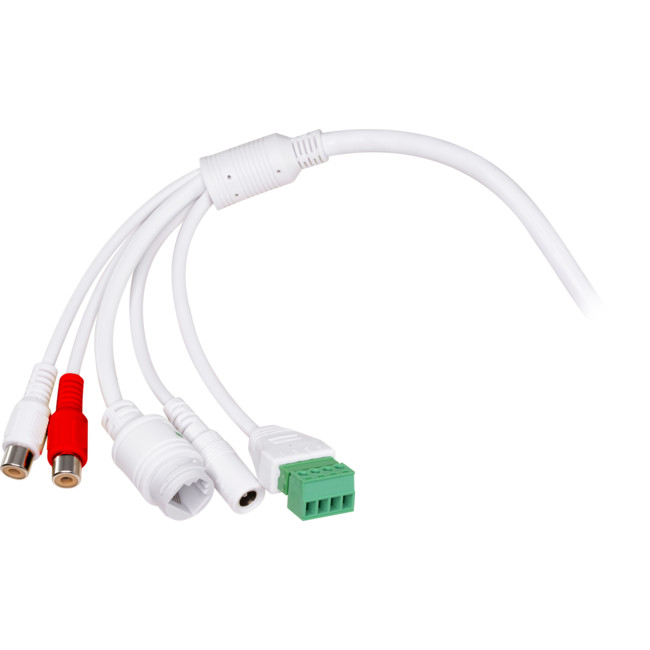

    CONNECTIONS

    • [DC] 12V DC power input
    • [RJ45] Ethernet port
    • Alarm input/output
    • Audio output
    • Audio input

    Specifications

    CAMERA
    Image sensor 1/2.8" SONY 8MP Progressive Scan CMOS
    Min.illumination 0 Lux/F1.4 (IR ON) Color: 0.1Lux/F1.4, B/W: 0.05Lux/F1.4
    IR distance 30-40m (32x IR leds)
    Electronic shutter Auto/ Manual (1/25~1/10000),FLK
    Day/ Night ICR switch, auto, color, B/W, ext
    Lens 2.7-13.5mm Motorized lens
    Lens interface Φ14
    Output PAL/ NTSC adjustable
    WDR WDR (Off/ Low/ Middle/ High)
    Light board control Auto/ Manual/ Off / Support 0-100 brightness adjust
    3D N/R Off/ Low/ Middle/ High/ Higher
    Defog Off/ Low/ Middle/ High
    Mirror Off/ Horizontal/ Vertical/ 180° rotation/ Corridor mode (90° rotation, 270° rotation)
    Slow Shutter Off/On
    Exposure control Auto/ Manual
    Image setting Brightness, Contrast, Saturation, Sharpness, Hue

    Humanoid Detection
    Detection Quantity ≤10 person
    Humanoid Size Humanoid pixel≥40X40
    Detection Ratio ≥99% (meet above requirement)
    Capture Corresponding speed ≤1s
    Max Detection Frame 5fps/s
    Fault Detection Ratio ≤2%
    Detect Part People with any posture including half body,head,hand shoulder
    Track People Support
    Detection Mode Support static and dynamic humanoid detection
    Detection Method Image detection during day or night time with lights or IR Leds
    Detection Area Appointed area, default full-screen
    Upload Method Upload it under private protocol
    Trigger Method Video trigger

    AUDIO/VIDEO ENCODING
    Video compression H.265/H.264
    H.265 Encoding Main Profile
    H.264 Encoding BaseLine / Main Profile / High Profile
    Encoding features Main stream:8MP(3840*2160)20fps,5MP(2592*1904), 4MP(2560*1440)3MP(2304*1296)2MP(1920*1080) 25fps
    Sub-stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240)
    Max. Resolution 3840*2160
    Video bit rate Constant bit rate, variable bit rate (32Kbps~16Mbps)
    Video type Complex stream/ Video stream
    Audio compression G.711u
    Audio bit rate 64Kbps

    NETWORK
    Network protocol TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP
    Access protocol ONVIF, SLINK, HIK
    Browser Support IE, Chrome, Firefox, Safari
    Video web preview 4 users max on web login
    User permission User add/modify/delete, permission management
    Safe mode Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
    Motion detection Set detection zone, multi-level sensitivity can be set
    Tampering alarm 1 zone
    Privacy Mask 4 zones
    Event linkage Snapshot, FTP upload or email sending, alarm output linkage, preset linkage
    ANR Support,match with NVR
    Device exception Support network disconnected, IP conflict, illegal access alarm
    OSD Title, time and date overlay, multi-line OSD, OSD color optional
    DST Support
    Snapshot Support snapshot, snapshot resolution is encoding resolution
    System Upgrade Support remote upgrade

    INTERFACE
    Network Interface RJ45 10M/100M network adaptive
    Power 12V DC power input
    Audio 1ch input/1ch output
    Alarm input 1ch
    Alarm output 1ch

    GENERAL
    Operating temperature -20°C ~ 55°C
    Operating humidity 0%-90%
    Protection grade IP66/IK10 and Vandalproof
    Power supply DC12V /PoE
    Power consumption (max) <9W

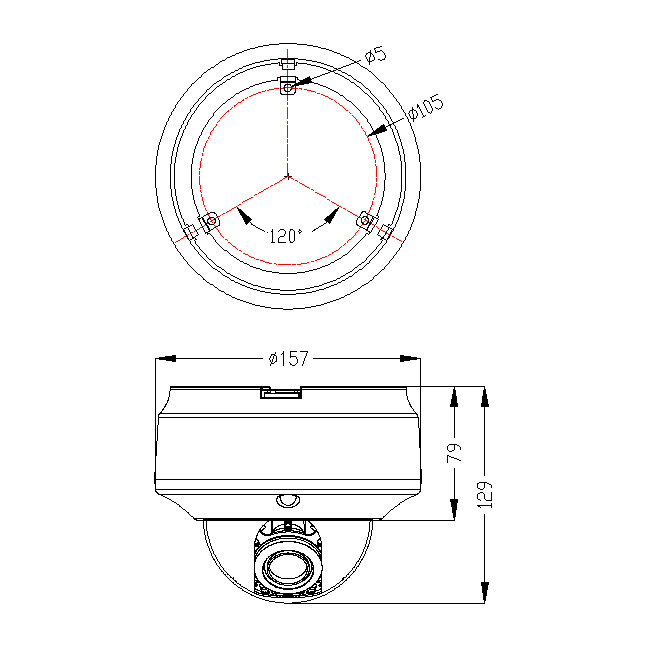

    Dimensions(mm) 157mm(w)×129mm(H)
