• 8 CH hybrid HD 5 in 1 DVR, 2HDD position 1U case
• Embedded Linux operation system, H.264 dual-stream decoding
• 8CH Coaxial HD+8CH IP Camera sync access
• Auto recognition HDCVI/HDTV/AHD/CVBS five mixed signalaccess
• Support max 1/4/8CH sync playback and sync run backward
• Support main stream and sub stream sync video
• Support synchronic video, playback, remote monitoring,backup
• VGA/HDMI sync output, support 1080P HD preview
• Support DDNS, EMAIL, UPNP, NTP, P2P
• Support WEB, mobile viewer, Client, CMS

Specifications

Specifications

Model	8CH HYBRID 5 IN 1 NETWORK DVR
VIDEO
Video Input	8CH*3MP(BNC)@1main Play 4CH*4MP(BNC1,3,5,7)@1main Play 8CH*3MP(BNC)+8CH*3MP(IPC)@8Sub-Play/1main Play 4CH*4MP(BNC1,3,5,7)+4CH*4MP(IPC)@4Sub-Play/1main Play
Video compression	H.264
Video Output Resolution	4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ DCIF/ 2CIF/ CIF/ QCIF
Video Output	VGA/ HDMI sync output:1920x1080P@60Hz,1440x900P@60Hz, 1366x768P@60Hz,1280x1024P@60Hz,1024x768P@60Hz,800x600P@60Hz
Bit Rate	16 - 4000Kbps
Image Display	1/4/6/8/9/16
Snapshoot	Support (JPEG)
Motion Detection	396 (22*18) surveyed area can be set in every screen and multi sensitivity adjustable
AUDIO
Audio Encoding	G.711A
Audio Input	4CH RCA
Audio Output	1 CH RCA
Talkback	--
VIDEO RECORDING AND PLAYBACK
Video Frame Rate	8CH mode:3MP@6fps, 1080P@10fps,Analog/IPC@25fps(PAL)/30fps(NTSC)REAL TIME. 4CH mode :4MP@10fps,3MP@12fps,1080P@20fps(PAL)/30fps(NTSC)REAL TIME,Analog/IPC@25fps(PAL)/30fps(NTSC)REAL TIME.
Record Mode	Manual/ Timing MD/ Regular/Alarm exception/MD oralarm/MD and alarm
Playback Synchronic	Analog 4CH/Mixed 1CH main stream sync playback 4CH/8CH sub stream sync playback
Search Method	Time, Calendar, Event, Channel
Video Playback	Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen, Roller amplification time ball precise playback
VIDEO BACKUP
Interface	2 SATA
HDD Capacity	Single largest 6T
Backup location	Local HDD, Network
Backup Method	Network, USB storage device, USB recorder
Network Protocol	TCP/IP, HTTP, DDNS, SMTP, DHCP, PPPOE, UPNP, NTP, P2P,ONVIF
EXT INTERFACE
Network Interface	RJ45 10M/ 100M/ 1000M adaptive Ethernet port
Alarm Input	8 CH
Alarm Output	3 CH
RS-485	1 RS485
USB Port	2 USB2.0
GENERAL
Operation Temp And Humidity	-10°C ~ 55°C/10?-90?
Power supply	DC12V/5A with 2.5mm DC plug
Power Consumption	35W(Without HDD)
Unit Dimension(mm)	L 360*W 242*H 48
Weight	1.5 Kg

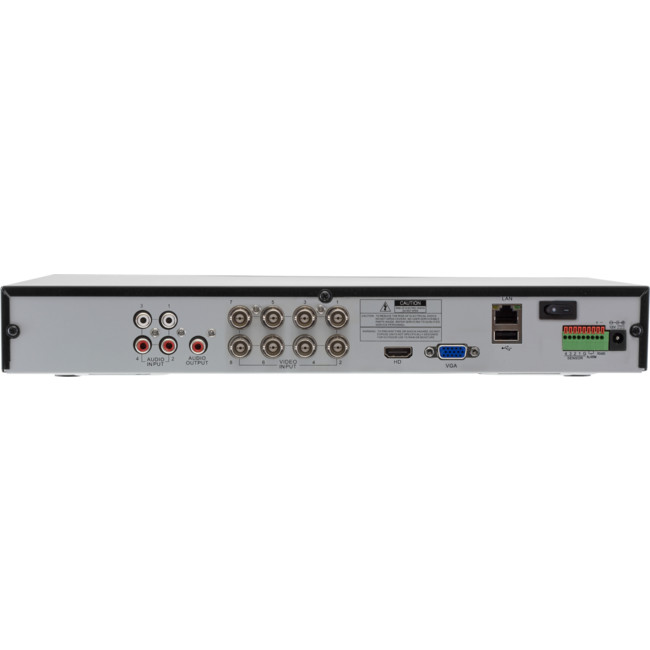

Interface

1. BNC Video Output
2. Audio Input
3. Audio Output
4. HDMI Video output
5. VGA Video output
6. RJ45 port
7. USB 2.0
8. DC12V Power Supply
9. Alarm Input
10. Alarm Output
11. RS485
12. Power Switch

FAQ

How much storage do I need?

CCTV Calculator Calculate everything!

In the box

• DVR
• 48V 3A DC Power supply with detachable IEC lead
• USB Mouse
• HDD Connection Kit
  • 2x SATA cable
  • Molex power cable
  • 8 screws
