CCTV, INTERCOM & ALARM, CCTV CAMERAS

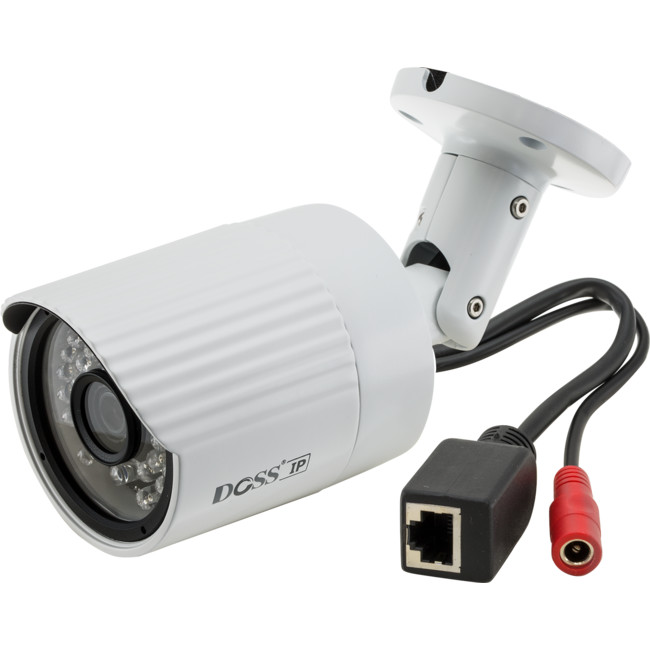

IP8INK SPARE IP CAMERA 12V POE

43171203

|

IP8INKSC

1/2.8" SONY 2.43 MP progressive scan CMOS sensor

3.6mm M12 lens

20-30M IR range

  • POE only from IP8INK NVR
Discontinued
    IP8INK SPARE IP CAMERA 12V POE
  • Description
  • RESOURCES

    • Description

    View Similar

    product1
    5MP IR 40M IP66 BULLET IP CAMERA
    product1
    ALUMINIUM CAMERA BRACKET

    DESCRIPTION

    Please note: The IP8INKSC is primarily designed to work with the IP8INK CCTV kit. It will not accept POE (Power over Ethernet) from traditional 48V POE sources. You may still use this camera with a third party NVR as long as power is supplied separately.



    CAMERA
    Image sensor 1/2.9" SONY 2.07 MP Progressive scan CMOS
    Min.illumination 0 Lux/F1.4 (IR ON)
    IR distance 15-20M (30xΦ5 IR leds)
    Electronic shutter Auto/ Manual(1/25~1/10000), FLK
    Day/ Night ICR switch, Auto, clor, B/W, EXT
    Scan system Progressive scan
    Lens 3.6mm M12 lens
    Lens interface M12
    R/N ratio ≥50db (AGC OFF)
    Output PAL/NTSC adjustable
    WDR DWDR
    Video Parameter Mirror, 3D noise reduction, sharpness/ Brightness adjustable

    AUDIO/VIDEO COMPRESSION


    Video compression H.264/MJPEG
    Encoding features Dual-stream, NTSC main stream: 1080P@30fps, sub-stream: D1@30fps
    PAL main stream: 1080P@25fps, sub-stream: D1@25fps
    Max. image resolution 1920X1080
    Video bit rate Constant bit rate, variable bit rate (16kbps~8000kbps)
    Stream type Complex stream/ video stream

    NETWORK


    Motion detection Can be set to a single detection zone, Multi-level sensitivity can be set
    Privacy zones 4 zones
    Snapshot Support JPEG capture, snapshot resolution based on encoding resolution
    Password protection Support
    Character display Support (Channel, Date)
    Alarm function Network anomaly, mask alarm, motion detection etcintelligent alarm
    Mobile surveillance Apple, android
    Protocol TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP,ONVIF
    Port protocol ONVIF, GB28181(optional)

    INTERFACE


    Network Interface RJ45 10M/100M network adaptive
    Analog video output 1CH 1.0Vp-p complex video output

    GENERAL


    Operating temperature /humidity -20°C ~ 55°C/0%-90%
    Protection grade IP66
    Power supply DC12V/ POE (DC12V) optional
    Power consumption (max) <6W
    Dimensions(mm) 66(W)*66(H)*166.7(L)mm
    Weight/PCS(g) 366g
