DISPLAY PORT CABLE TESTER

44365122

|

NF633

Tests both display port and mini display port cables

LED displaying wire condition individually

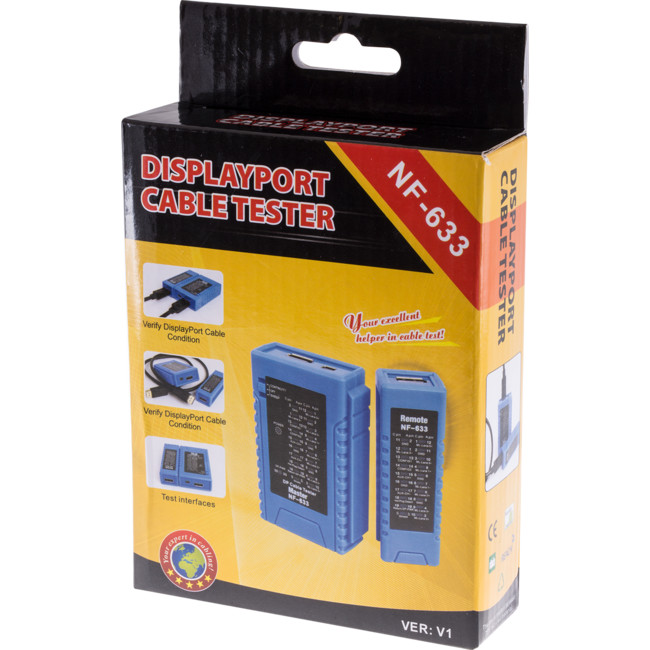

    DISPLAY PORT CABLE TESTER
  • Description
  • RESOURCES

    • Description

    View Similar

    product1
    CABLE TESTER TRACKER
    product1
    ESD SOLDERING STATION WITH LCD

    DESCRIPTION

    Features

    The Doss NF-633 display port cable tester tests 20 internal wires individually and gives a clear reading of display port cable condition.

    • Supports display port and mini display port cables
    • Max testing distance: 15m
    • Requires 9V battery

    Specifications

    cables versions support

    1) Display Port Cable
    2) Mini Display Port Cable
    3) Display Port to Mini Display Port Cable
    support test 1th ~19th pin to pin wire map and shield detection, and 20th detection.

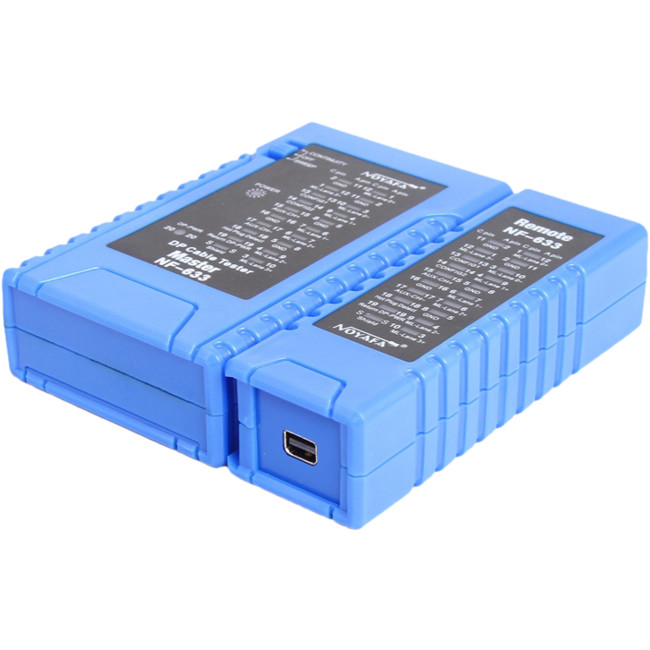

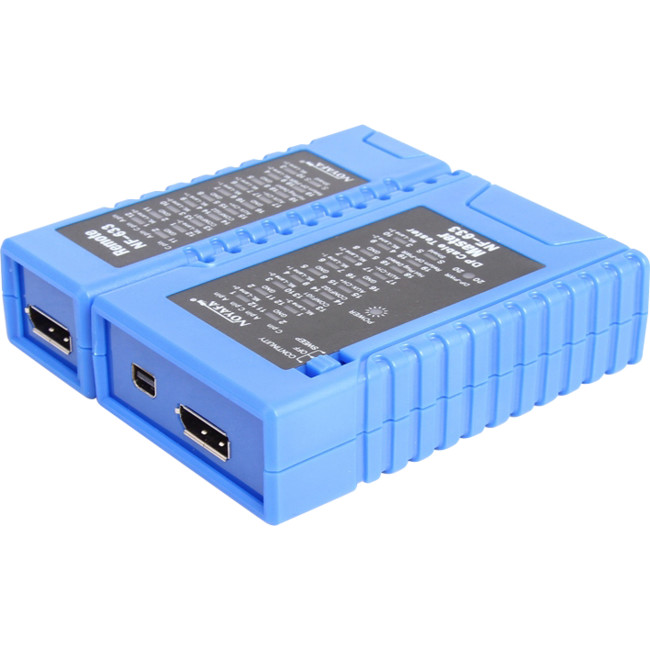

    Test interface of master unit Display Port *1
    Mini Display Port *1
    Test interface of remote unit Display Port *1
    Mini Display Port *1
    Test mode Sweep and Continuity
    Max test distance 15 metres
    Status Display 19 LEDs and Shield Led on both Master and Remote Unit
    20th LED only on Mater Unit
    Beeper indication Yes
    Low battery indication 6.0V
    Power source DC 9V (NEAD 1604/ 6F22) x1 (not included)
    Environment Operating: 0° to 40° < 80% RH
    Storage: -10° to 50° < 70% RH

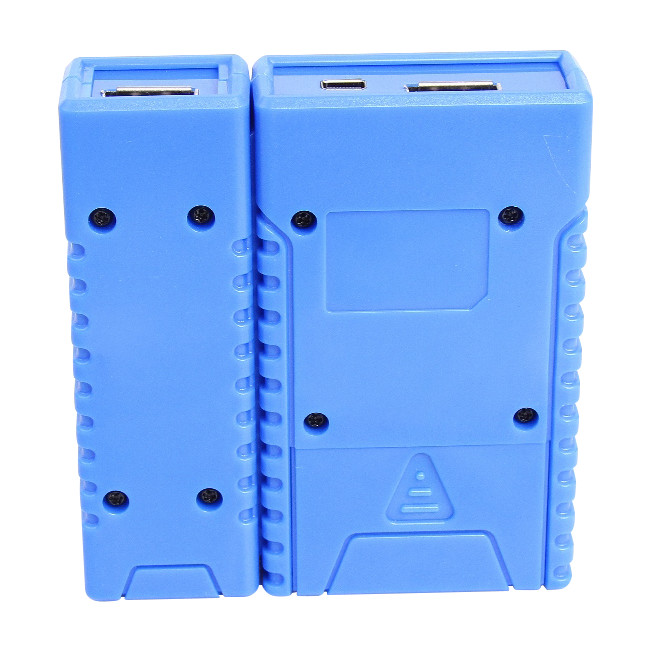

    Dimensions Master unit: 103x66x27mm
    Remote unit: 103x35x27mm
