NETWORK COAX CABLE TESTER

TOOLS & TESTERS, TEST EQUIPMENT

47650012

NF300

RJ45, RJ11, USB and BNC testing

Cable length testing

Port flashing function

NETWORK COAX CABLE TESTER

Description

RESOURCES

Description

DESCRIPTION

Doss NF-300 is a multifunction network coax cable tester. Itincludes remote wire map and tone tracer. It also features aporting flashing function for cable identifying on switch.

Features

Enables cables to be located even when totally concealed
Memory and storage function
LCD Screen shows test result clearly
RJ45, RJ11, USB and BNC cable testing
Port flashing function
Cable length testing
Cable fault testing
Headphone jack on tone tracer
LCD screen
Voltage protection

Specifications

NF-300 Transmitter specifications
LCD screen	53x25mm
Tone frequency	225kHz
Trace cable coonected to switch	Anti-jamming
Tone mode	2 Tones, adjustable

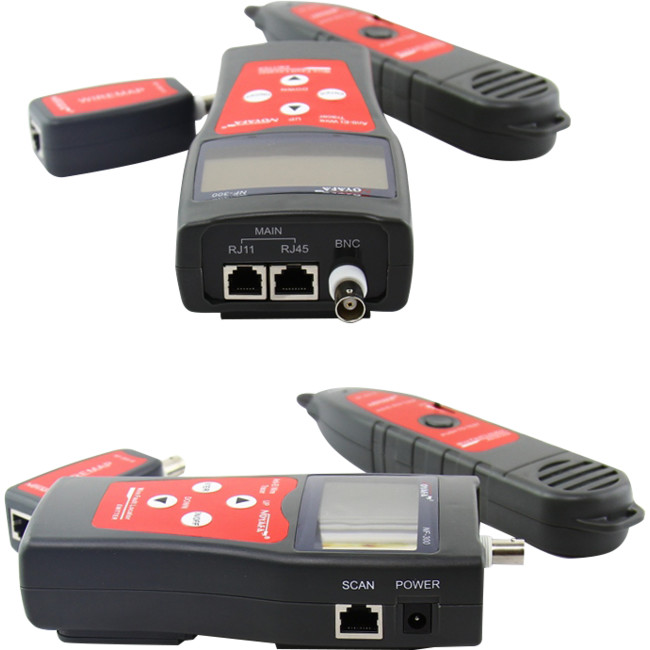

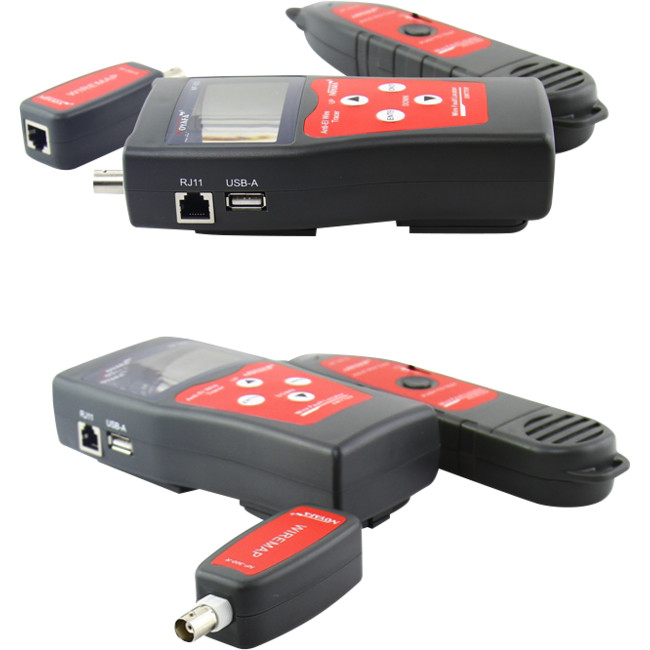

Compatible with connectors	RJ11,RJ45,BNC,USB
Cable map indication	Pin #1- #8
Shielded indication	# G
Voltage protection	AC 60V/DC 42V
Low battery display	LCD (6.5V)
Battery type	DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)	185x80x32mm
NF-300 Receiver specifications
Frequency	225kHz
The Max. working current	Less than 70mA
Battery type	DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)	218x46x29mm
NF-300 Remote unit specifications
Compatible with connectors	RJ45,BNC
Dimensions (LxWxD)	107x30x24mm

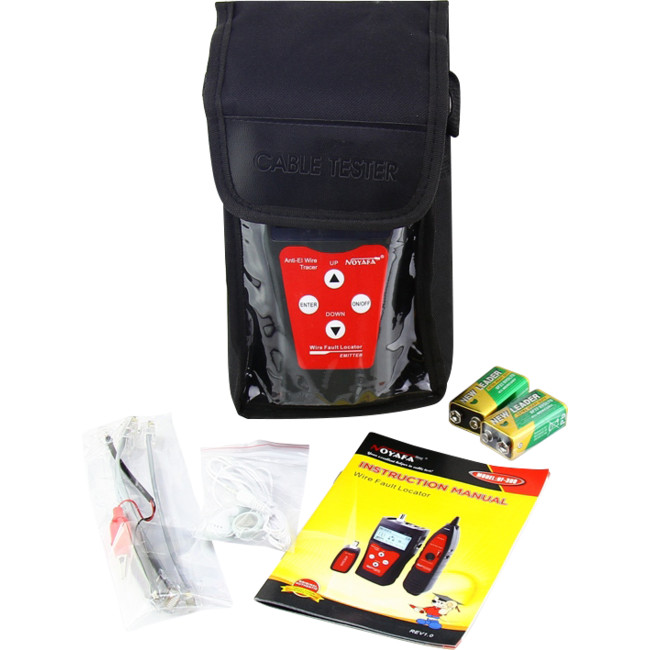

Accessories Included:

earphone x 1 set

telephone line adapter x 1 set

network cable adapter x 1 set

Cable clips x 1 set
