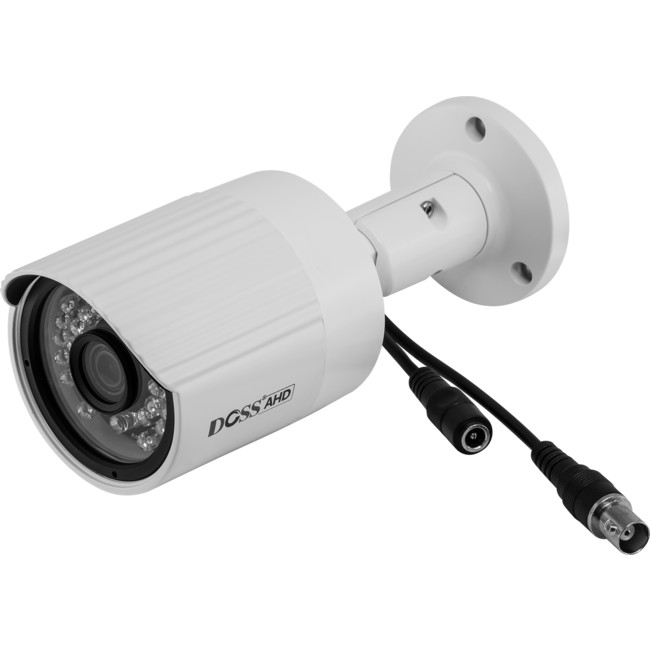

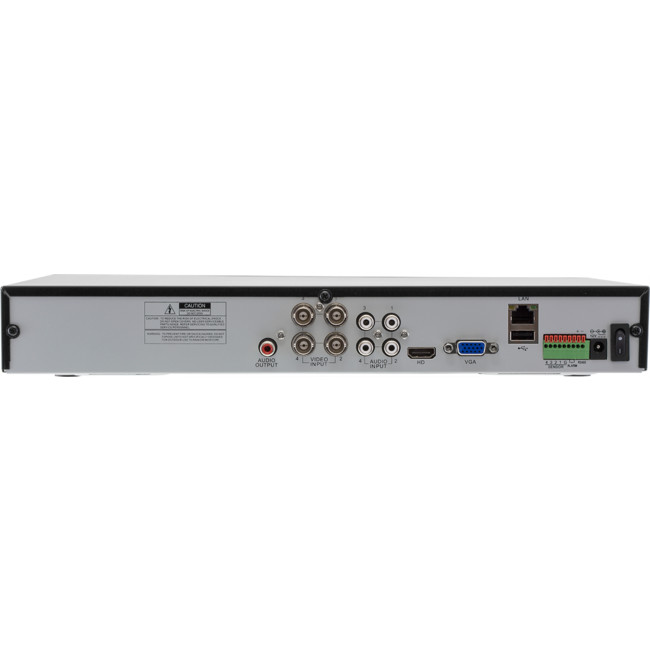

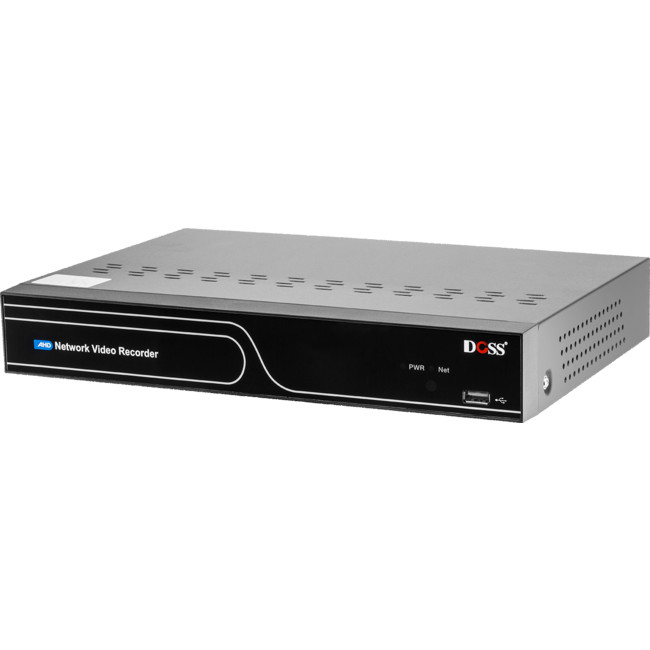

AHD4INK WHITE BULLET 1080P AHD CAMERA WITH 1TB HDD 4CH DVR KIT

AHD4INK WHITE BULLET 1080P AHD CAMERA WITH 1TB HDD 4CH DVR KIT

Additional Images

43171204431712044317120443171204

Discontinued

Features

  • Supports up to 4K camera resolution
  • 8CH full real-time network video access, 1U NVR case
  • H.265/H.264 dual-stream decoding, embedded linux operation system
  • Support sync video recording, remote monitoring, backup
  • HDMI output, support 2160P HD preview
  • Support 12 times amplification preview and playback video, 8CH standard PoE
  • Standard ONVIF, RTSP, GB28181 protocol
  • Support DDNS, EMAIL, UPnP, NTP, P2P,etc
  • Support FSAN SMART IPC (Target counting, object left/lost, area detection, line crossing detection)
  • Support grouping disk quota, and disk inventory two storage pattern, distribute different video storage capacity or cycle according to different channels
  • Support IPC centralized management, including IPC parameters configuration, import and export information, information real time acquisition and upgrade, etc
  • Support channel grouping, preview round touring
  • Network detection(network flow monitoring, network wireshark, network clear)
  • Max 8CH sub-stream record sync playback and multi-channel sync play backward
  • The new UI interface, support a key to open the video recording , Instant playback
  • Dual password authentication and zero channel function



Specification

VIDEO

Network video input

8CH

Network access bandwidth

80Mbps

Video compression

H.265 /H.264 /MJPEG

Video output

HDMI output

3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ

Video preview mode

16ch  preview (Without local intelligence analysis )

Video bit rate

16-16000Kbps

Video resolution

4K/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Image display

1/4/6/8/9/16 image display

Snapshot mode

Support timing snapshot, manual snapshot, JPEG format

Motion detection

Support 396(22*18) surveyed area can be set in every screen and multi-level sensitivity adjustable

Privacy mask

Support 4 zones

Intelligent detection

Motion detection, video loss, video tampering, support FSAN SMART IPC intelligent function

AUDIO

Audio  compression

G.711u

Audio input

IPC complex audio input

Audio output

1CH, RCA interface

Bidirectional talk input

/

VIDEO RECORDING AND PLAYBACK

Video frame rate

1-30fps

Record mode

Manual/external alarm/MD/timing/intelligent analysis alarm

Playback ability

Support 1CH 4K/5MP/3MP; 4CH1080P 8CH sub-stream record sync playback

Playback mode

Instant playback, Local video, local image, External file playback

Record search

Time, calendar, event search, channel search(ANR, regular video, motion detection video, alarm video, intelligent detection video)

Video playback

Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast play(1-256X), slow play(1-1/32X), frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time bar precise playback

STORAGE AND BACKUP

Storage interface

2 SATA

HDD capacity

Single max.6T

Disk grouping

According to video channels to set HDD quantity

Disk quota

According  to video channels to set HDD storage capacity

Backup location

Local, network

Array type

/

Backup method

USB mobile hard disk, U disk, network backup

ANR

Support FSAN IPC(with TF card)ANR

FUNCTION

Network protocol

TCP/IP, HTTP, HTTPS, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P

Interface protocol

ONVIF, RTSP, GB28181

Protocol port

ONVIF/ RTSP/ HTTP/ HTTPS/ RTMP port customized

Mobile surveillance

Support Apple, Android

Web browser

Support IE, Chrome, Firefox, Safari

Display function

Channel shortcuts: Instant playback,3D positioning, show smart detection,show face detection,voice intercom,channel audio

DTPR: HDD Info, alarm info(arming/disarming), device list(display whether IPC online, record type, structure (customized channel classification, facilitate quick preview), group round touring, desktop menu can be hidden

IPC timing

Manual/ auto/ timing /reconnect timing IPC timing

Alarm linkage

Send email, audible warning(buzzer), alarm on monitor, upload to center, record, snapshot, preview, PTZ  linkage

Network detection

Flow monitoring, network wireshark, network test

User management

User add, delete, modify, permission management

Auxiliary users(secondary password protection)

Manage IPC

Modify IPC parameters, IPC upgrade

Other

/

EXT INTERFACE

Network interface

1 RJ45 100M Ethernet port

PoE interface

8CH(IEEE 802.3af)

Alarm input

4CH

Alarm output

1CH

RS-485

Support

USB interface

Rear panel: 2 USB2.0

GENERAL

Power supply

DC48V/3A(power plug specification optional)

Power consumption

<10W(Without HDD)

Operation temperature/ humidity

-10°C ~ 55°C/10?-90?

Dimension(mm)

360(L)x242.4(W)x48(H)mm

Weight/PCS(g) (without HDD)

2Kg





FAQ


CCTV Calculator Calculate everything!

Visit our NVR IQ Range knowledge base for tips, tricks, how-tos and videos!

Q: I have already installed the plugin on my computer, so why does it still say the IE ActiveX is not registered when I try to access the NVR/IPC via Internet Explorer?
A: You may have to check your security setting on your Internet Explorer, refer to the images attached.

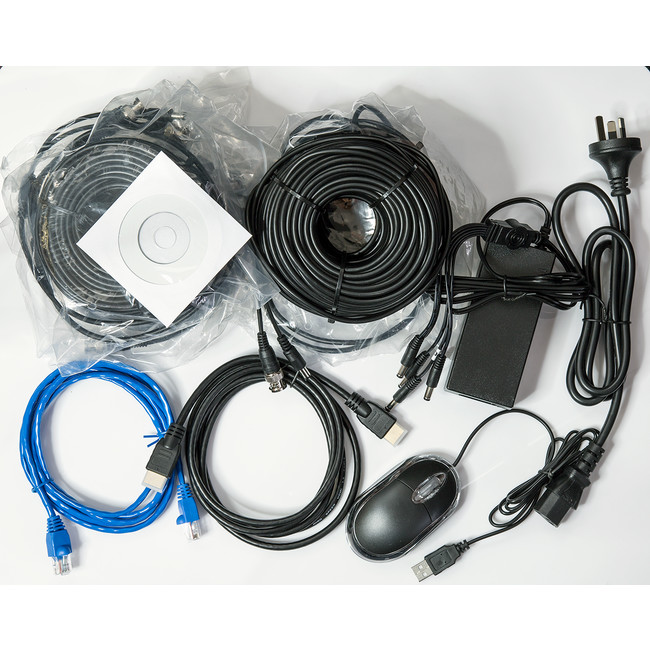

In the box?

  • NVR
  • 48V 3A DC Power supply with detachable IEC lead
  • USB Mouse
  • HDD Connection Kit
    • 2x SATA cable
    • Molex power cable
    • 8 screws
  • Software CD
