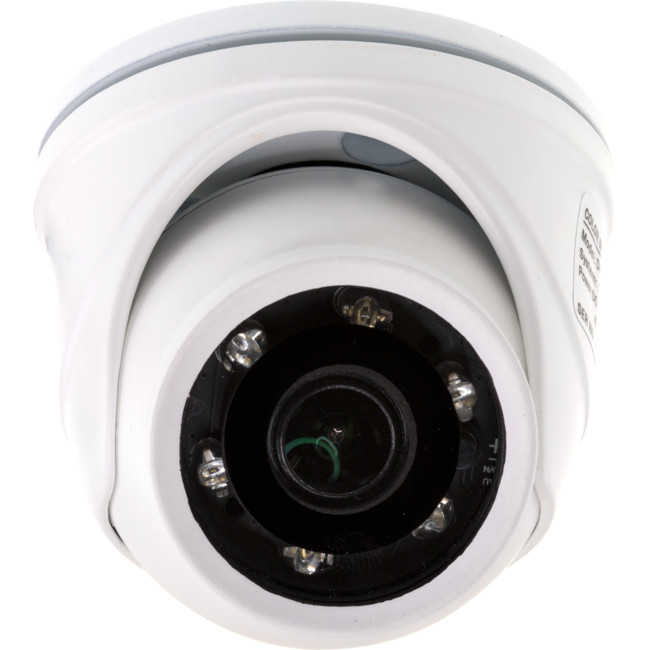

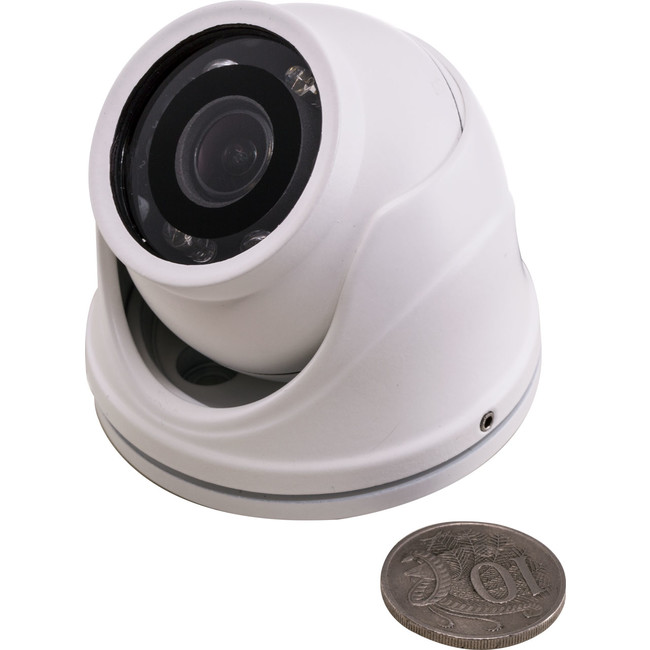

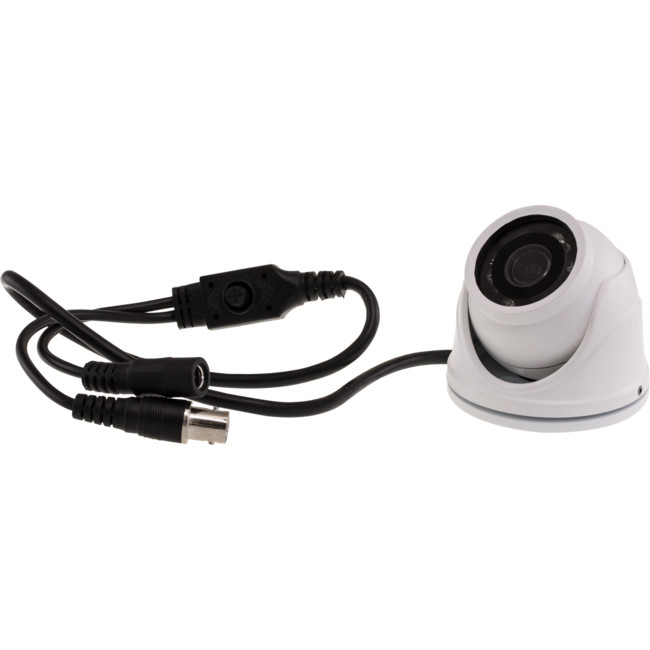

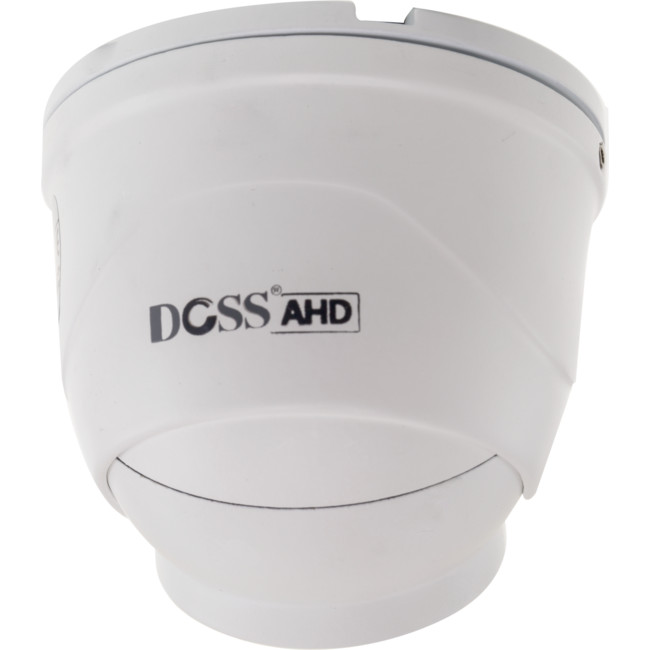

DMW15AHDW2 MINI DOME WIDE 15M AHD ANALOG HD CAMERA 2.8MM 1080P – WHITE
Discontinued
Features
- AHD high definition camera at 1080P resolution
- Low illumination 1/2.9″ SONY 2.43M CMOS sensor
- 2.8mm lens
- 10-15m IR distance
- HD AHD 1080P, 800TVL analog dual-output
- AHD coaxial transmission distance up to 500m
- AHD/Analog signal
- D-WDR, 2D/3D NR, defog, CRR
- Motion detecton, Privacy zones, BLC and HLC
Specifications
|
CAMERA |
||
|
Sensor |
1/2.9″ SONY 2.43M pixels CMOS |
|
|
Effective pixels |
1920*1080 |
|
|
HD AHD output |
1080P |
|
|
Resolution |
800TVL (CVBS input) |
|
|
Min. Illumination |
0 Lux (IR ON) colour: 0.1Lux/F1.2; B/W: 0.01Lux /F1.2 |
|
|
Sync System |
Internal |
|
|
Scan System |
Progressive scan |
|
|
Lens |
2.8mm M12 lens |
|
|
Electronic Shutter |
Auto/Manual (X30~1/50000) / FLK |
|
|
S/N Rate |
≥50db(AGC OFF) |
|
|
Video output |
1.0Vp-p composite video output, 75O |
|
|
output model |
PAL/ NTSC adjustable |
|
|
General |
||
|
Transmission distance |
75-3/ 300m, 75-5/ 500m |
|
|
IR distance |
10-15m (12 x Ø5IR led) | |
|
power supply |
DC12V ± 10% |
|
|
Power(max) |
280mA ± 10mA (IR ON) |
|
|
Operating Temperature |
−20°C ~ 55°C/ 0%-90% |
|
|
Dimensions (HxD) |
70x70mm |
|
|
Weight/PC(g) |
280g |
|
Short URL: https://bit.ly/3ij47Dx
AHD Troubleshooting
Follow the steps below, if you are having issues connecting your Doss AHD cameras to our Hybrid DVRs
- Is the power on and are the cameras connected into the DVR correctly?
- Make sure the power supply to the cameras is working too.
- Are the cameras in AHD mode or CVBS (576L) mode?
- Doss AHD cameras come out of the box configured to output CVBS by default (for maximum compatibility with various test monitors used during installation). Easily switch to AHD output by holding the OSD key to the right on the camera for about 3-4 seconds to switch. Please note: Some cameras will have an inline controller, some will have buttons on the back. See the camera description page for more info.
- Some Hybrid DVRs do NOT accept 720p or lower resolutions from analogue cameras. Make sure your DVR is able to do this.
- Are you wiring directly with RG59 + power cabling, or using CAT5/6 baluns?
- If the latter, make sure you are using a HD capable balun such as the VPB45HD.
- Does your TV/Monitor have the required inputs?
- The new range of Doss Hybrid DVRs only come with VGA and HDMI video outputs. Make sure your TV/monitor has at least one. HDMI is the recommended connection between the DVR and TV.
What you need to know for new CCTV installations
Cameras
- What does each camera need to see? i.e. how far, how wide, how much detail?
- What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
- How will it be mounted, and are there any style considerations?
DVRs
- How many cameras does it need to monitor, allowing for any expansion?
- Do you need full D1 (576 line) recording on all channels?
- How many days of recording at what quality needs to be stored?
Cabling
- Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?
Power
- Will you supply power locally to each camera, or have one central supply?
- What size of UPS do they need?
- Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?
Networking & Remote Access
- Does your customer want to view their cameras remotely?
