FHDDOME HD-SDI FULL HD DOME CAMERA 10-15M IR
Discontinued
The HD-SDI Standard allows the transport of uncompressed High Definition Digital Video over a single RG59 cable. The FHDDOME is capable of capturing 2.1 Megapixels and viewing at 1080p real-time.
Why HD-SDI?
At about 5x the number of effective pixels as PAL/NTSC and SD-SDI, the resulting images are much more effective at capturing and identifying important features. HD-SDI does not require any new infrastructure, and operates over the same RG59 cable as your existing analogue CCTV system.
*As seen on a FHD Monitor
Features
- SDI 1080P full real time transmission
- Transmit over 300m at 1.485Gb/s
- High resolution 64X digital zoom (D-ZOOM)
- DWDR, HLC, Electronic shutter adjustable, 3DNR, anti-flicker, Defog
- OSD menu, Lightning-proof, Vandal proof, Auto ICR, IP65 rating
- DC12V Power requirement

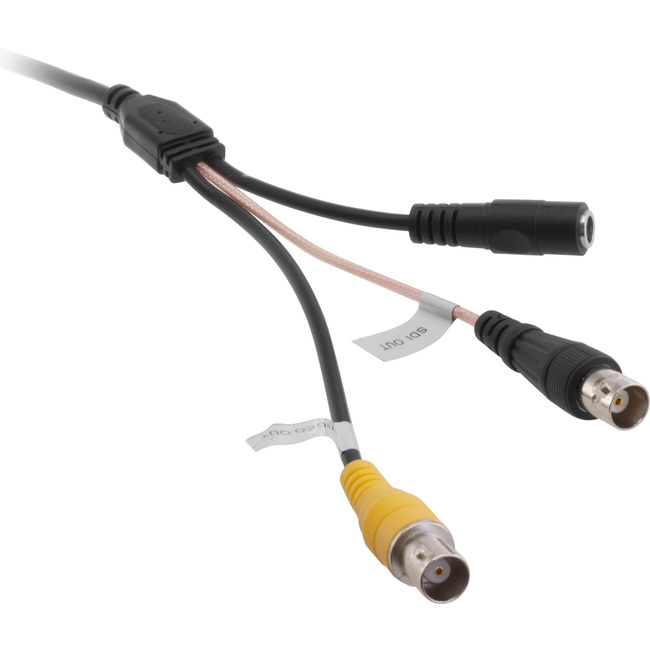

- Analogue Test Lead—lets you mount and install cabling first before adjusting view!
- Adjust the view using a portable monitor without disconnecting or unmounting camera
- Magnetic base allows more flexible mount and view options—allows non-horizontal mounting without the odd angles produced by regular pan/tilt bases
- Not only can you adjust the horizontal and vertical angles of view (such as regular pan/tilt bases), but you can also rotate the camera to correct for non-horizontal mounting surfaces
Specifications
| SYSTEM | Sensor | 1/3″ Panasonic CMOS (2.1Mega) |
|---|---|---|
| Video uncompressed format | SDI digital signal | |
| Total pixels | 2010×1108 | |
| Effective pixels | 1944×1092 | |
| Real-time resolution | 1080P (50fps) | |
| Min. illumination | 0 Lux (IR ON) | |
| IR distance | 10-15m / 18xØ5mm IR Leds | |
| Sync system | Internal / Line lock | |
| S/N ratio | 50dB (AGC OFF) | |
| Video output | 1.0Vp-p Composite Video Output, 75 Ohm | |
| LENS | Lens type | 2.8-12mm DC ICR Lens |
| FUNCTION | Electronic shutter | Manual / Auto (1/50~1/100,000) |
| White balance | ATW / Manual / Outdoor / Indoor / Auto | |
| NR (noise reduction) | 2D/3D / Intelligent Noise Reduction | |
| Digital effect | Freeze, D-Zoom, Neg. image | |
| DWDR | High / Middle / Low | |
| BLC | BLC / HLC / OFF | |
| Lens shading compensation | ON / OFF | |
| AGC | ON / OFF | |
| Day&Night | B/W / Colour / Auto / EXT | |
| Privacy zones | ON / OFF (4 areas) | |
| Motion detection | ON / OFF (8 areas) | |
| DPC | Yes | |
| Mirror function | Horizontal / Vertical / Rotate | |
| Defog function | High / Middle / Low | |
| Digital output | SDI signal | |
| Transmission rate | 1.485/1.001Gb/s, HD-SDI output | |
| SDI transmission range | 150 metres, use standard coaxial cable (RG59) with BNC interface | |
| OSD menu | English, Chinese | |
| GENERAL | Operating Environment | -30°C ~ 55°C / 0%-90% |
| Protection grade | Lightning proof, vandal proof, IP65 | |
| Power Supply | DC12V / 320mA | |
| Power consumption | 6W | |
| Dimensions (H×Dia) | 107 × 150 mm |
Short URL: https://bit.ly/3ikrOeL
What you need to know for new CCTV installations
Cameras
- What does each camera need to see? i.e. how far, how wide, how much detail?
- What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
- How will it be mounted, and are there any style considerations?
DVRs
- How many cameras does it need to monitor, allowing for any expansion?
- Do you need full D1 (576 line) recording on all channels?
- How many days of recording at what quality needs to be stored?
Cabling
- Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?
Power
- Will you supply power locally to each camera, or have one central supply?
- What size of UPS do they need?
- Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?
Networking & Remote Access
- Does your customer want to view their cameras remotely?
