SM2030 20V DC 3A POWER SUPPLY SWITCHMODE

Features:

  • Output Voltage: 20V
  • Output Current: 3A
  • Total output power: 60 Watts
  • 2.1mm DC Plug
  • 1.8m K9 IEC lead included
  • Fully Australian Approved
  • Short circuit protection: A short circuit placed on DC output cause no damage or auto-recovery to the power supply
  • Over Volatage protection: When overvoltage occurs on DC output cause no damage or auto-recovery to the power supply

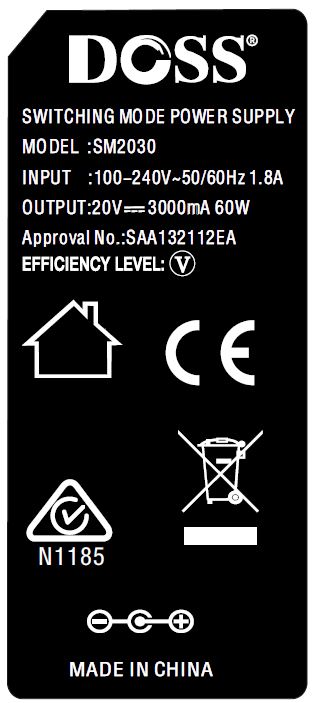

Rating Label

Specifications

    Input

  • Input voltage rating: 100-240V AC
  • Input voltage range: 90-264V AC
  • Input frequency rating: 60/50 Hz
  • Input frequency range: 63/47 Hz
  • AC input current: 1.8 A Max. @100V AC
  • AC input power saving: 0.3W Max.@230V AC at no load
  • Inrush Current:60 A Max .@100VAC (Cold start)
  • 90 A Max .@230VAC (Cold start)
  • Leakage current: 0.25mA Max
  • Operating temerature: 0°C-40°C
  • Storage temperature: -25°C – 85°C
  • Operating humidity” 8% to 90%
  • Storage humidity: 5% to 95%
  • Weight 277.8g
  • Output

  • Output voltage: 20V
  • Max. load current: 3A
  • Min. load current: 0A
  • Output noload voltage: 20V ± 5%
  • Output full load voltage: 20V ± 5%
  • Output ripple & noise: 300mV max
