SSTPCAT6BL-1MT SSTP CAT6 SOLID BLUE (305MT)

SSTPCAT6BL-1MT SSTP CAT6 SOLID BLUE (305MT)

Downloads


SSTP CAT6 Cable Test results

Sold by the metre.

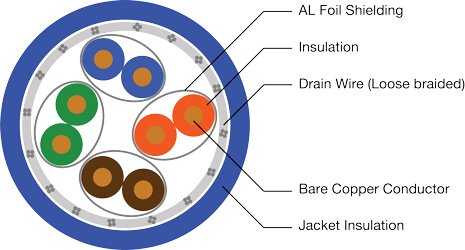

S/STP (Screened Shielded Twisted Pair) or S/FTP (Screened Foiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the cable. This type of shielding protects EMI from entering or exiting the cable and also protects neighbouring pairs from crosstalk.

Specifications

  • Conductor
    • Insulation:
      • Material: FO-PE and HD-PE
      • Diameter: 1.30 ± 0.02mm
      • Thickness: 0.37 ± 0.01mm
      • Colours (per pair):
        • Blue – Blue/White
        • Orange – Orange/White
        • Brown – Brown/White
        • Green – Green/White
    • Conductor:
      • Material: Bare Copper
      • Diameter: 1/0.571 ± 0.01mm
  • Shielding
    • Outer Braid (loose): 16×4×1/0.12mm
    • Aluminium Foil (per pair): 0.065×13mm
  • Jacket Insulation
    • Colour: Blue
    • Material: LSOH
    • Diameter: 7.6 ± 0.01mm
    • Thickness: 0.6 ± 0.02mm
    • Tensile strength (minimum): 0.917Kg/mm2
  • Electrical Characteristics:
    • Conductor Resistance (max): 9.38 Ω/100m at 20°C
    • Resistance Unbalance (max): 5%
    • Capacitance Unbalance (max): 330pF/100m
    • Mutual Capacitance (max): 560pF/100m

Images



Why Shield Twisted Pair?

Shielded twisted pair wires are less susceptible to electrical interference caused by nearby equipment or wires and, in turn, are less likely to cause interference themselves. Because the signal is electrically “cleaner,” shielded twisted pair wire can carry data at a faster speed than unshielded twisted pair wire can, allowing hardware to run at its full potential.
