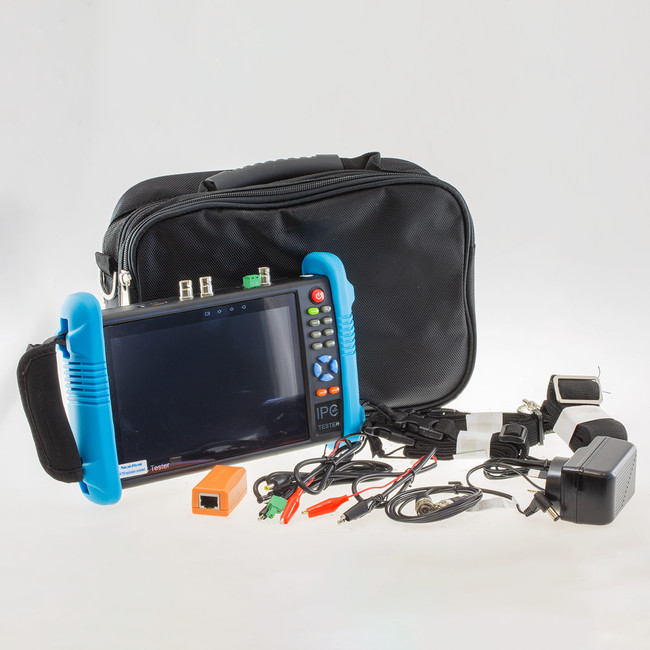

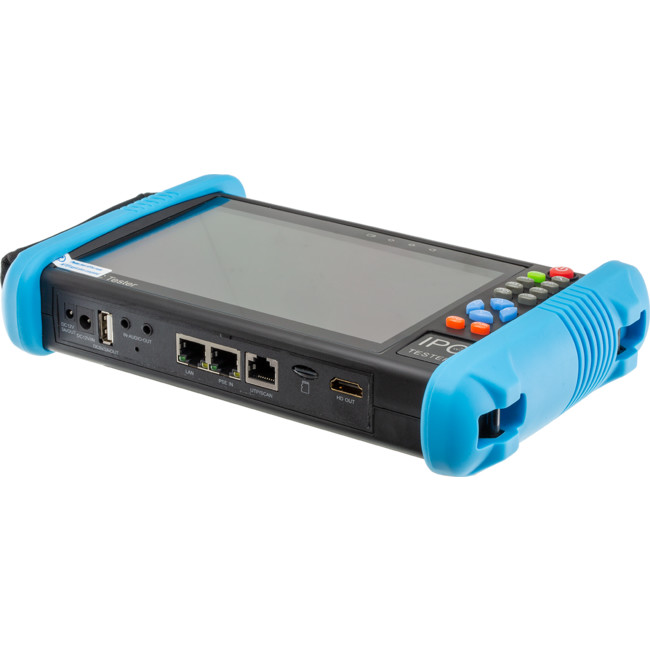

T700P4K – 7″ 4K HD CCTV CAMERA TESTER

T700P4K – 7″ 4K HD CCTV CAMERA TESTER

Additional Images

431505754315057543150575

Overview

The ultimate CCTV tester just got better. If you are in the business of installing and configuring CCTV systems, then the Doss T700P4K is the only tool you will ever need to troubleshoot, setup and perfect any security installation. Not only that, but with all the tools built-in to the unit, you can troubleshoot network issues, cabling and more.

  • The perfect tool for CCTV system installation and maintenance
  • 7" Full HD (1920×1080) IPS touchscreen interface
  • Supports more protocols than the majority of testers on the market
    • IP
    • TVI
    • CVI
    • AHD
    • SDI
    • ONVIF
  • Built-in Wi-Fi
  • Easy to use GUI
  • Removable 7.4V 5000mAh Li-ion Polymer battery
  • Support for the latest CCTV technologies including 4K cameras, H.265 compression and more
  • Video transmission channel testing
  • ONVIF PTZ and analog PTZ control
  • TDR cable testing
  • Digital multimeter
  • UTP cable test
  • Cable scan and much more!

Connections and Ports

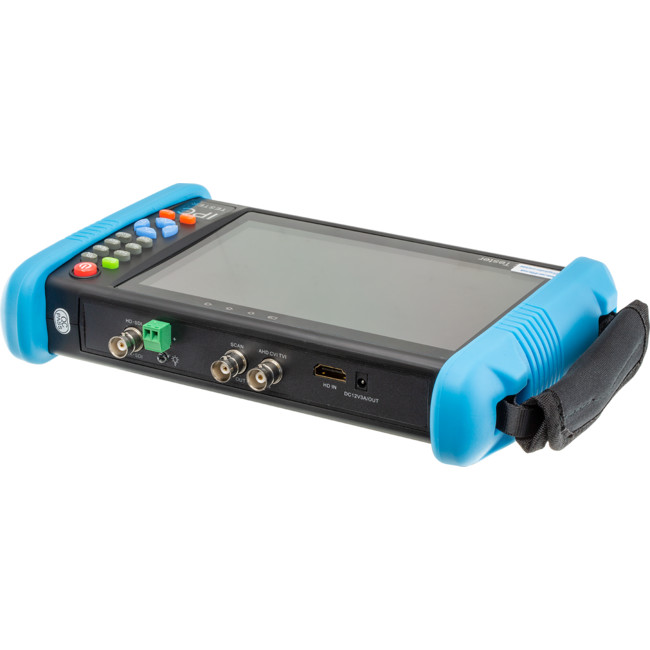

Top

  • HD-SDI, EX-SDI
  • LED Flash light
  • 2x Phoenix terminal block
  • CVBS Out/Scan
  • AHD/CVI/TVI/CVBS in
  • HDMI in
  • 12V 3A DC output



Bottom

  • 12V 3A DC output
  • 12V DC input
  • 5V 2A USB output
  • 3.5mm audio input
  • 3.5mm audio output
  • RJ45 – LAN
  • RJ45 – PSE In
  • RJ45 – UTP/SCAN
  • MicroSD card slot (8GB included)
  • HDMI output



Features

  • 7" IPS touch screen with 1920×1080 resolution
  • H.265 & H.264 IP, 4K video display via mainstream
  • 8MP TVI test, 3840x2160P 12.5/15fps, 4x zoom , video record & playback, coaxial PTZ control & call OSD menu
  • 8MP AHD test, 3840x2160P 15fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
  • 8MP CVI test, 3840x2160P 12.5/15fps, 4x zoom, video record & playback, coaxial PTZ & call OSD menu
  • 8MP EX-SDI test, 3840x2160P 20/30fps, 4x zoom, video record & playback, coaxial PTZ & call OSD menu
  • HD-SDI test, 1920x1080P 25/30/50/60fps, 4x zoom, video record & playback, coaxial PTZ & call OSD menu
  • 3G-SDI test, 1920x1080P 50/60fps, 4x zoom, video record & playback, coaxial PTZ & call OSD menu

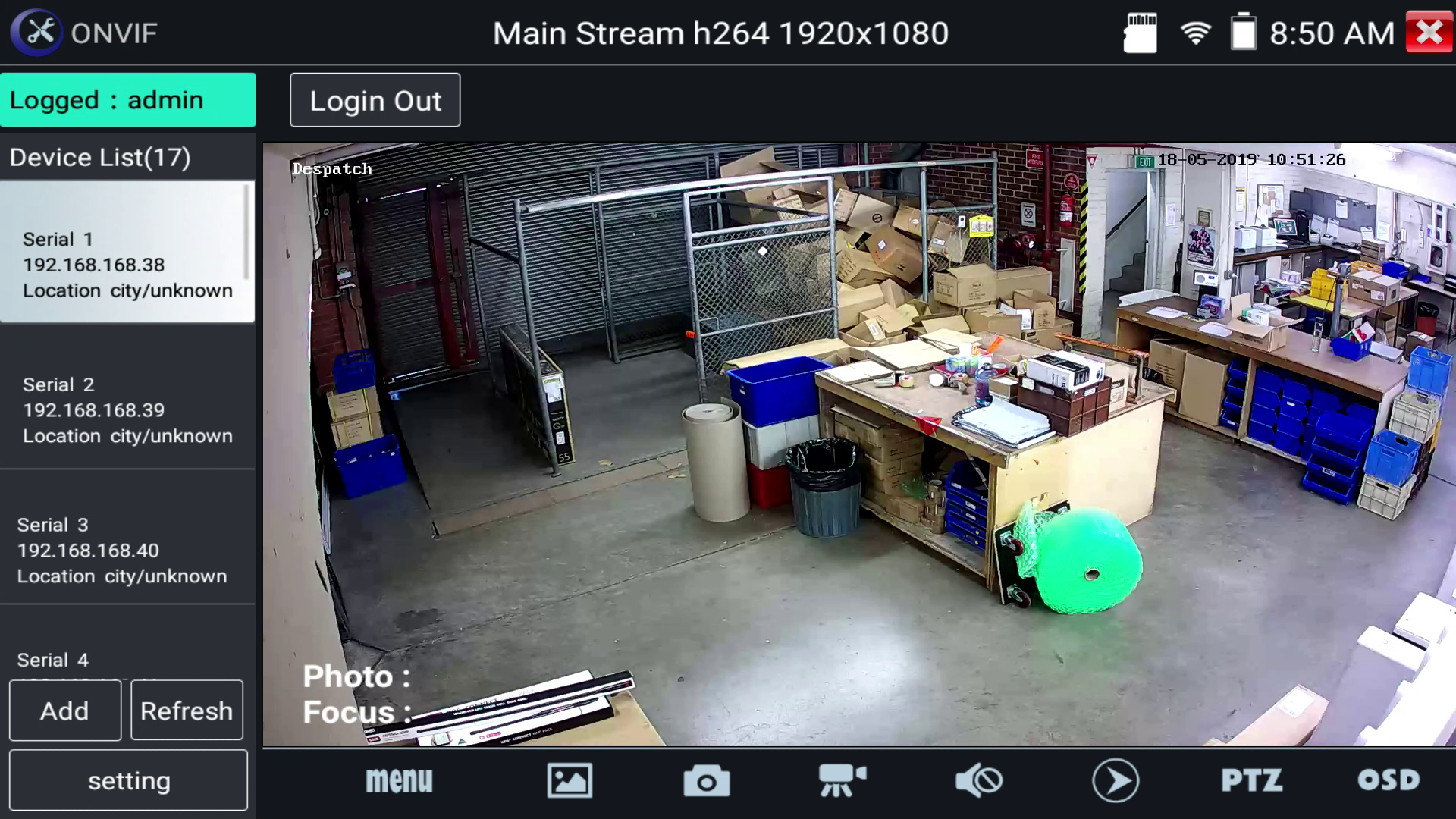

  • Rapid ONVIF, Auto log in and display image, create testing report
  • AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
  • CVBS camera test and PTZ control
  • IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)
  • DC12V/3A power output, camera can be powered from DC 12 Voltage
  • 48V PoE power output power

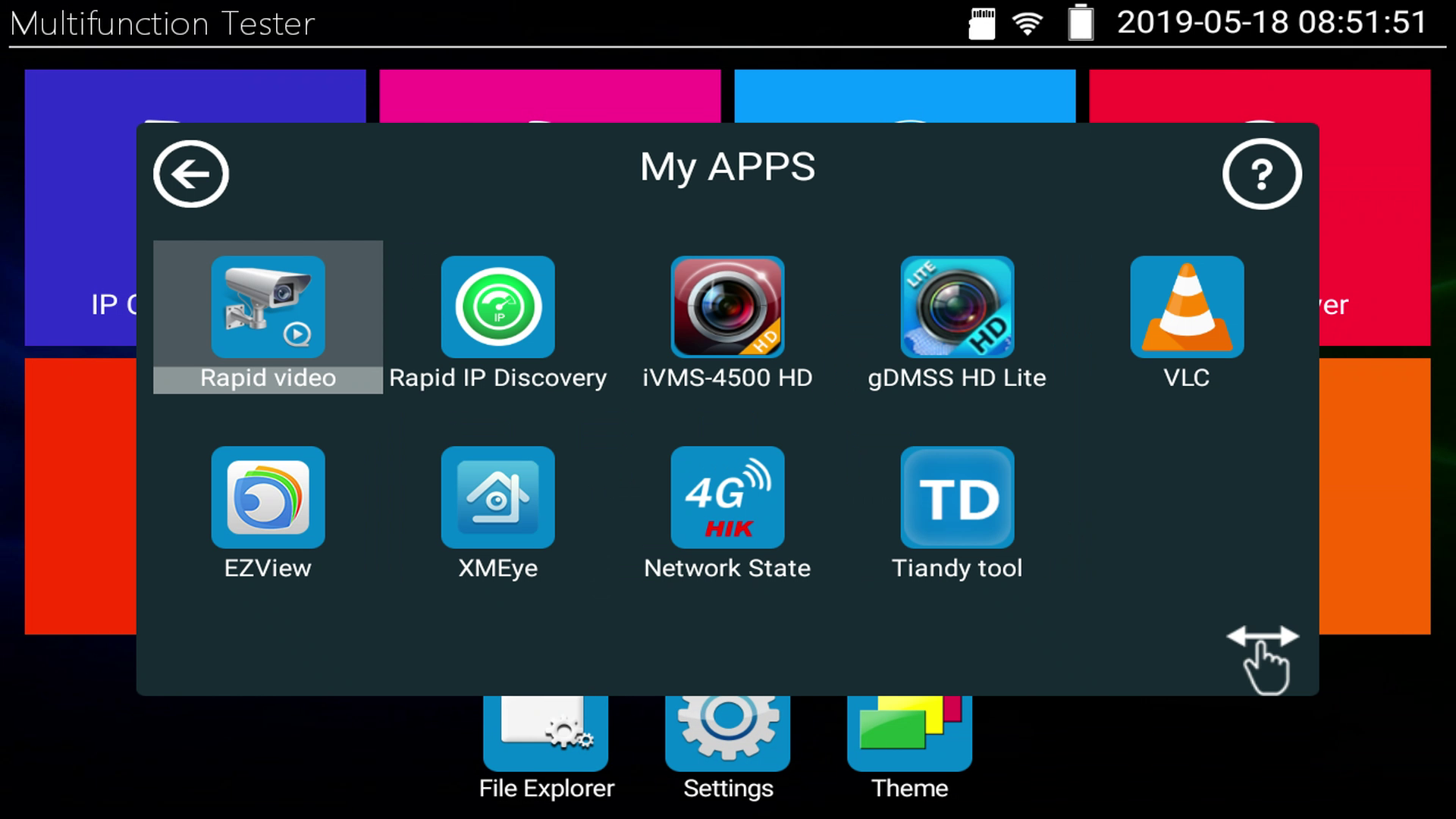

  • Rapid video, just by one key to detect all network cameras and auto display
  • Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
  • CVBS loop test, the tester send and receive Colour bar generator signal, to check BNC cable
  • Enhanced Colour bar generator, PAL/NTSC multi-system Colour bar video generator

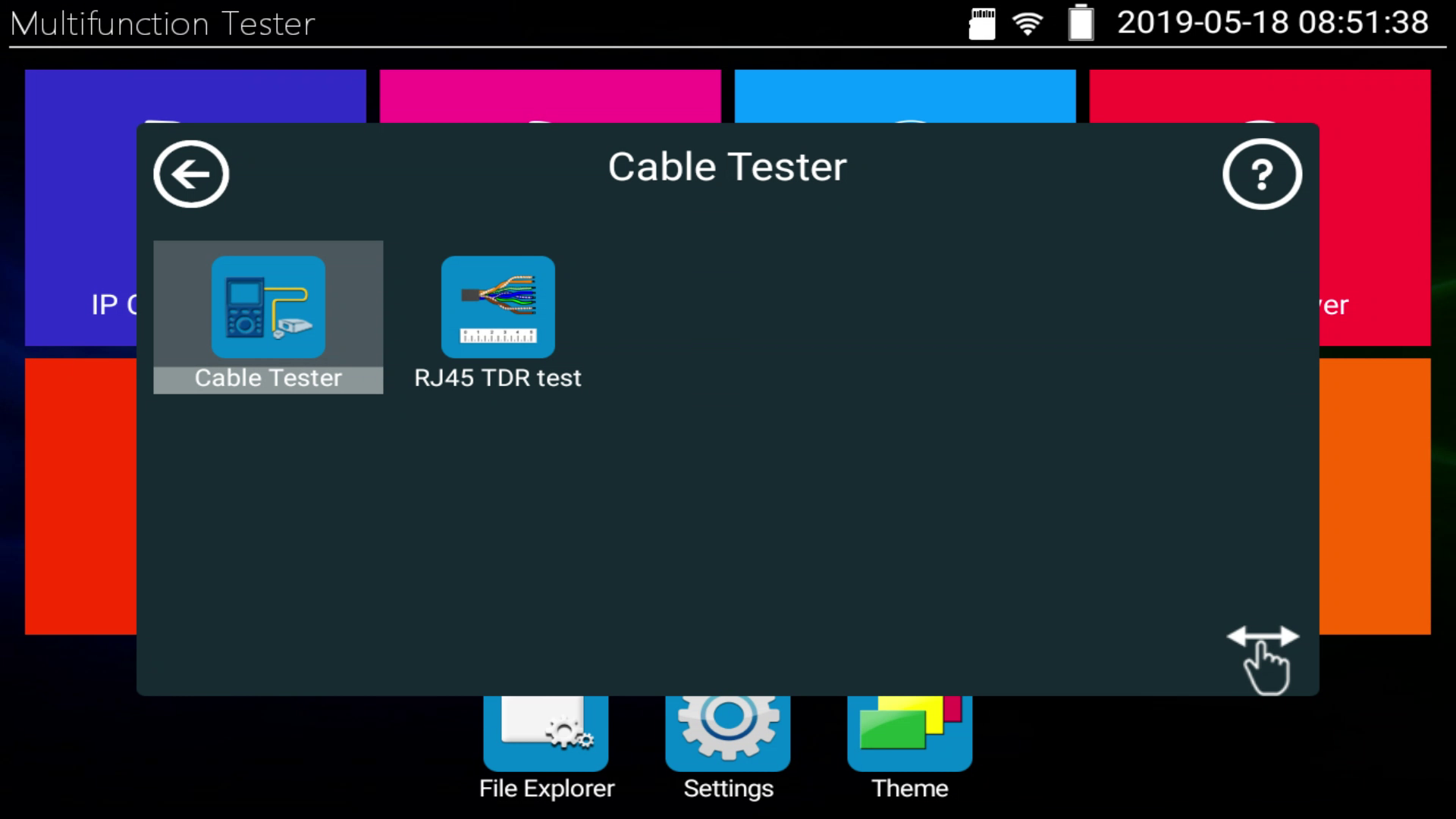

Cable tester

  • Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
  • RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

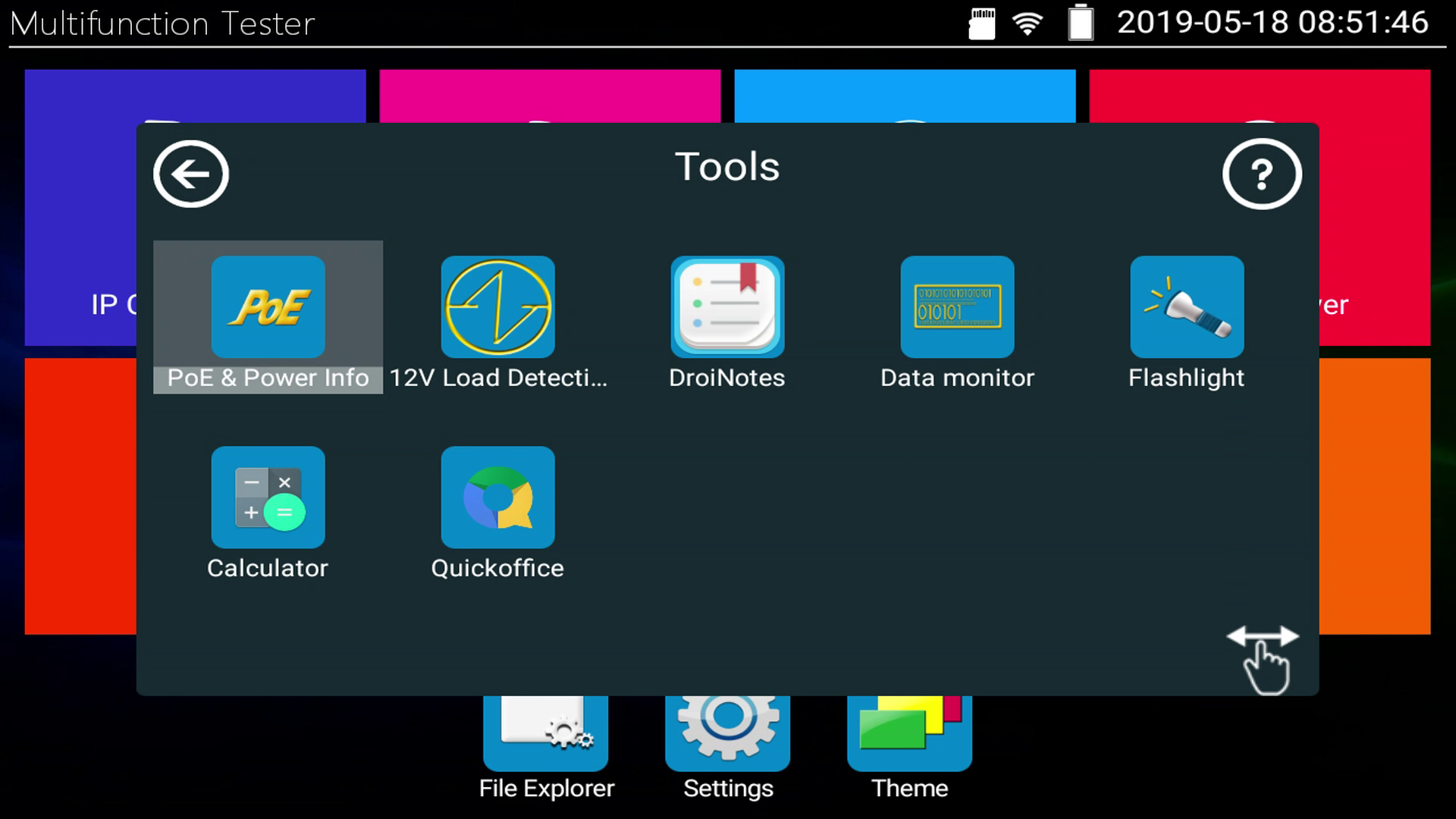

Other functions

  • Network tool: Ping, IP scan, Port Flash, DHCP
    server, Trace Route
    POE & power information, DC 12V & PoE power and voltage output/input measurement
  • Tester Play: Tester, android version mobile phone
    and PC display at the same time

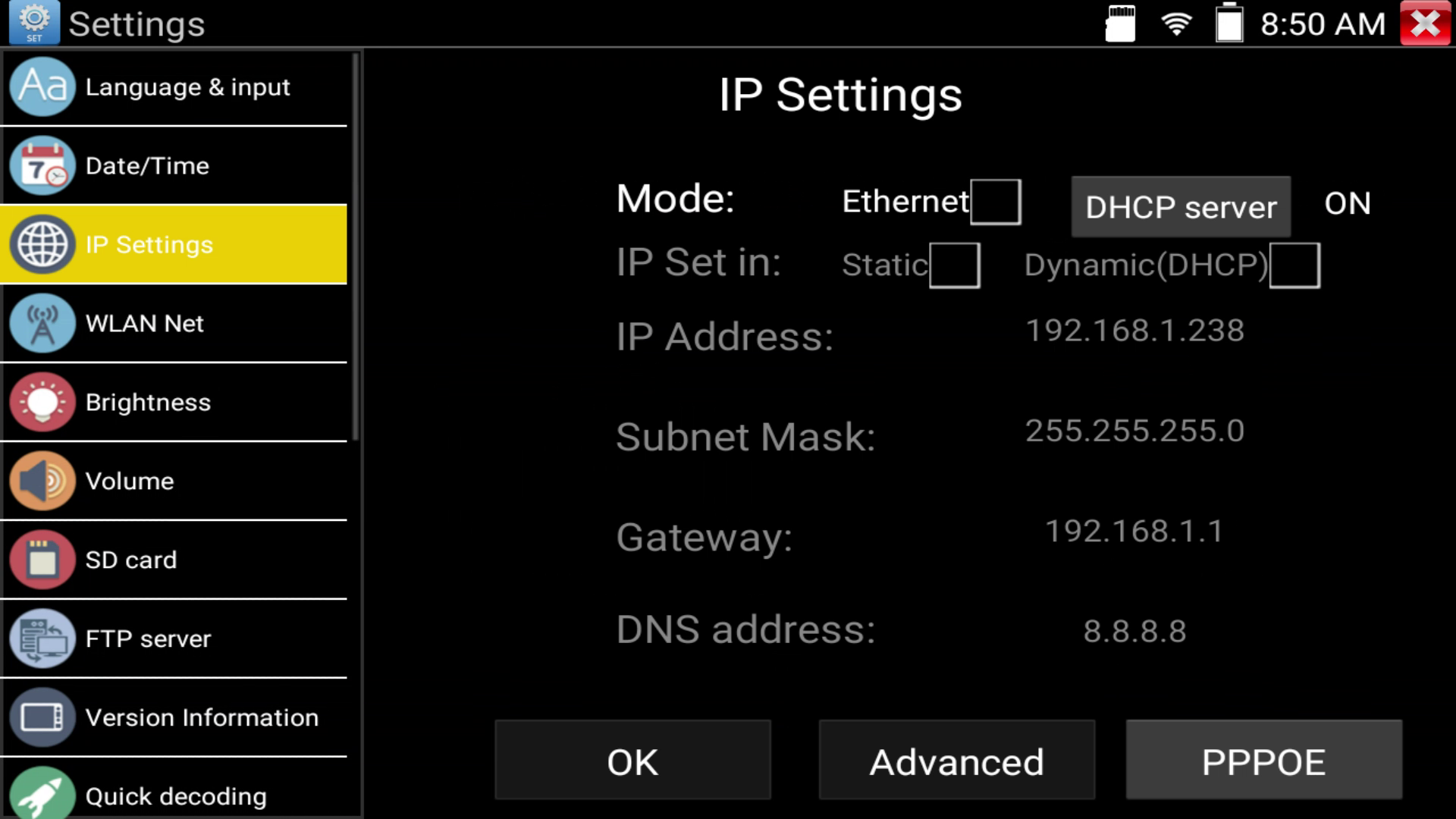

  • Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
  • HDMI input, 720×480p /720×576p /1280×720p /1920×1080p /1024×768p /1280×1024p /1280×900p /1440×900p display, record and snapshot
  • Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
  • Self-update software, you can install apps with android version
  • Media player, 4K video files and MKV/MP4 media files play
  • Quick office, quick office app (support excel, word, ppt format) doc. editable
  • Includes 8GB MicroSD card
  • Display its genuine resolution of the IP camera images
  • Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
  • 7.4V/5000mAh Lithium Ion Polymer Battery, fast charging, after 2.5 hours charging, working time lasts 10 hours



Specifications

LCD





Display

New 7 inch IPS touch screen, 1920*1080 resolution

Video Mode

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Analog video level meter, peak video signal level, SYNC signal level, Colour bar chroma level measurement*

PTZ control,RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

CVBS loop test

the tester send and receive Colour bar generator signal, check BNC cable

IP camera test
4k/H.265/H.264

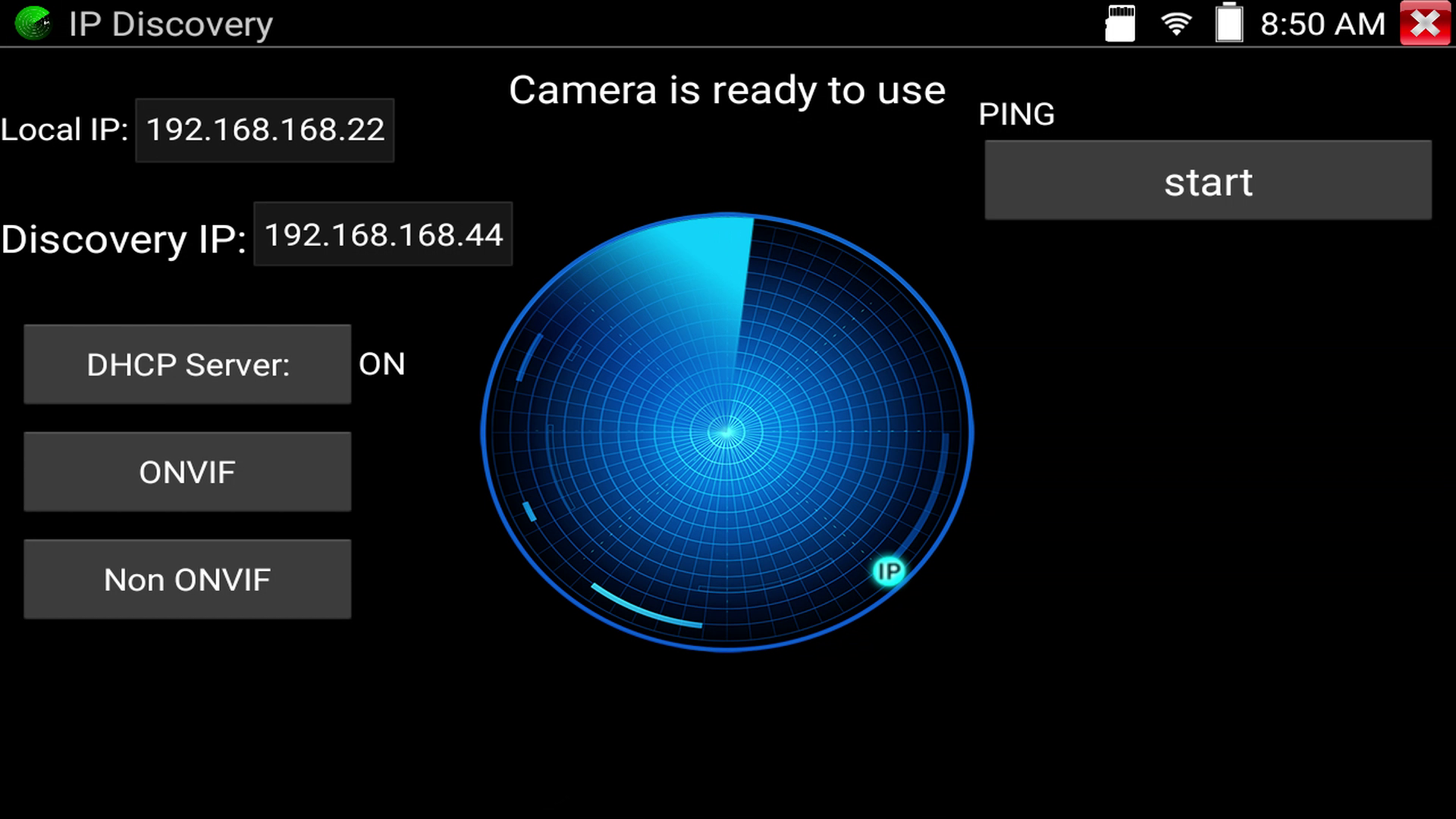

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video

Auto view the video, create testing report

Hik test tool

activate hikvision camera, modify the user name, password and IP parameters

Dahua test tool

activate Dahua camera, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time ,converter test from analog to digital with dual test window

Coaxial HD test

8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15FPS, UTC control/call OSD menu

8MP AHD test,3840 x 2160P 15FPS, UTC control/call OSD menu

8MP EX-SDI, HD-SDI, 3G-SDI, UTC control/call OSD menu

HDMI input

1 channel HDMI input, support 1080P

Zoom Image

4x zoom to enlarge image, Screen snapshot, record, save, view, record and play back

Analog Video out

Colour bar generator

Output one channel PAL/NTSC Colour bar video signal for testing monitor or video cable



Power output

PoE power output

48V PoE power output, max. power 25.5W

DC12V power

DC12V/3A power output

Cable test

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 cable TDR test

Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180m

TesterPlay

screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor , DHCP server, port flashing , Ping test

Wi-Fi

Built in WIFI,speeds150M,display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device,also can send hexadecimal

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select PoE power switch, IP setting,CVBS, LAN info, HDMI IN functions etc in any interface

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium polymer battery, 5000mAh

Rechargeable

Fast charging, after charging 2.5 hours, normal working time 10hours

Operation setting

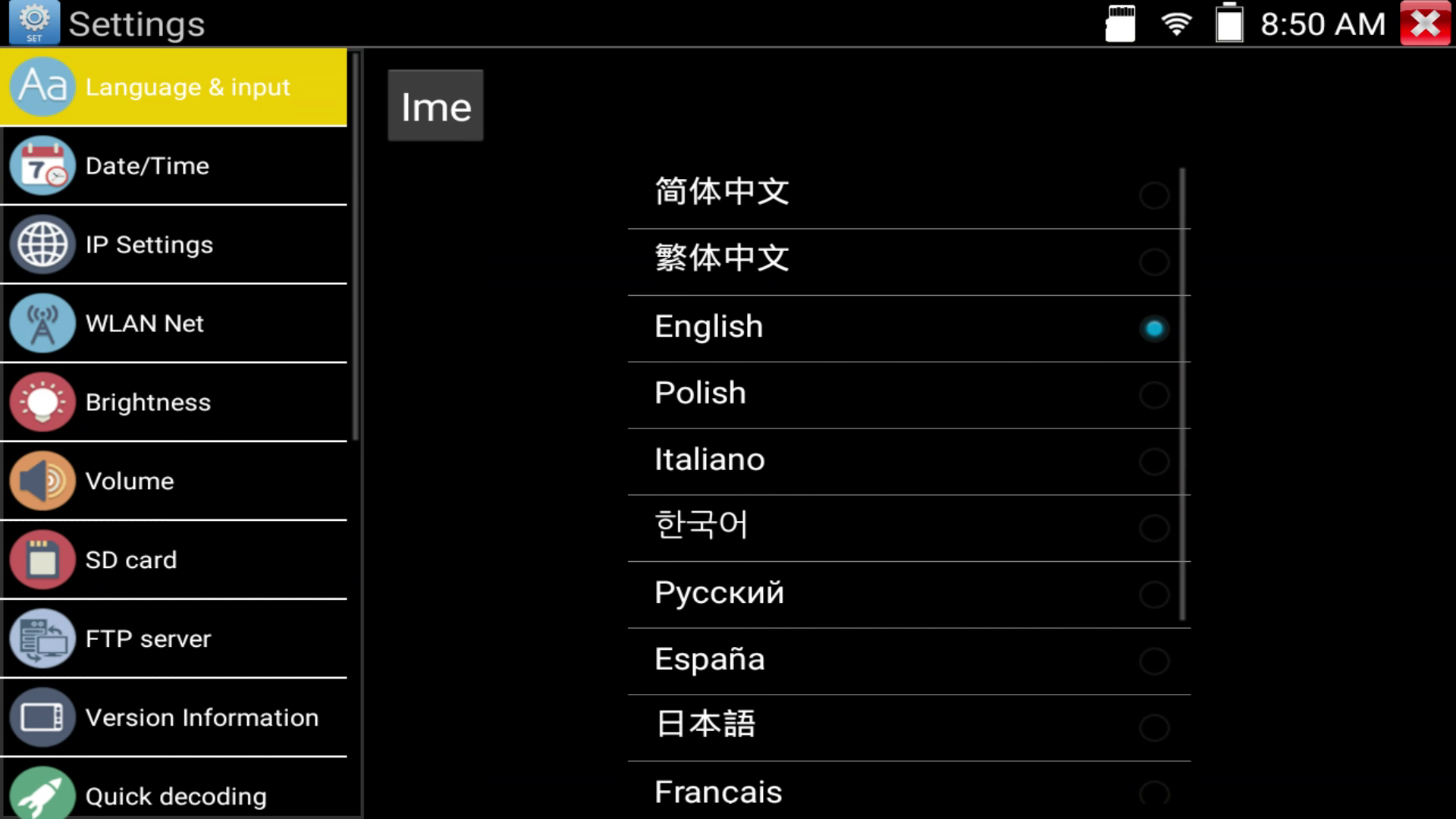

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

1-30 (mins)

Working Temperature

-10°~+50°

Working Humidity

30%-90%

Dimension/Weight

240mm x 154mm x 46mm / 620g

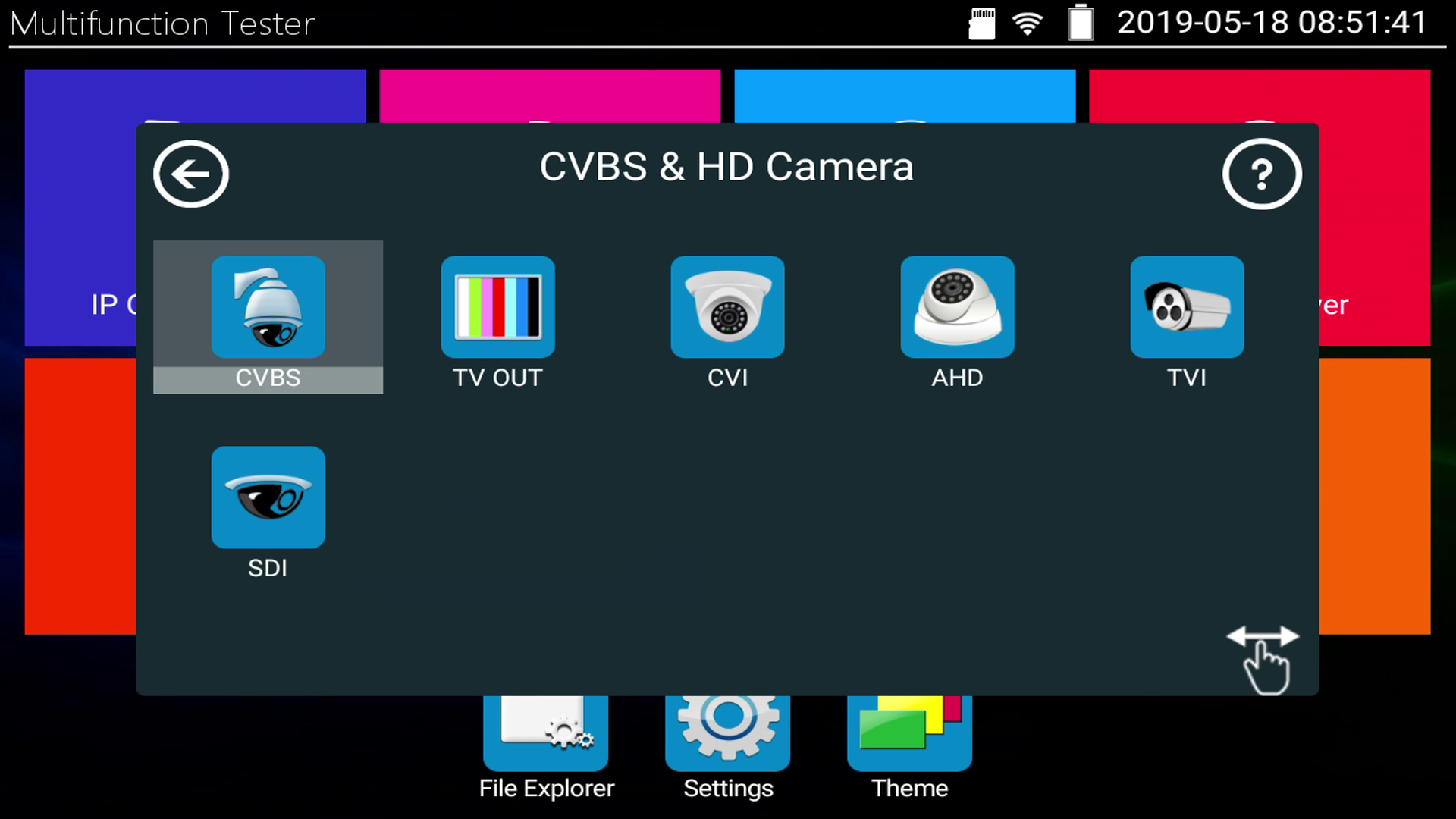

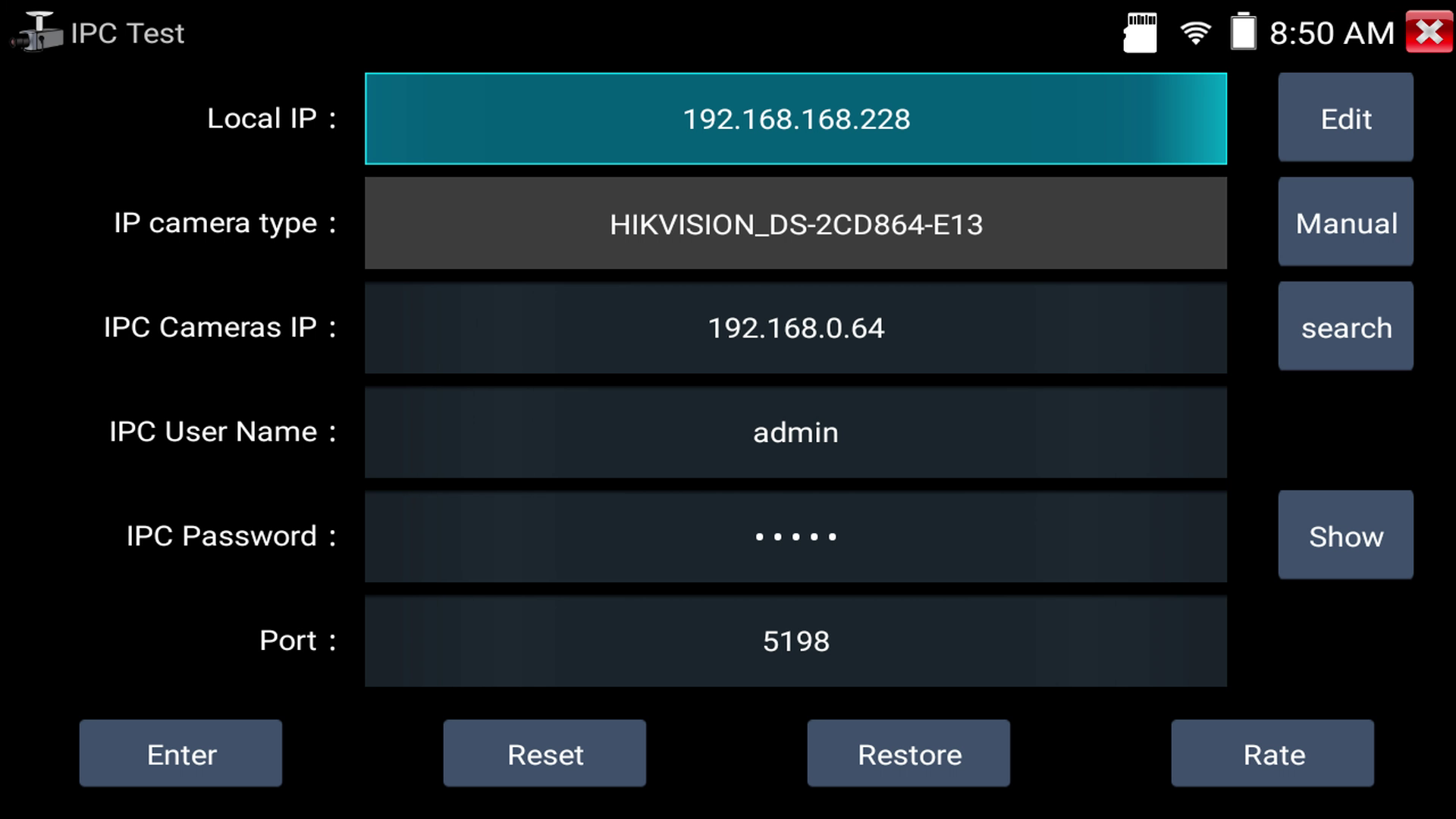

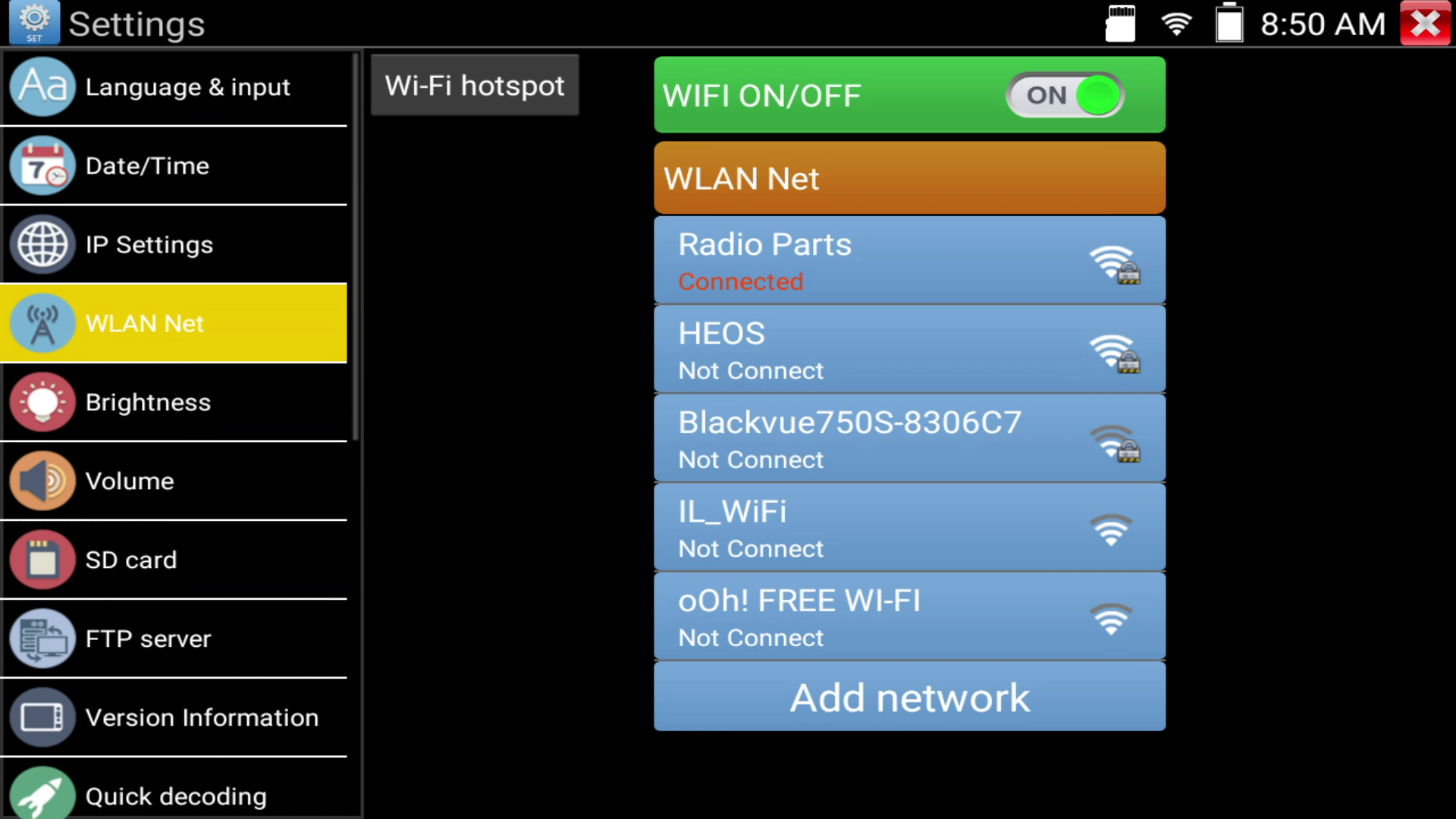

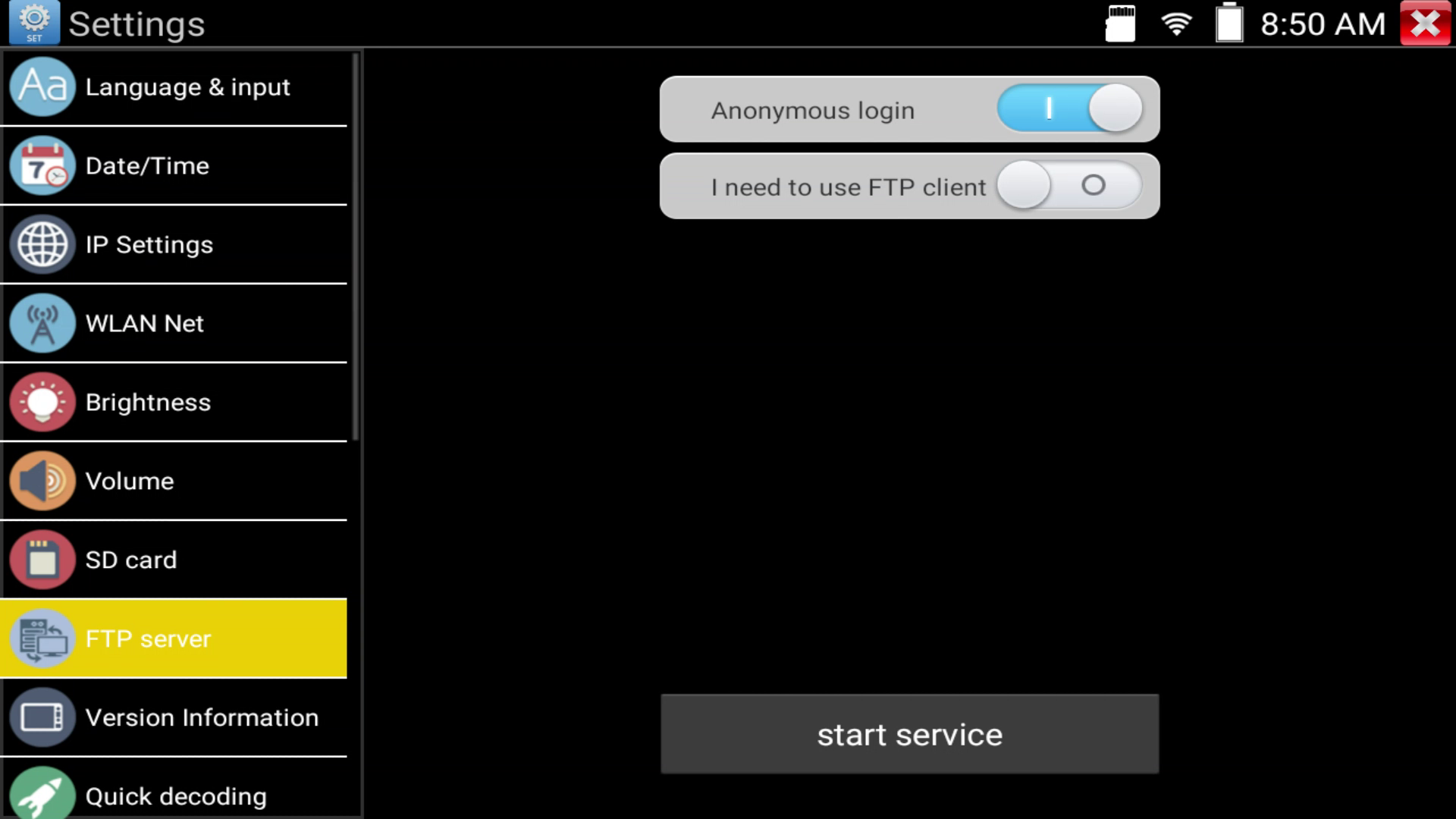

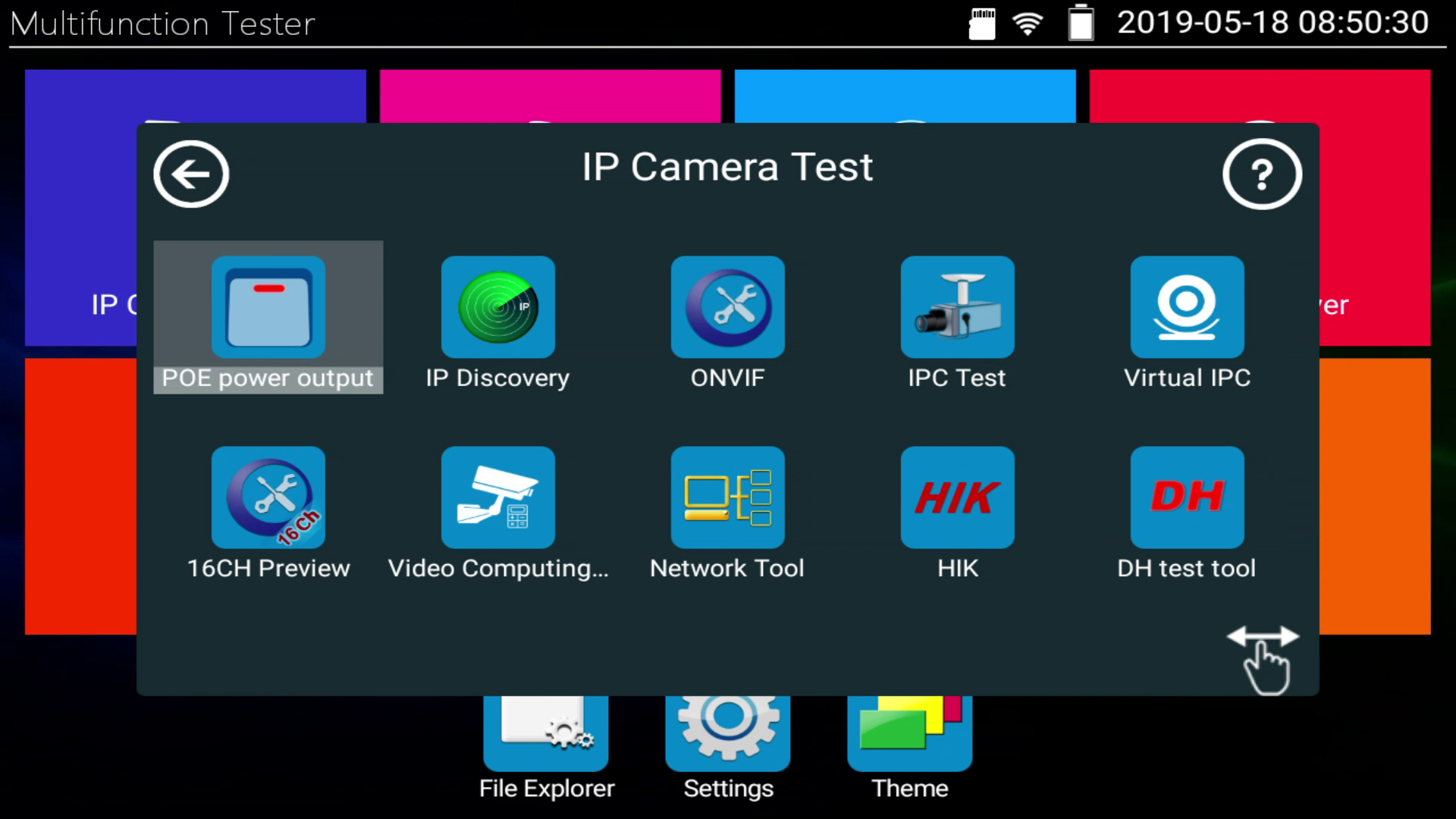

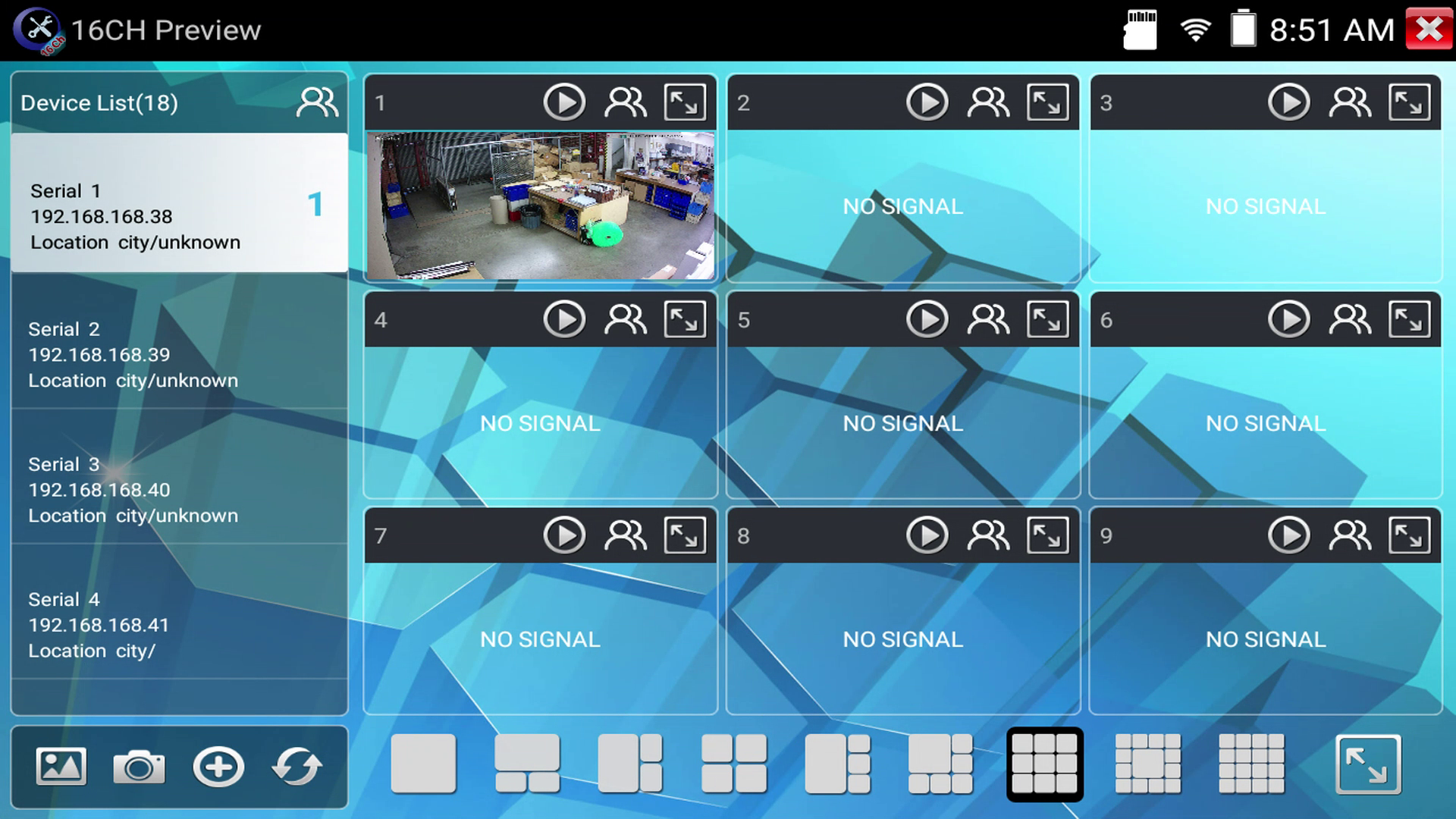

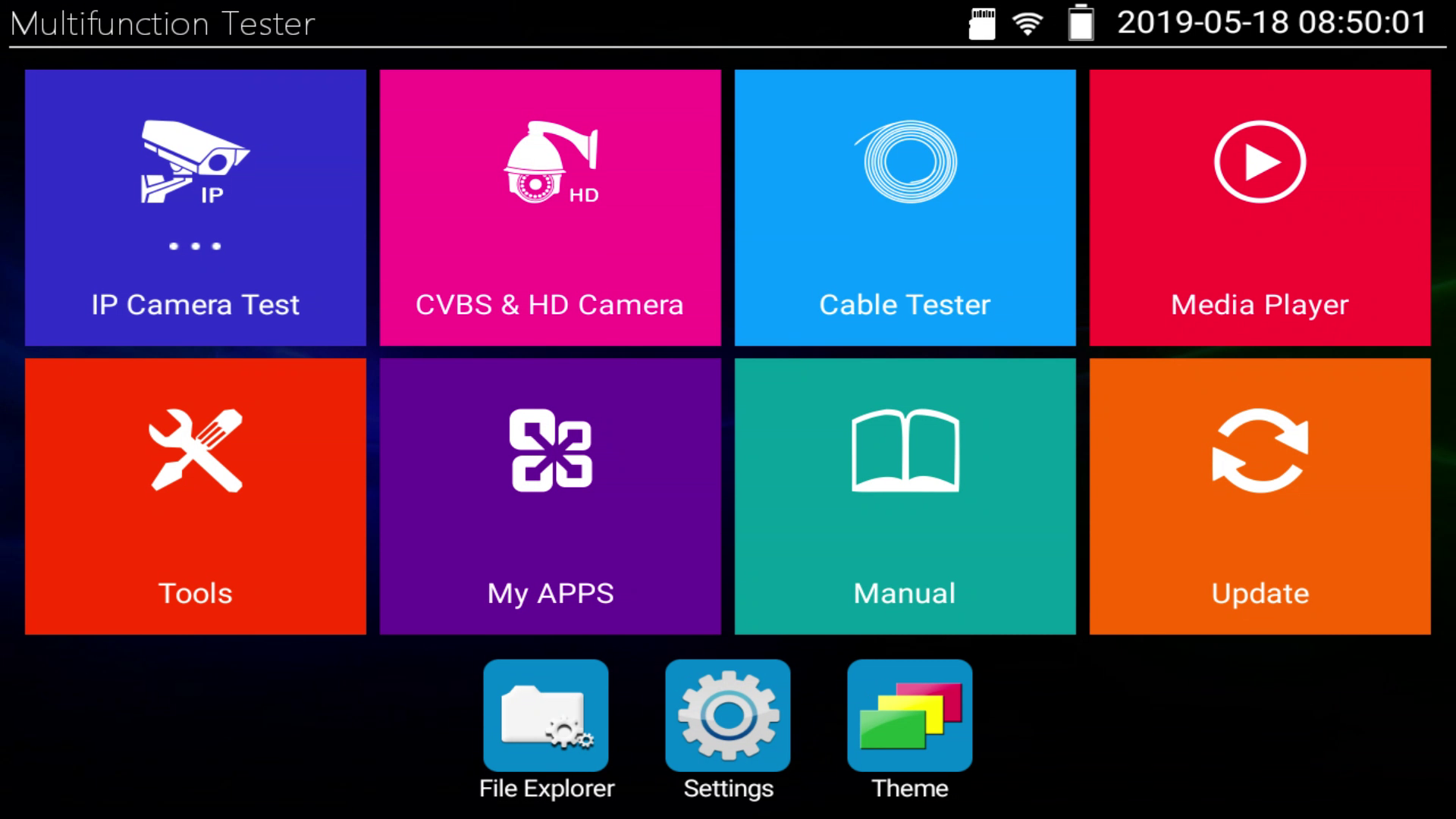

Screenshots
