UHF401 TWO MIC PLL WIRELESS UPGRADABLE RECEIVER

UHF401 TWO MIC PLL WIRELESS UPGRADABLE RECEIVER

Additional Images

2873410028734100

Downloads


DOSS Public Address 2013 Range Sell Sheet

Features

  • Diversity
  • Tone control squelch
  • Working range adjustable
  • Full metal design
  • LED display
  • 120 channels selectable
    • Group and channel selectable
  • Frequency display
  • Battery level display
  • Upgradable: 2x Receivers pre-installed; 2x empty bays for extra (optional) receivers



In the kit

  • Receiver Unit
  • 2x Rack-mount brackets with screws
  • 2x Antenna
  • 1x 6.3mm Mono Cable
  • 20VDC / 1200mA Power Adaptor
  • Instruction Manual

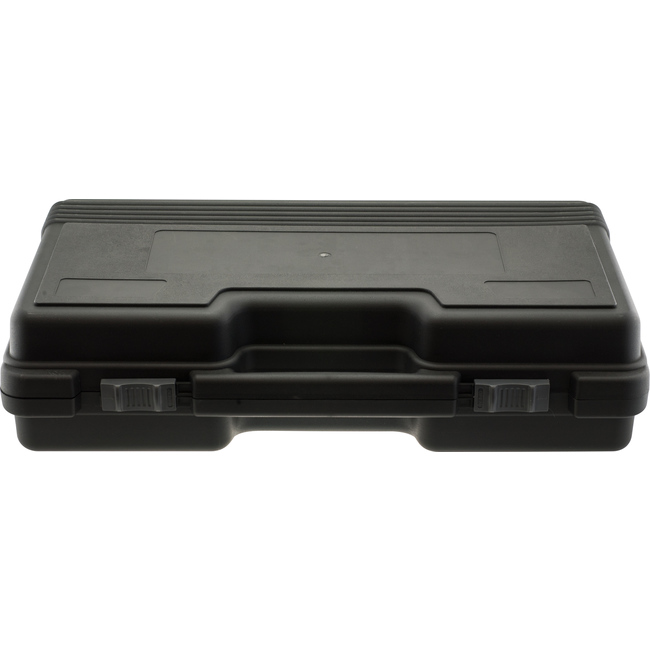

  • Carry case



Specifications

System
Carrier frequency UHF 654-694 MHz
Stability ± 0.005% (at 25°C)
Ambient temperature -10°C ~ +50°C
Max deviation ± 70KHz with level limiting
Dynamic range 110dB
S/N ratio >110dB
T.H.D. >0.5%
Pre/De-Emphasis 50µs
Squelch Tone control and noise lock dual squelch
Frequency response 30Hz – 20KHz
Operating range 100m (approximately 300′) under typical conditions
Receiver
Receiving mode Diversity (Dual Antenna)
Sensitivity >-107dB
Image rejection Over 80dB

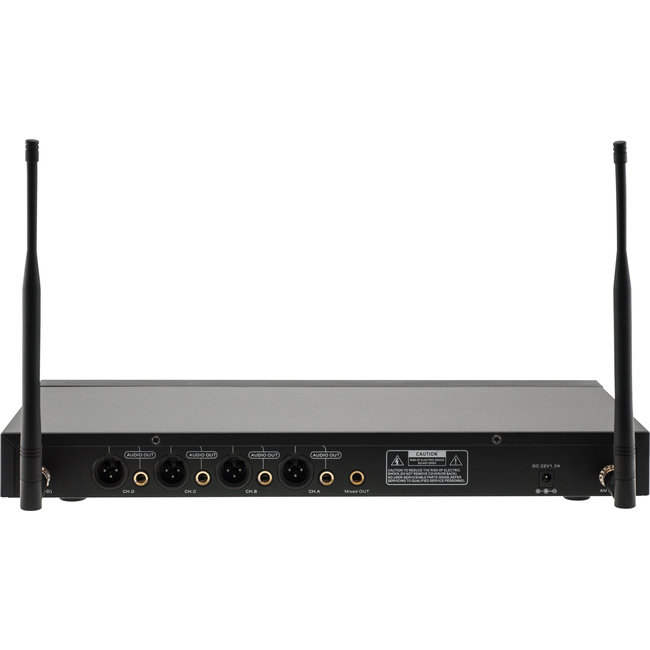

Audio output Balanced and Unbalanced
Power requirement

AC 110-120V/220-240V (50-60Hz)
External 22VDC / 800mA

Dimensions(D x W x H) 235 x 420 x 45 mm
Weight Approx.2.9kg
